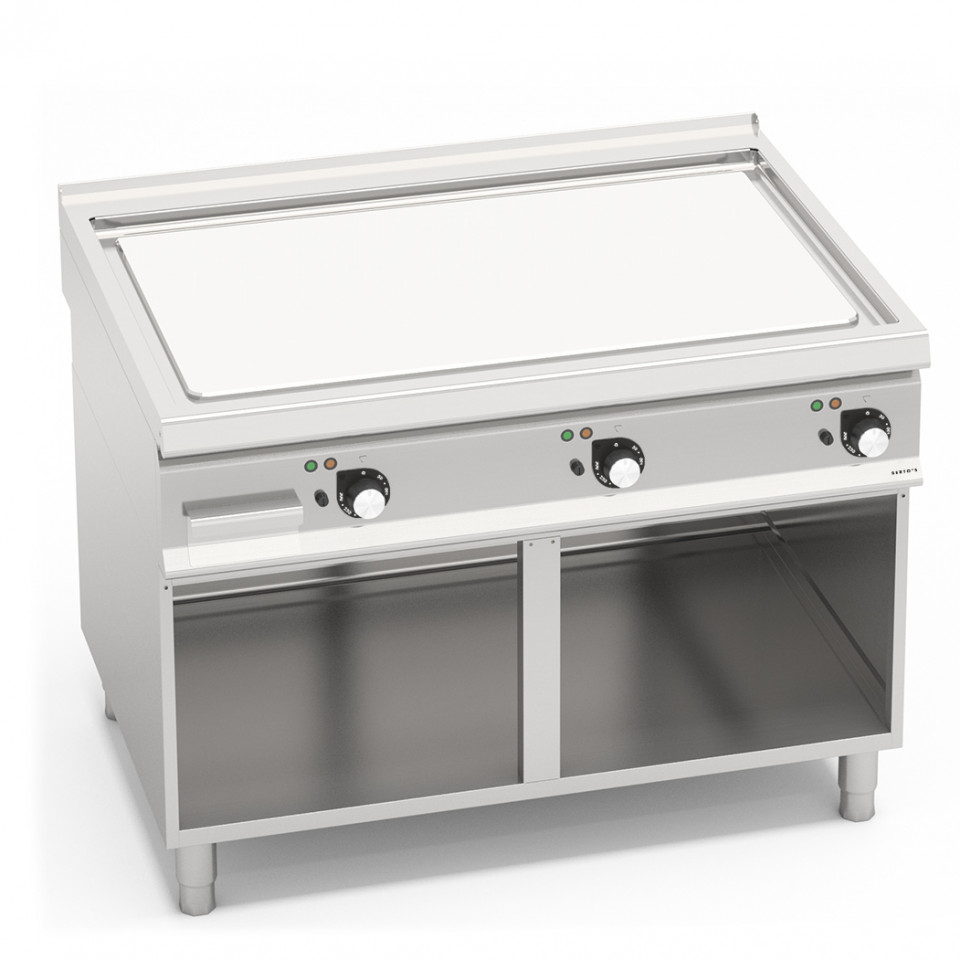

SMOOTH ELECTRIC GRIDDLE (COMPOUND)
Download the image
GRIDDLES - S900

SMOOTH ELECTRIC GRIDDLE (COMPOUND)

Model SE9FL12P-3/CPD
Code 13409600
Worktop from AISI 304 stainless steel of 20/10 thickness, front and side panels from AISI 304 stainless steel and Scotch Brite finishing. Incoloy stainless steel resistances positioned below the cooking plate. Thermostatic control and safety thermostat with manual restart. Temperature regulation from 50 to 270 °C. Pilot light and temperature indicator light.
High thickness smooth plate. Two zones with separate controls for an independent and perfect regulation of temperature.
Three zones with separate controls for independent and optimal temperature regulation.
A two-component 18mm cooking plate, which combines a steel plate to optimize heat transmission and uniformity with a 3mm top layer of AISI 316 polished stainless steel for easy cleaning and low level of radiation, for greater operator comfort. A large drain hole and conveyor to a proper sealed container. Large compartment completely in steel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 19.8
Electrical voltage 380-415 V3N
Measurements
Width 1200
Depth 900
Height 900
Weight 195
Volume 0.97
Package
Package width 1290
Package depth 1080
Package height 1250
Package weight 202
Package volume 1.74

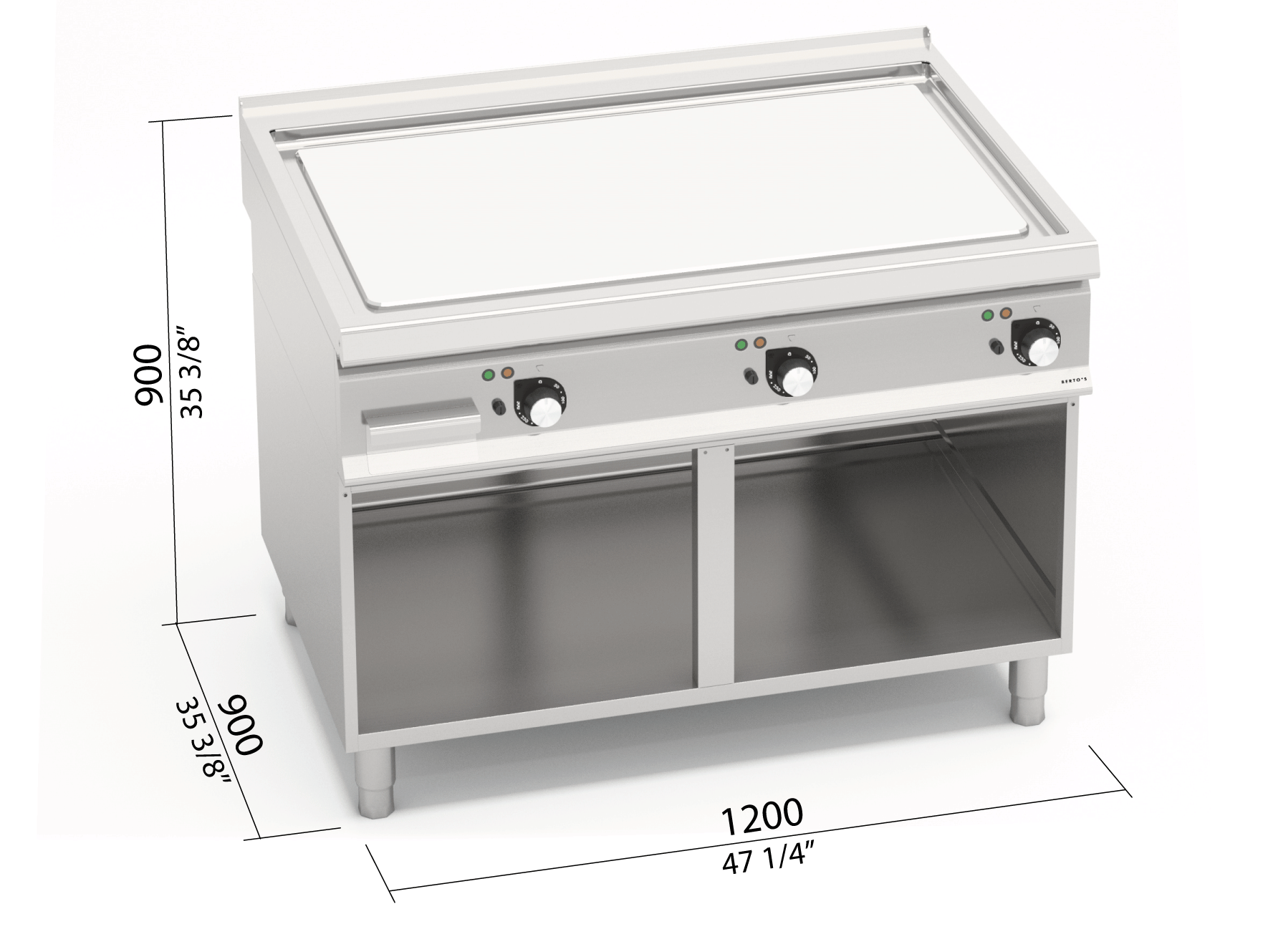

Dimensions

Dimensions
