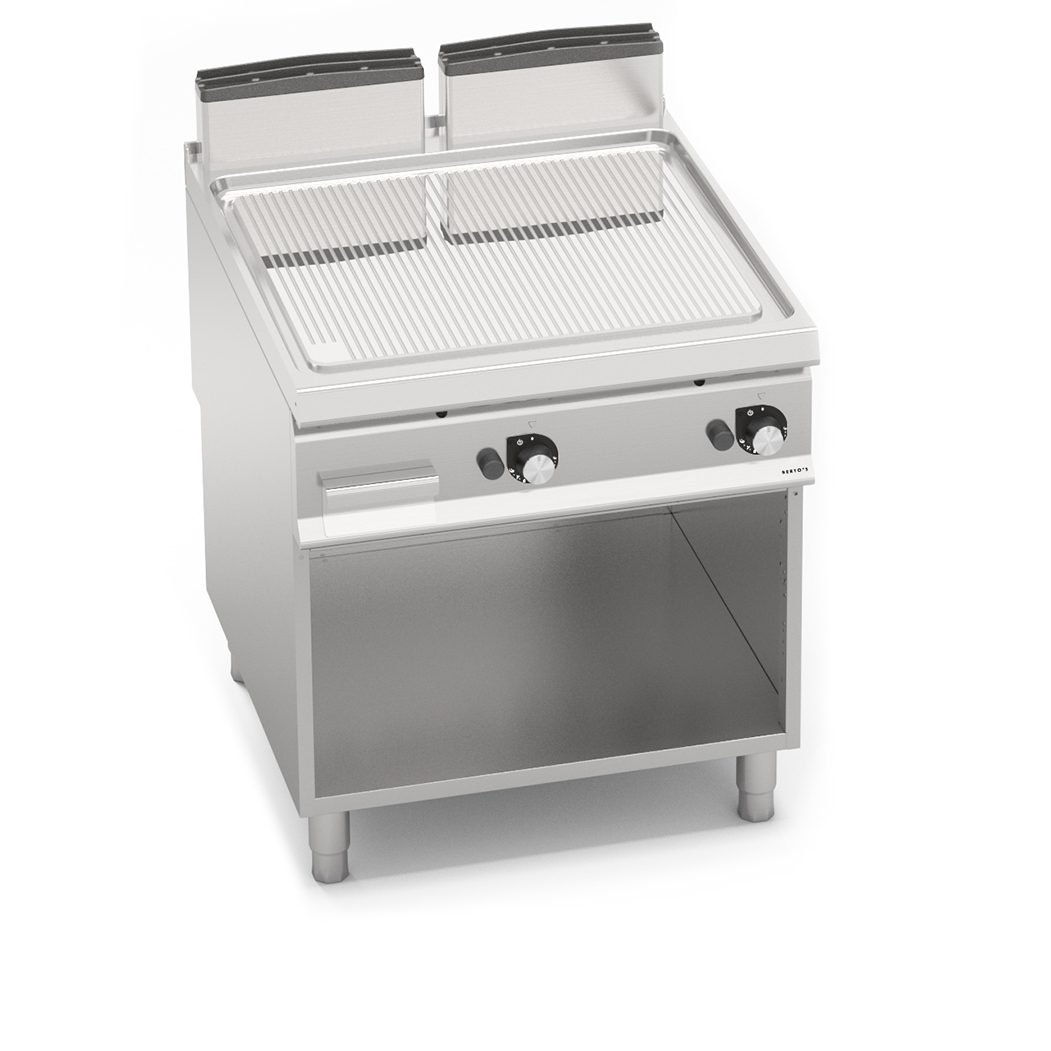

RIBBED GAS GRIDDLE (COMPOUND) ON CABINET
Download the image
GRIDDLES - S900

RIBBED GAS GRIDDLE (COMPOUND) ON CABINET

Model SG9FR8M-2/CPD
Code 13302600
Worktop from AISI 304 stainless steel of 20/10 thickness, front and side panels from AISI 304 stainless steel and Scotch Brite finishing. Tubular burners with self-stabilized flame of a large surface for a greater uniformity of heat distribution. Regulation of the supplied power by a continuous operation tap. Pilot flame and thermocouple safety valve. Piezoelectric ignition with rubber protection. Maximum temperature over 300° C. High thickness ribbed plate occupying the entire worktop surface with flush splashguard. Two zones with separate controls for an independent and perfect regulation of temperature. Dual component cooking plate that combines a steel slab, to optimize uniformity, and an upper coating in AISI 316 stainless steel with a polished finish that allows easy cleaning and a low level of irradiation giving higher comfort to the operator. Slightly inclined cooking surface with a large drain hole and conveyor to a proper sealed container. Large compartment completely in steel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total gas kW 20
Measurements
Width 800
Depth 900
Height 900
Weight 134
Volume 0.65
Package
Package width 865
Package depth 1080
Package height 1180
Package weight 152
Package volume 1.1

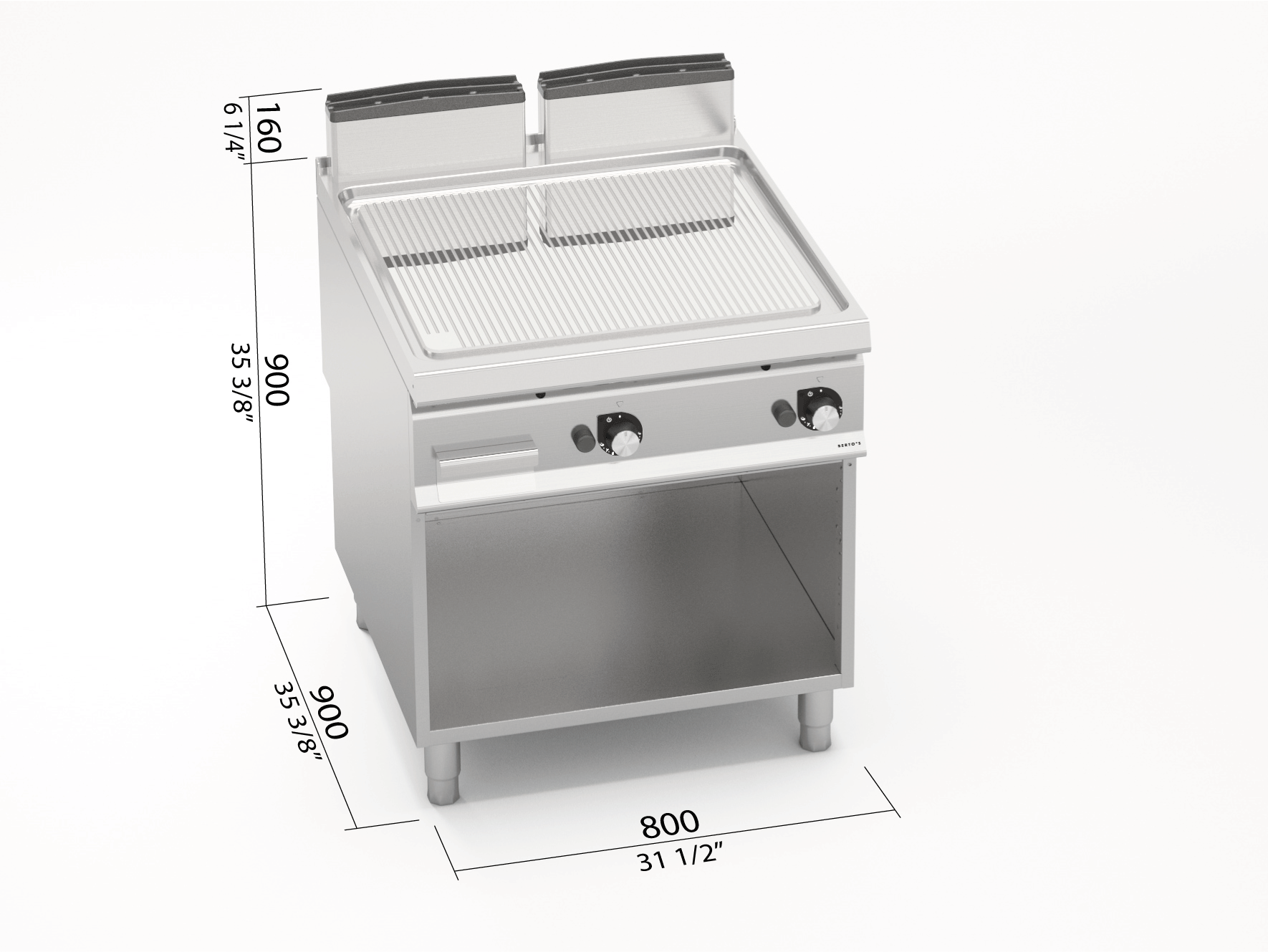

Dimensions

Dimensions
