GRIDDLES - S900

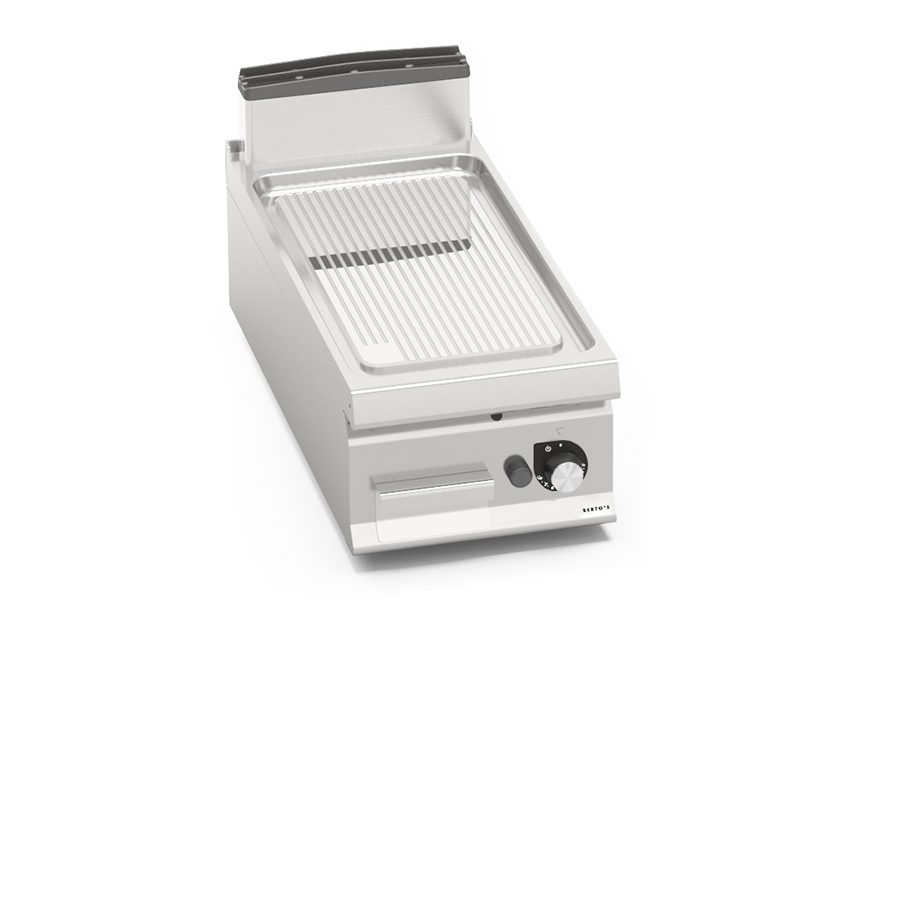

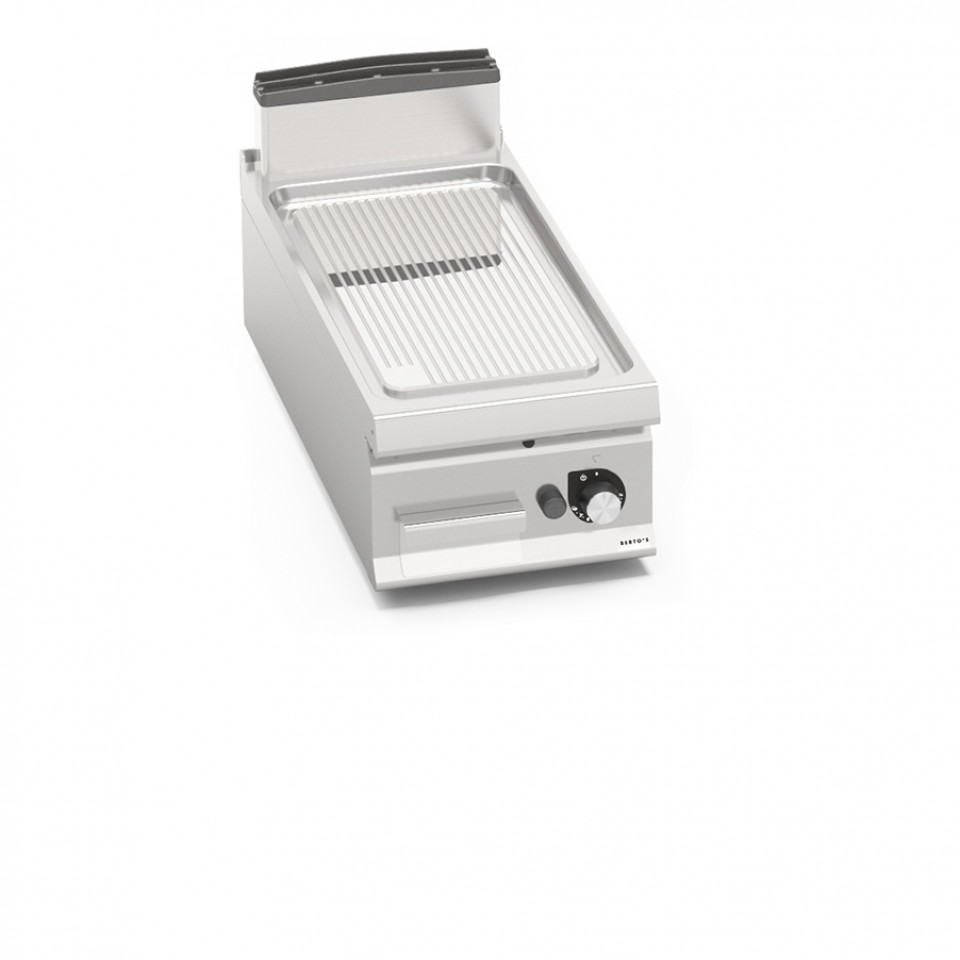

RIBBED GAS GRIDDLES (COMPOUND)

Model LXG9FR4/CPD
Code 13301400
Worktop from AISI 304 stainless steel of 20/10 thickness, front and side panels from AISI 304 stainless steel and Scotch Brite finishing. Tubular burners with self-stabilized flame of a large surface for a greater uniformity of heat distribution. Regulation of the supplied power by a continuous operation tap. Pilot flame and thermocouple safety valve. Piezoelectric ignition with rubber protection. Maximum temperature over 300° C. Very thick grooved plate with rounded edges, surrounded with a drain duct for cooking residues. Dual component cooking plate that combines a steel slab to optimize uniformity and an upper coating in AISI 316 stainless steel with a polished finish that allows easy cleaning and low level of irradiation giving higher comfort to the operator. Large drain hole and conveyor to a proper sealed container.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total gas kW 10
Measurements
Width 400
Depth 900
Height 300
Weight 52
Volume 0.11
Package
Package width 480
Package depth 1090
Package height 680
Package weight 63
Package volume 0.36

Dimensions

Dimensions
