GRIDDLES - S900

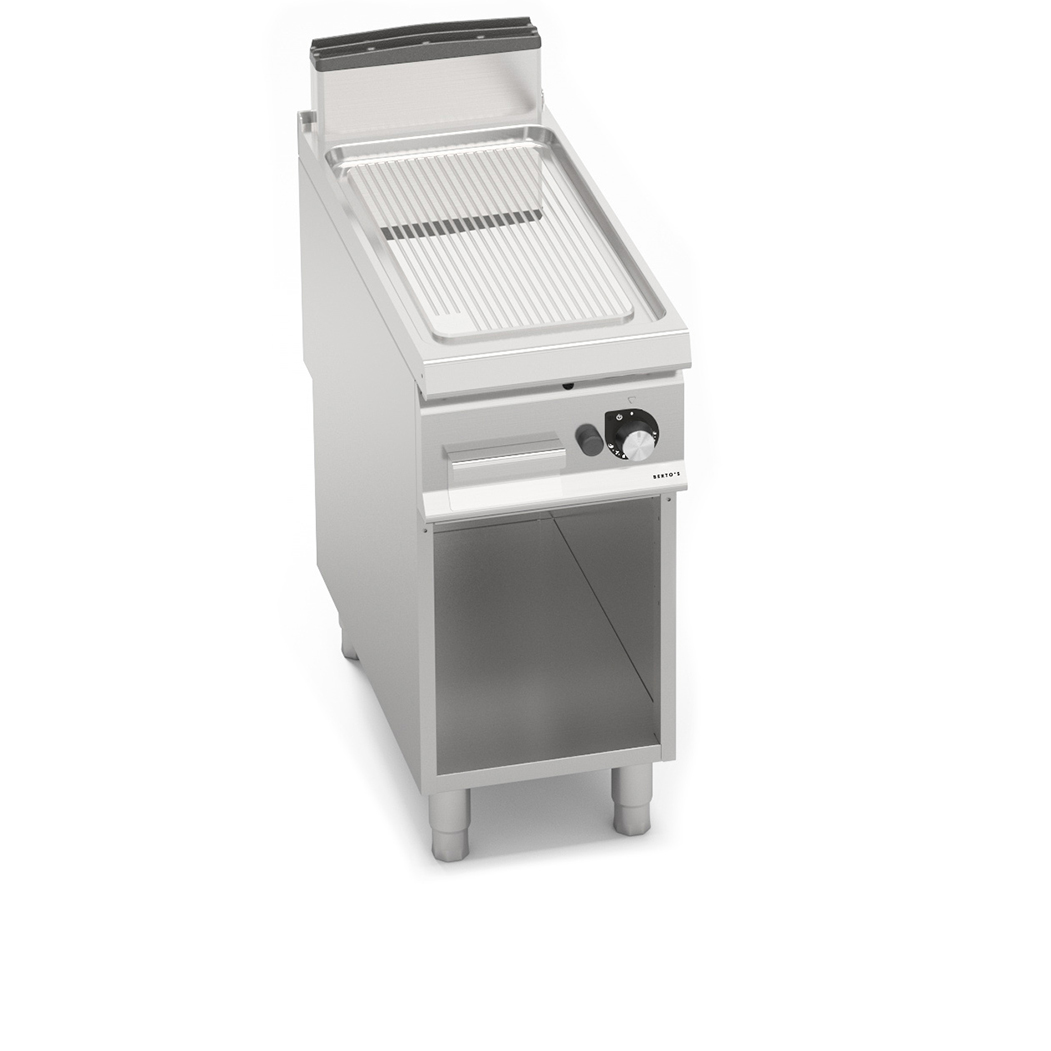

RIBBED GAS GRIDDLE (COMPOUND) ON CABINET

Model SG9FR4M/CPD
Code 13301900
Worktop from AISI 304 stainless steel of 20/10 thickness, front and side panels from AISI 304 stainless steel and Scotch Brite finishing. Tubular burners with self-stabilized flame of a large surface for a greater uniformity of heat distribution. Regulation of the supplied power by a continuous operation tap. Pilot flame and thermocouple safety valve. Piezoelectric ignition with rubber protection. Maximum temperature over 300° C. High thickness Ribbed plate occupying the entire worktop surface of high thickness and flush splashguard. Dual component cooking plate that combines a steel slab to optimize uniformity and an upper coating in AISI 316 stainless steel with a polished finish that allows easy cleaning and a low level of irradiation giving higher comfort to the operator. Slightly inclined cooking surface with a large drain hole and conveyor to a proper sealed container. Large compartment completely in steel.

Technical specifications

Technical specifications

Details
total gas kW 10
Measurements
Width 400
Depth 900
Height 900
Weight 69
Volume 0.32
Package
Package width 480
Package depth 1090
Package height 1270
Package weight 82
Package volume 0.66

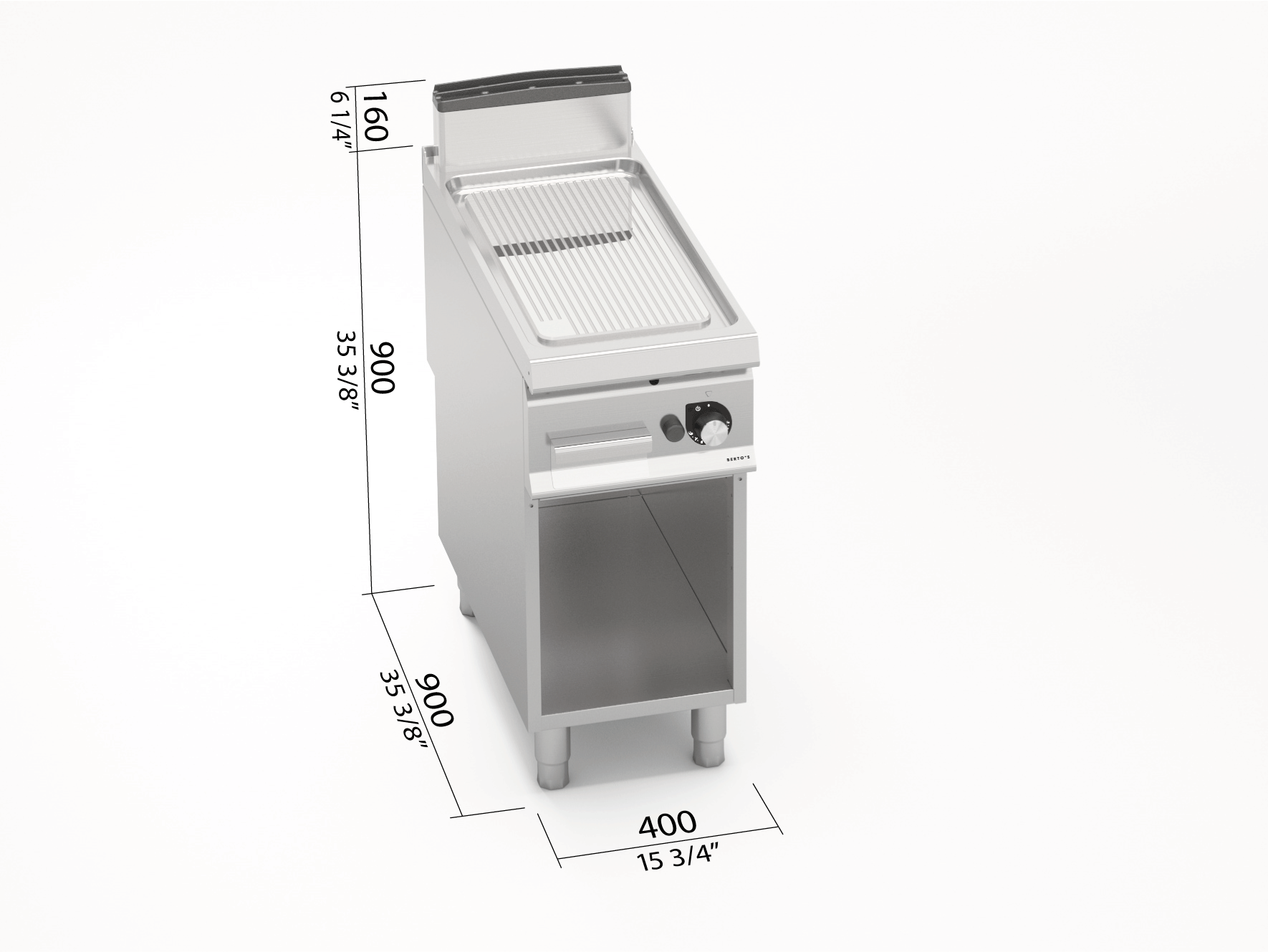

Dimensions

Dimensions
