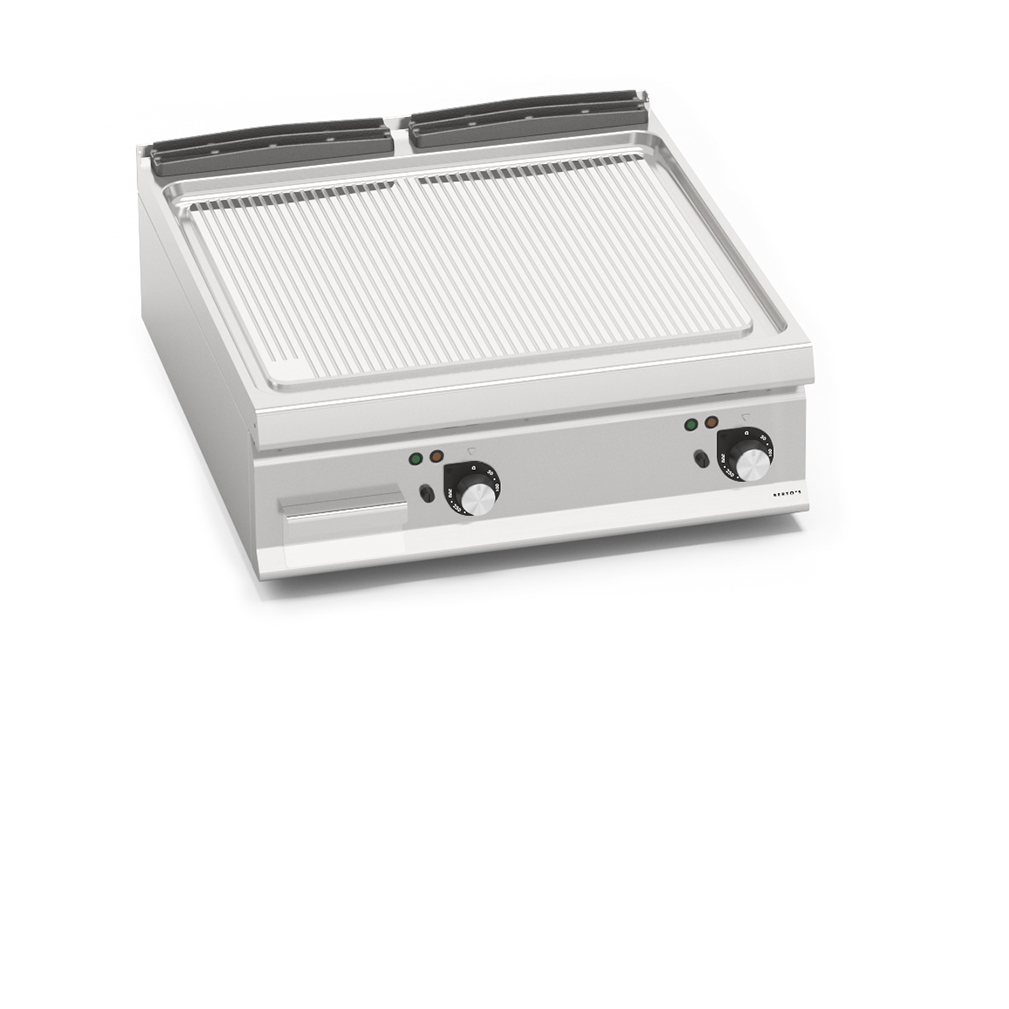

GROOVED ELECTRIC GRIDDLE (COMPOUND)
Download the image
GRIDDLES - S900

GROOVED ELECTRIC GRIDDLE (COMPOUND)

Model LXE9FR8P-2/CPD
Code 13402400
Worktop from AISI 304 stainless steel of 20/10 thickness, front and side panels from AISI 304 stainless steel and Scotch Brite finishing. Incoloy stainless steel resistances positioned below the cooking plate. Thermostatic control and safety thermostat with manual restart. Temperature regulation from 50° C to 270° C. Pilot light and temperature indicator light. High thickness grooved plate occupying the entire worktop surface with flush splashguard. Two zones with separate controls for an independent and perfect regulation of temperature. Dual component cooking plate that combines a steel slab to optimize uniformity and an upper coating in AISI 316 stainless steel with a polished finish that allows easy cleaning and a low level of irradiation giving higher comfort to the operator. Slightly inclined cooking surface with a large drain hole and conveyor to a proper sealed container.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 13.2
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 900
Height 300
Weight 101
Volume 0.22
Package
Package width 860
Package depth 1070
Package height 680
Package weight 118
Package volume 0.63

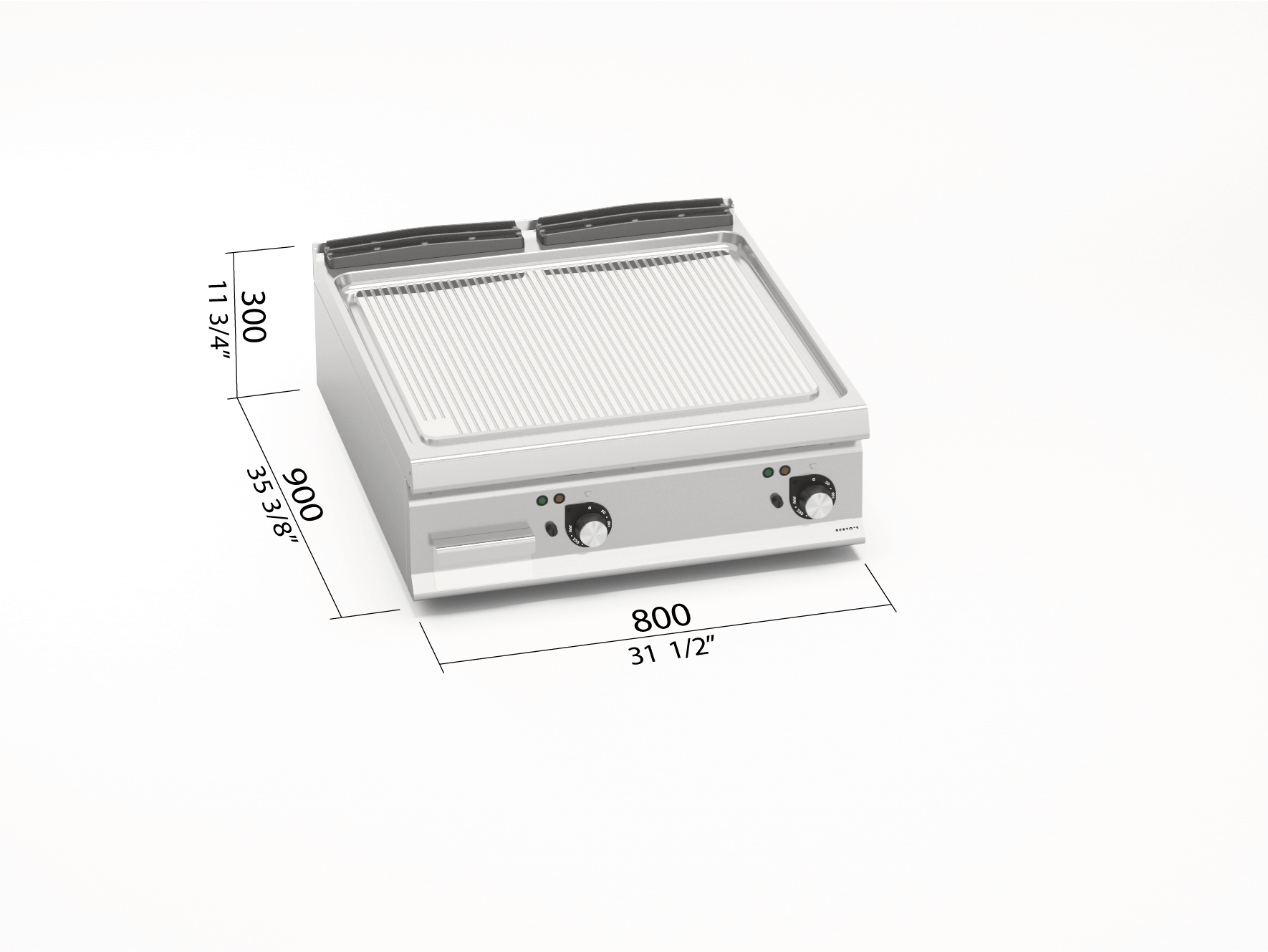

Dimensions

Dimensions
