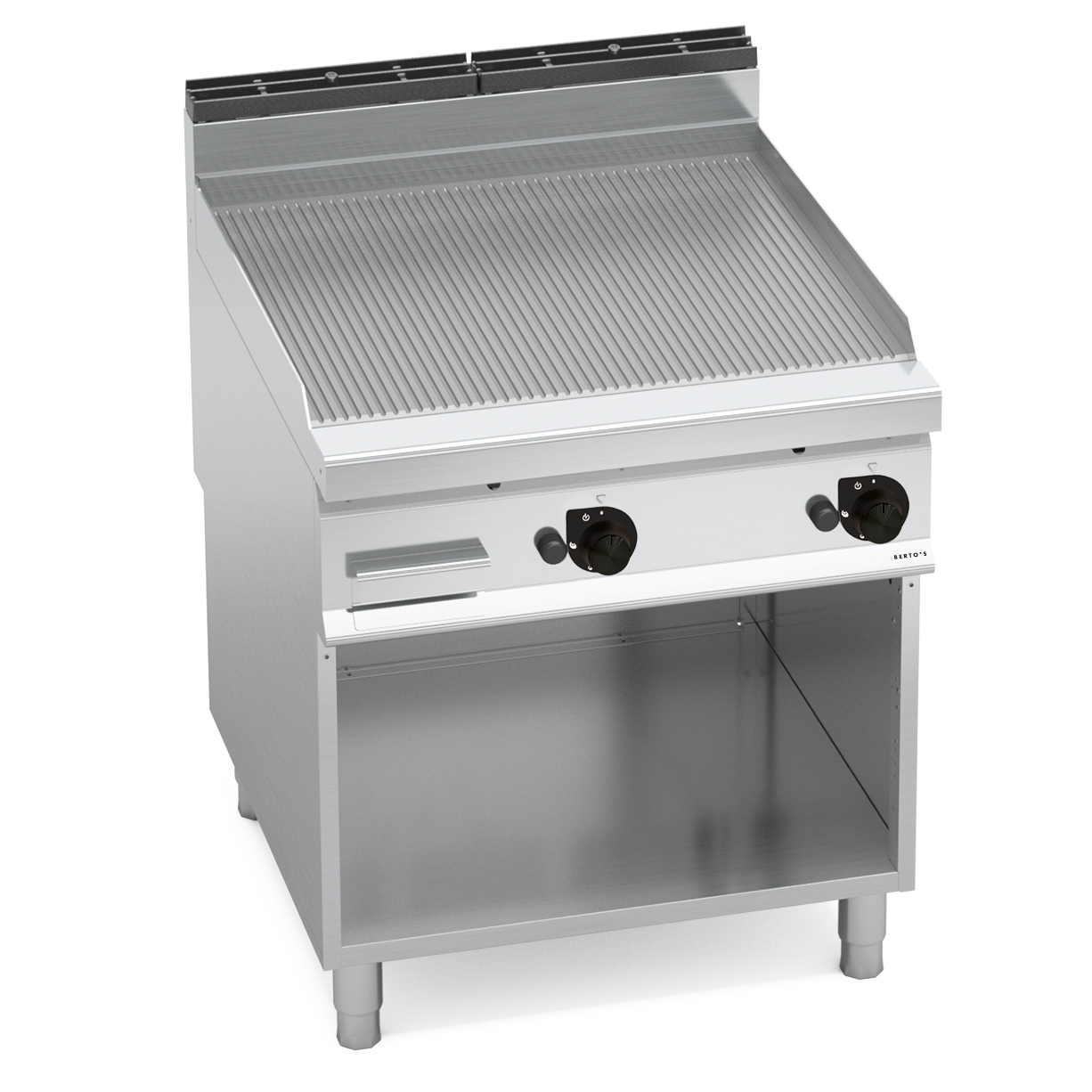

RIBBED GAS GRIDDLES ON CABINET
Download the image
GRIDDLES - MAXIMA 900

RIBBED GAS GRIDDLES ON CABINET

Model G9FR8M-2
Code 20304500
Worktop and front panels made of AISI 304 stainless steel. Inside made of stainless steel. Tubular flame burners of a large surface for a greater uniformity of heat distribution. Regulation of the supplied power by a continuous operation tap. Pilot flame and thermocouple safety valve. Piezoelectric ignition button with rubber protection. Maximum temperature over 300 °C. Ribbed plate in thick satin finish steel occupying the entire worktop surface with a flush splashguard. Two zones with separate controls for an independent and perfect regulation of temperature. Slightly inclined cooking surface with a largely sized drain hole and conveyor to a proper container. Large compartment completely in steel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total gas kW 20
Measurements
Width 800
Depth 900
Height 900
Weight 117
Volume 0.65
Package
Package width 865
Package depth 1080
Package height 1180
Package weight 136
Package volume 1.1

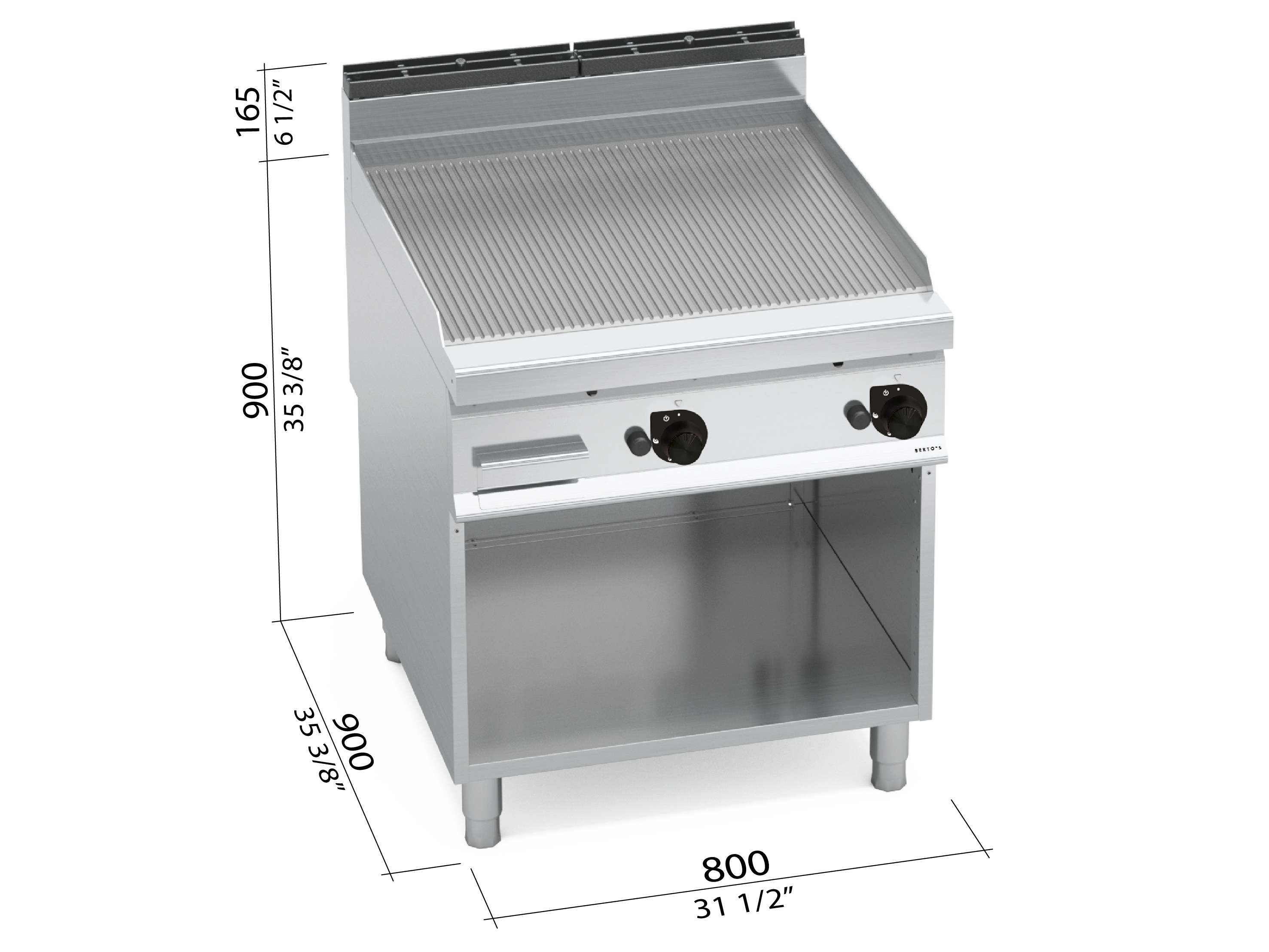

Dimensions

Dimensions
