ELECTRIC GRIDDLE - SMOOTH COMPOUND PLATE
Download the image
GRIDDLES - MAXIMA 900

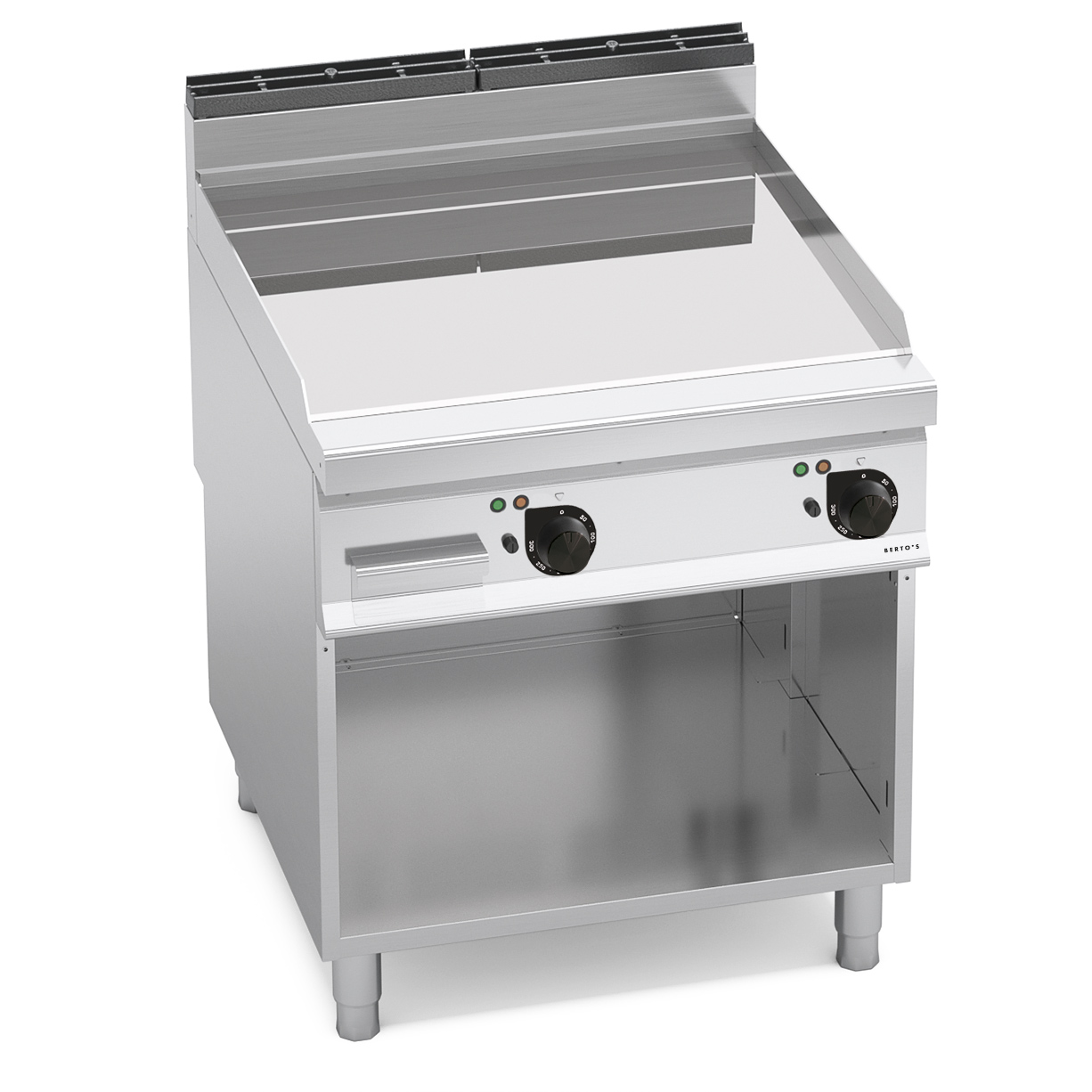

ELECTRIC GRIDDLE - SMOOTH COMPOUND PLATE

Model E9FL8M-2/CPD
Code 20402900
Worktop and front panels made of AISI 304 stainless steel. Inside made of stainless steel. Incoloy stainless steel resistances positioned below the cooking plate. Thermostatic control and safety thermostat with manual restart. Temperature regulation from 50 to 270 °C. Power indicator and temperature light. Very thick smooth plate with flush splashguard. Two-component cooking plate, which combines a steel plate to optimize uniformity with an upper coating in AISI 316 polished stainless steel for easy cleaning and low level of radiation, for greater operator comfort. Two zones with separate controls for independent and optimal temperature regulation. Particularly suitable for delicate cooking. Slightly inclined cooking surface with large drain hole and pipe in a special container.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 11.4
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 900
Height 900
Weight 109
Volume 0.65
Package
Package width 865
Package depth 1080
Package height 1180
Package weight 128
Package volume 1.1

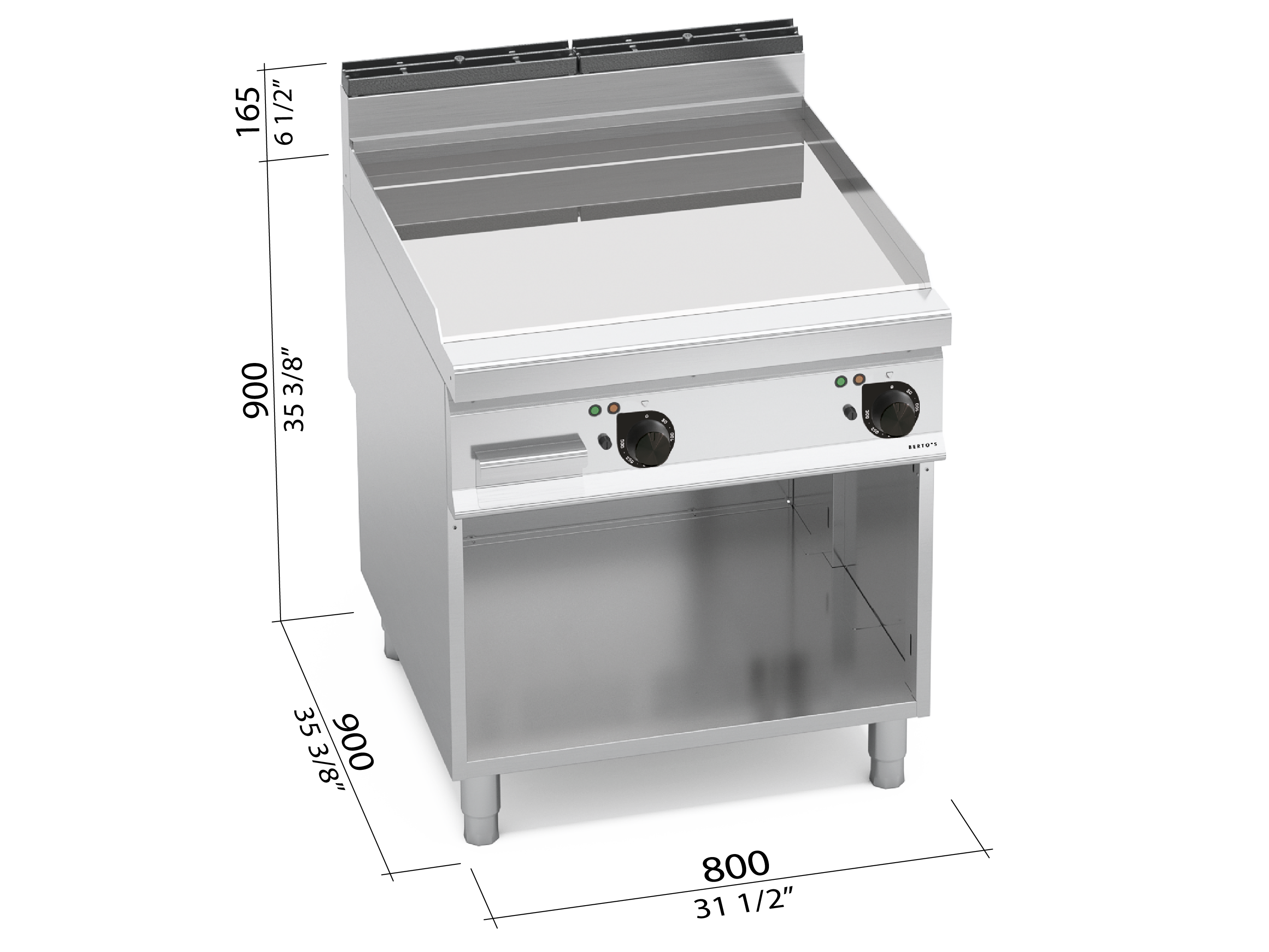

Dimensions

Dimensions
