GAS GRIDDLE - SMOOTH COMPOUND PLATE
Download the image
GRIDDLES - MAXIMA 900

GAS GRIDDLE - SMOOTH COMPOUND PLATE

Model G9FL8M-2/CPD
Code 20302800
Worktop and front panels made of AISI 304 stainless steel. Tubular flame burners with of a large surface for a greater uniformity of heat distribution. Valve with 60 °C - 300 °C thermostatic control for a precise and safe regulation. Pilot flame and thermocouple safety valve. Piezoelectric ignition button with rubber protection. Very thick smooth plate with flush splashguard. Two-component cooking plate, which combines a steel plate to optimize uniformity with an upper coating in AISI 316 polished stainless steel for easy cleaning and low level of radiation, for greater operator comfort. Two zones with separate controls for independent and optimal temperature regulation. Particularly suitable for delicate cooking. Slightly inclined cooking surface with large drain hole and pipe in a special container.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total gas kW 20
Measurements
Width 800
Depth 900
Height 900
Weight 130
Volume 0.65
Package
Package width 865
Package depth 1080
Package height 1270
Package weight 149
Package volume 1.19

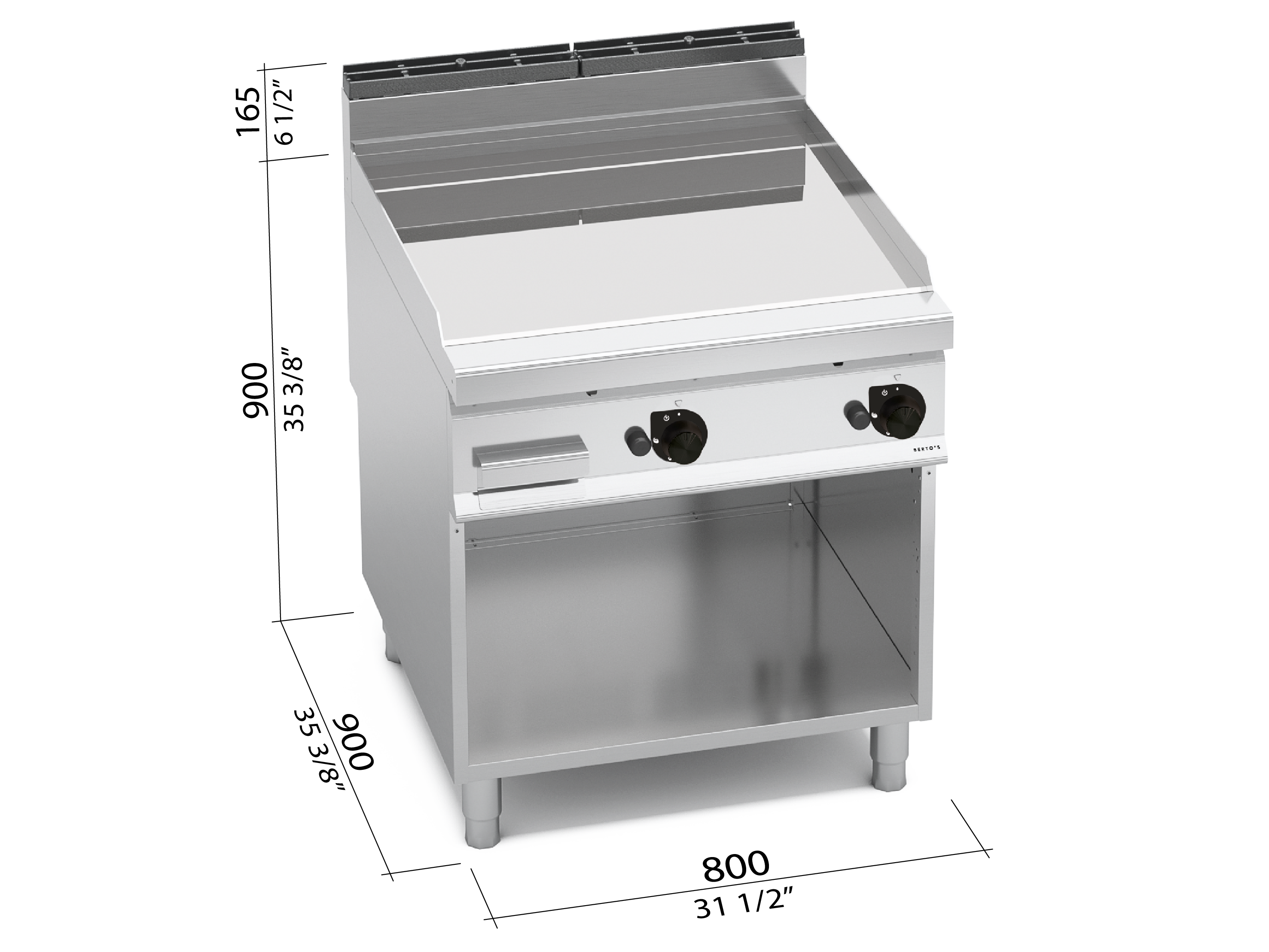

Dimensions

Dimensions
