RIBBED GAS GRIDDLES
Download the image
GRIDDLES - MAXIMA 900

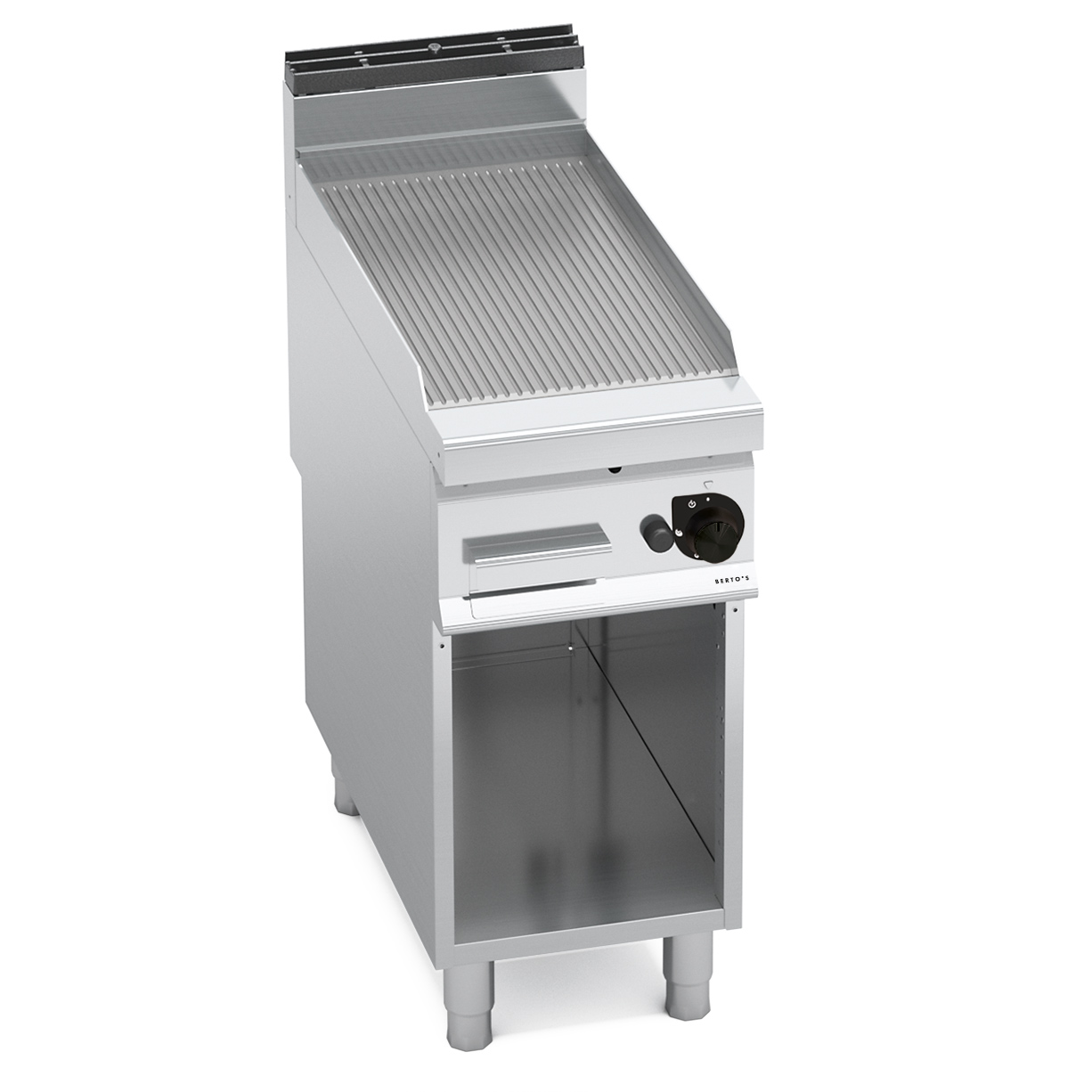

RIBBED GAS GRIDDLES

Model G9FR4M
Code 20303500
Worktop and front panels made of AISI 304 stainless steel. Inside made of stainless steel. Tubular flame burners of a large surface for a greater uniformity of heat distribution. Regulation of the supplied power by a continuous operation tap. Pilot flame and thermocouple safety valve. Piezoelectric ignition button with rubber protection. Maximum temperature over 300 °C. Ribbed satin finish steel plate of high thickness occupying the entire worktop surface splash guard. Slightly inclined cooking surface with a largely sized drain hole and conveyor to a proper container. Large compartment completely in steel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total gas kW 10
Measurements
Width 400
Depth 900
Height 900
Weight 72
Volume 0.32
Package
Package width 480
Package depth 1090
Package height 1170
Package weight 84
Package volume 0.61

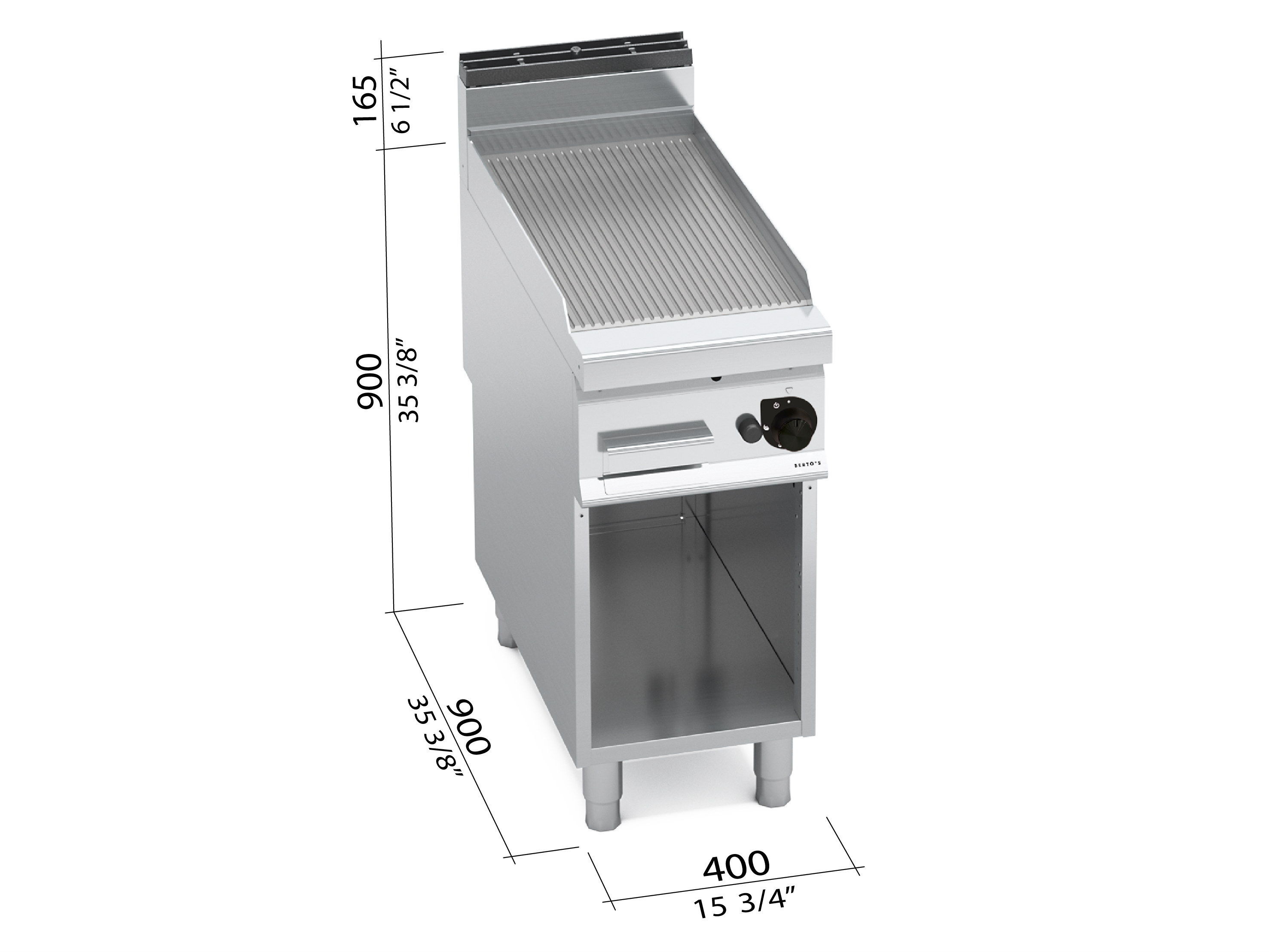

Dimensions

Dimensions
