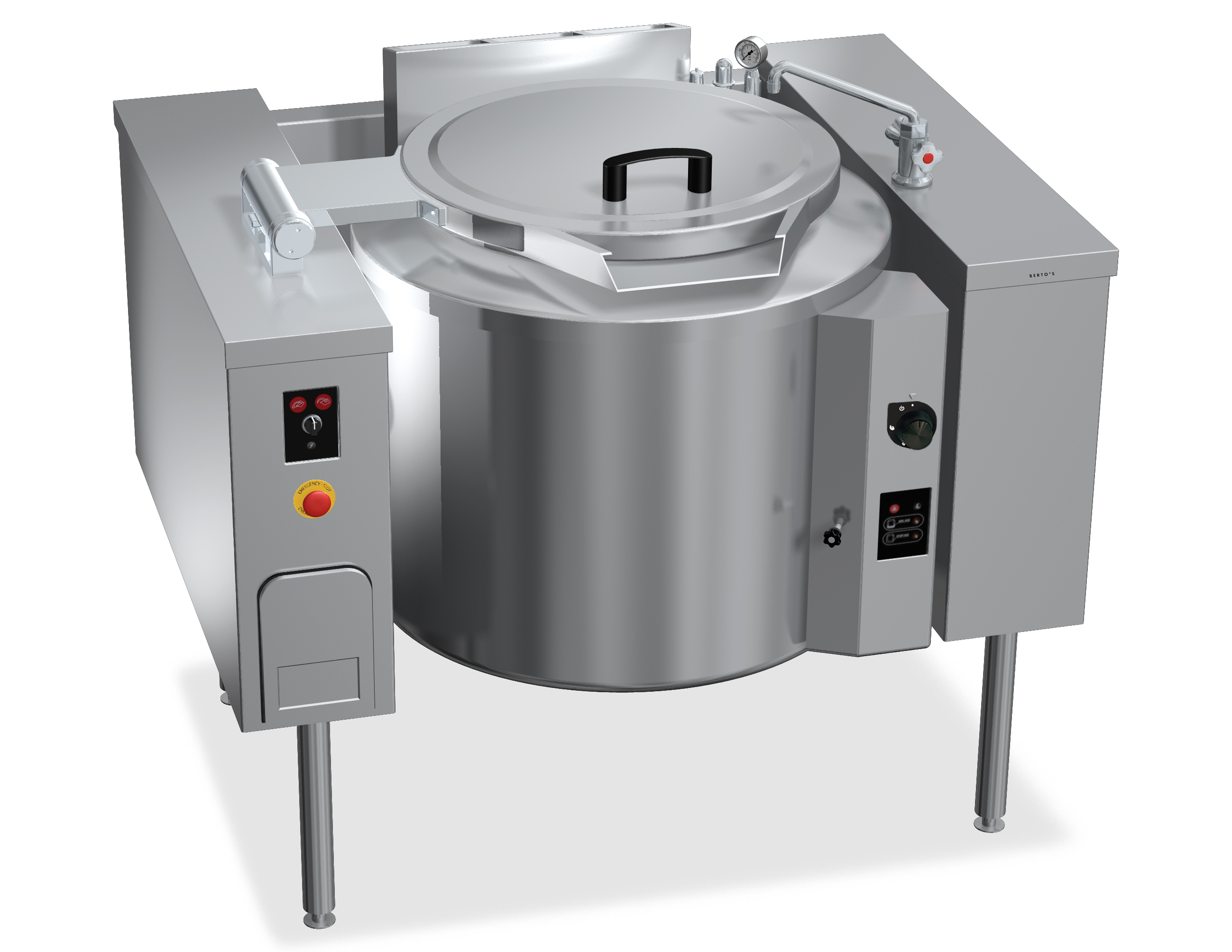

150 L GAS TILTING BOILING PAN WITH INDIRECT HEATING
Download the image
TILTING BOILING PANS - MAXIMA 900

150 L GAS TILTING BOILING PAN WITH INDIRECT HEATING

Model G9P15IR
Code 20812000
Worktop and front panels made of AISI 304 stainless steel. Inside made of stainless steel. Cooking interior in 20 to 40/10 AISI 316 stainless steel, with excellent resistance to acidy products. Jacket with bottom and walls of AISI 304 stainless steel, bottom with 20/10 thickness, walls with 15/10 thickness. Indirect type heating with low pressure steam (0.5 bar) generated inside the jacket through tubular stainless steel burners with optimized combustion, with thermocouple safety valve and protected pilot flame. Continuous discharge ignition system. Hot and cold water taps on the worktop with an articulated spout for filling and washing the container and the jacket. Temperature regulation by means of a handle tap to adjust the water level. Motorised tilting around the front axis. The structure is in 30/10 stainless steel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 150
Details
total gas kW 20.9
Measurements
Width 1445
Depth 1190
Height 1090
Weight 370
Volume 1.87
Package
Package width 1750
Package depth 1450
Package height 1450
Package weight 463
Package volume 3.68

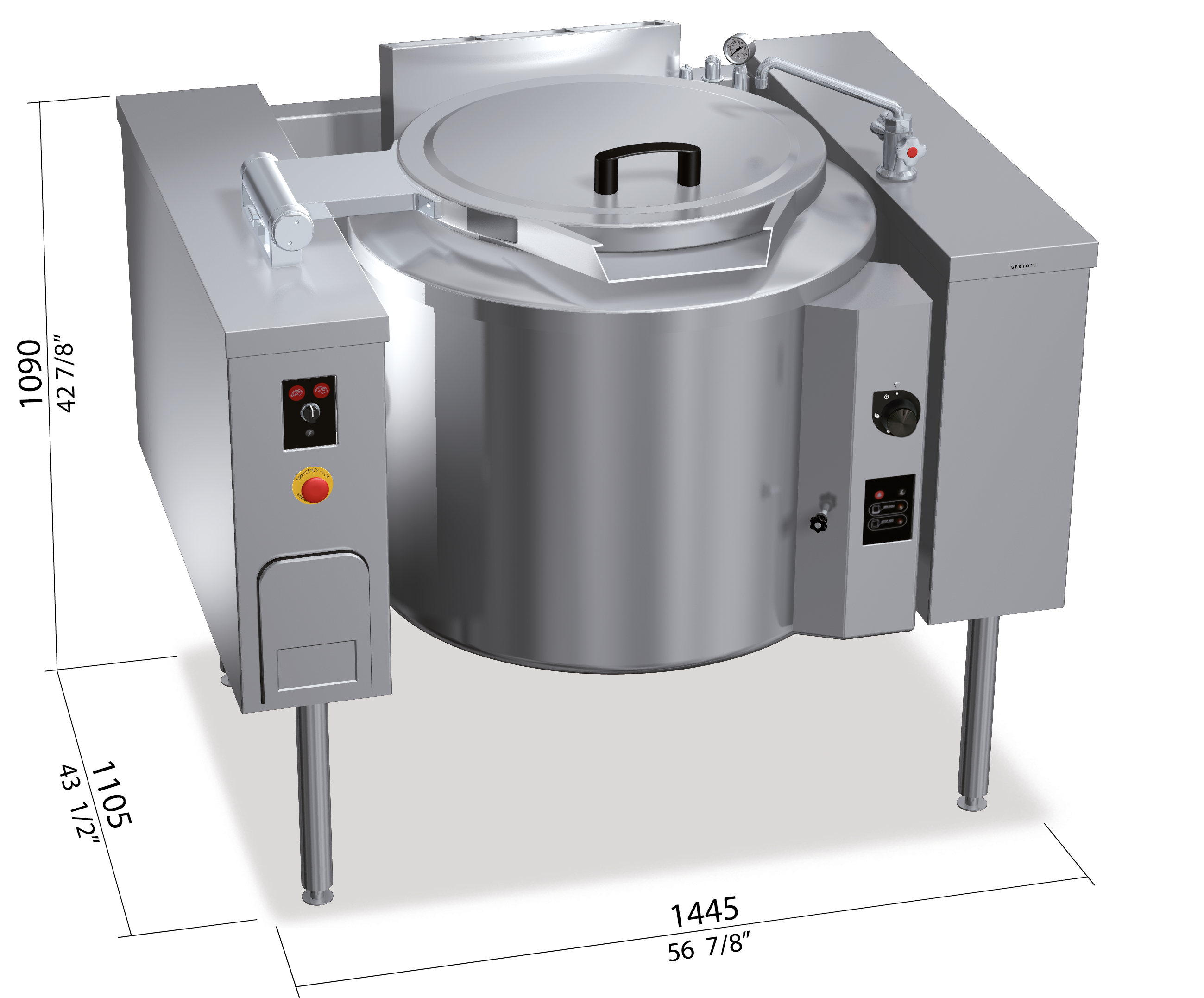

Dimensions

Dimensions
