100 L TILTING BOILING PAN WITH INDIRECT STEAM HEATING
Download the image
TILTING BOILING PANS - MAXIMA 900

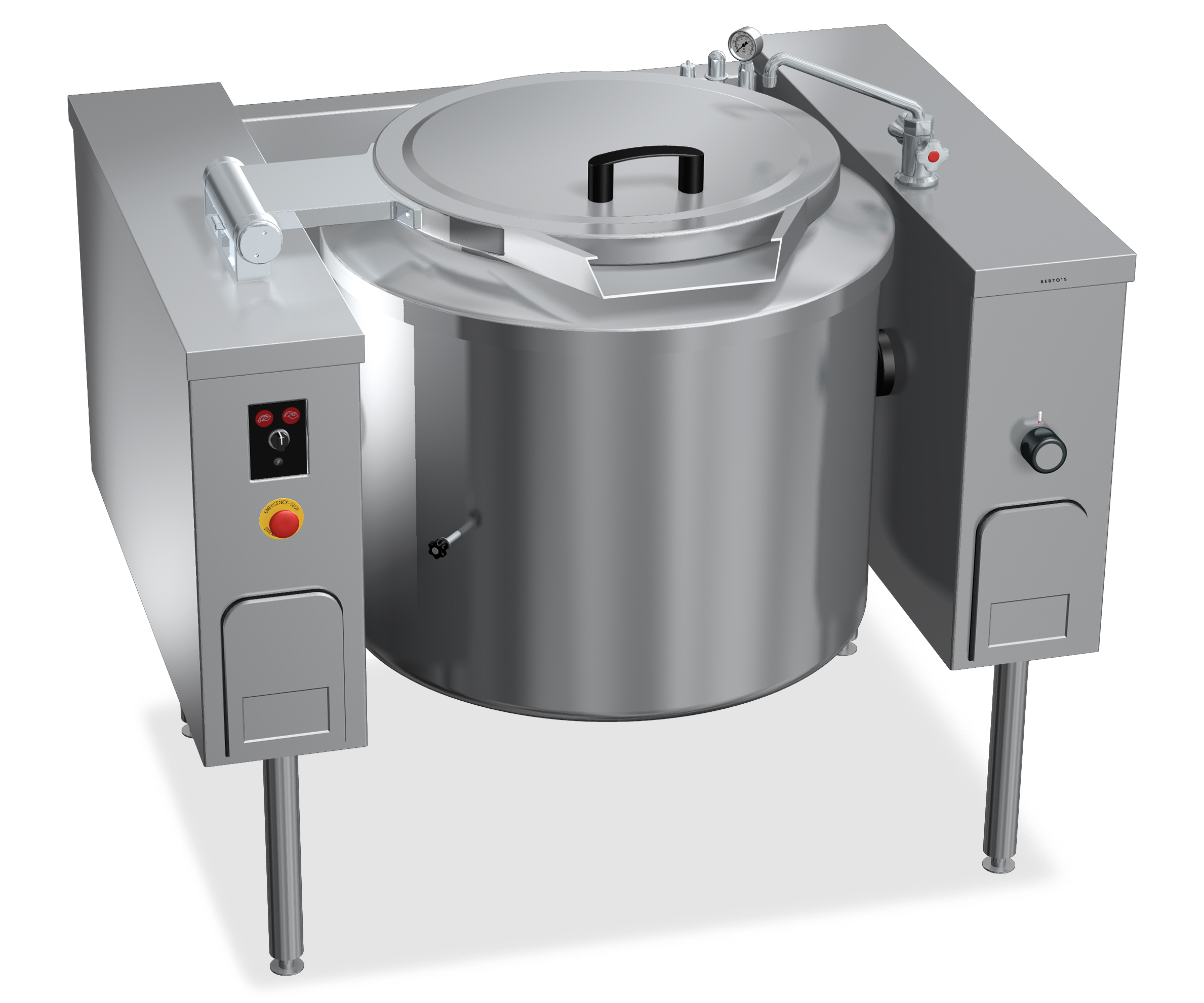

100 L TILTING BOILING PAN WITH INDIRECT STEAM HEATING

Model 9P10IRV
Code 20815500
Worktop and front panels made of AISI 304 stainless steel. Cooking interior in 20 to 40/10 AISI 316 stainless steel, with excellent resistance to acidy products. Indirect steam heating. Powered by means of a throttle valve. Hot and cold water taps on the worktop with an articulated spout for filling and washing the tank. Cooking temperature optimization by means of a valve for the steam flow adjustment. Motorized tilting around the front axis. The structure is in 30/10 stainless steel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 100
Measurements
Width 1445
Depth 1190
Height 1090
Weight 125
Volume 1.87
Package
Package width 1750
Package depth 1450
Package height 1450
Package weight 182
Package volume 3.68

Dimensions

Dimensions
