GRIDDLES - S700

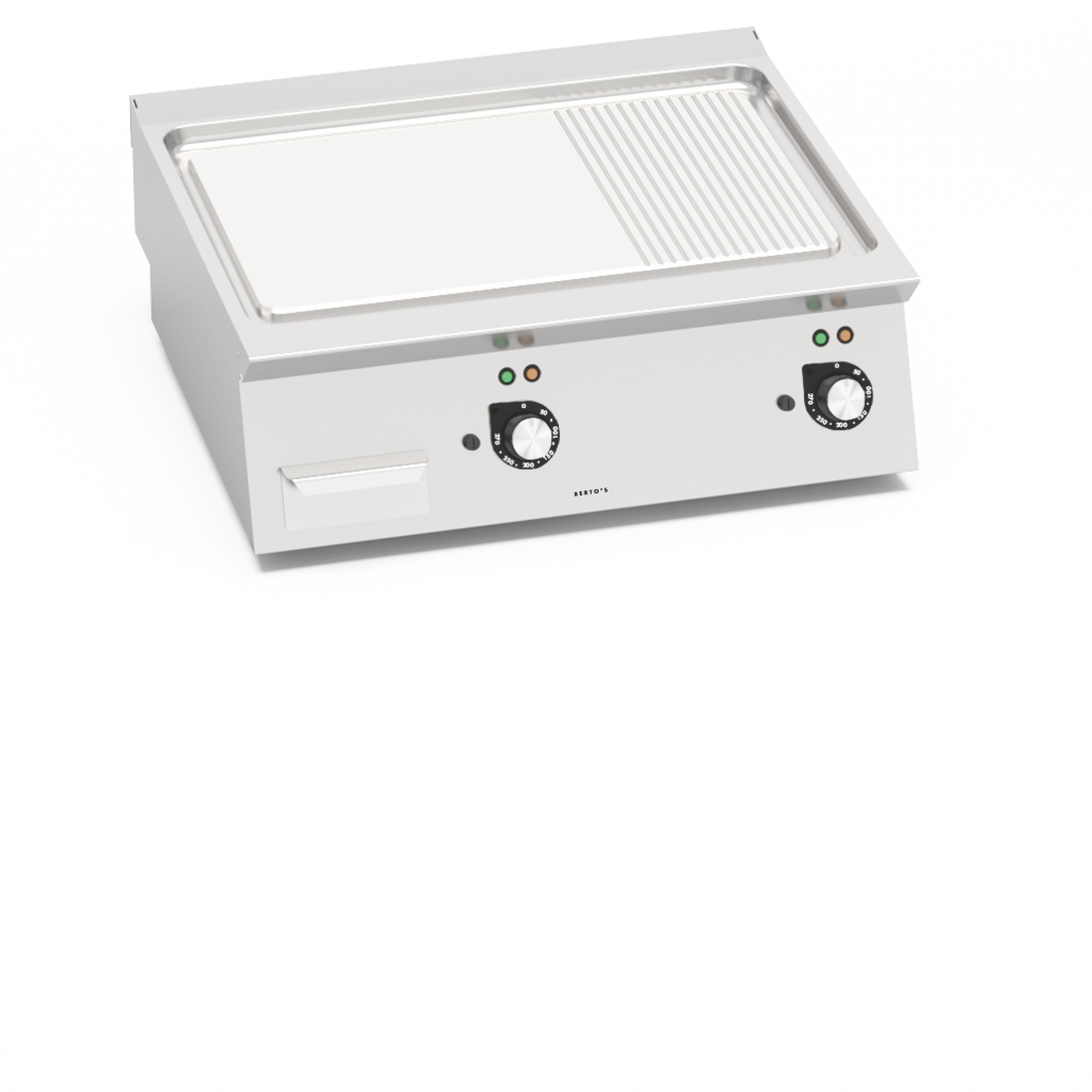

SMOOTH/GROOVED ELECTRIC GRIDDLE (COMPOUND)

Model SE7FM8B-2/CPD
Code 07405300
Worktop in AISI 304 stainless steel of 20/10 thickness, front and side panels in AISI 304 stainless steel, Scotch Brite finishing. Incoloy steel heating elements positioned beneath the cooking plate. Thermostatic control and safety thermostat with manual restart. Temperature regulation from 50° C to 300° C. Power indicator and temperature light. Very thick built-in plate, 2/3 smooth and 1/3 ribbed, with rounded edges and a peripheral drain along the plate to collect food residue. Two cooking zones with independent temperature controls. Dual-component cooking plate comprising of a steel plate to optimize cooking evenness and an upper coat in AISI 316 stainless steel with a bright finishing; easy to clean and low level of heat irradiation to guarantee higher comfort to the operator. Large drain hole and a line to the watertight drain pan.

Technical specifications

Technical specifications

Details
total electric kW 9.6
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 730
Height 280
Weight 73
Volume 0.16
Package
Package width 880
Package depth 800
Package height 650
Package weight 86
Package volume 0.46

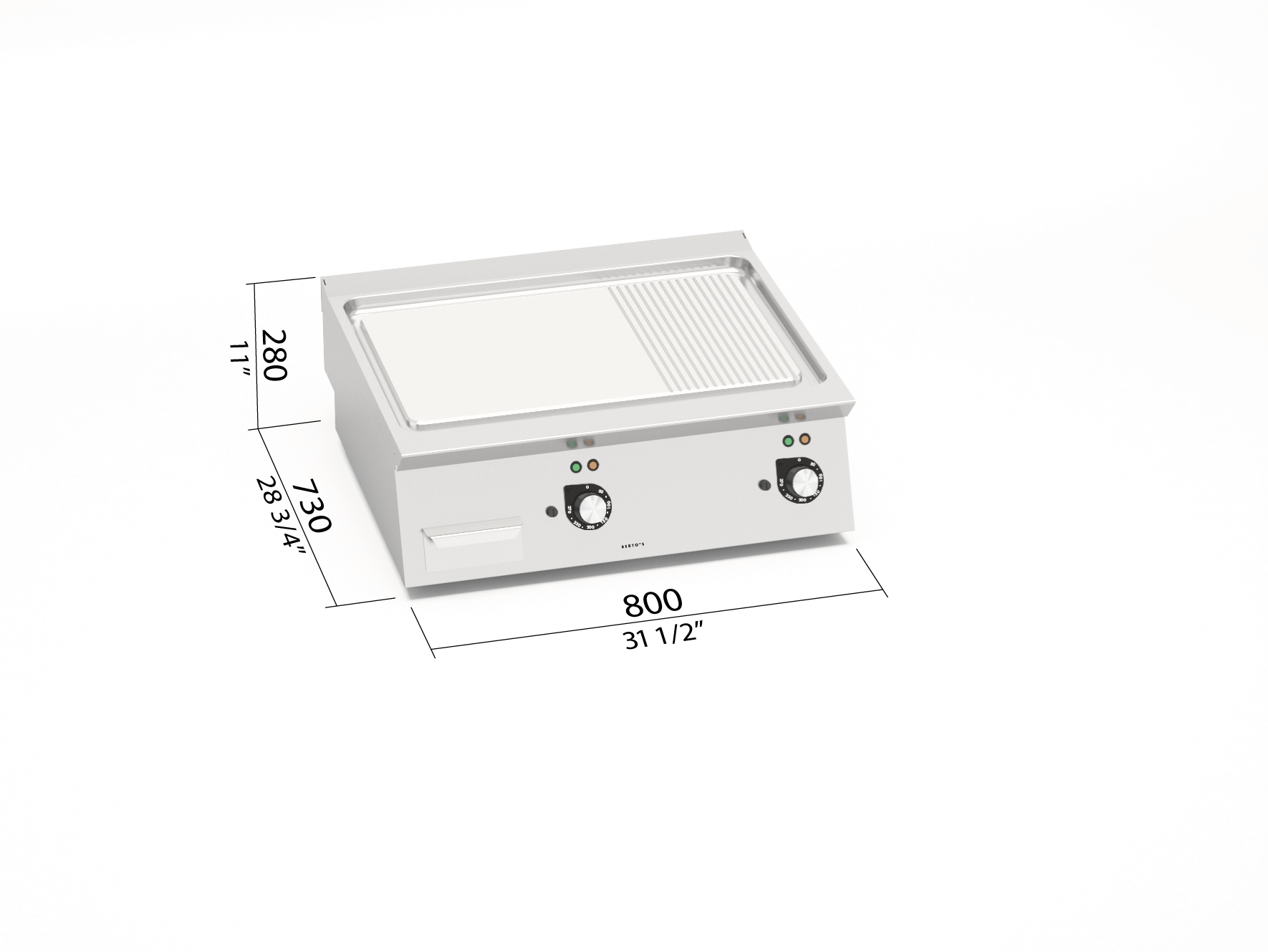

Dimensions

Dimensions
