GRIDDLES - S700

RIBBED GAS GRIDDLES (COMPOUND)

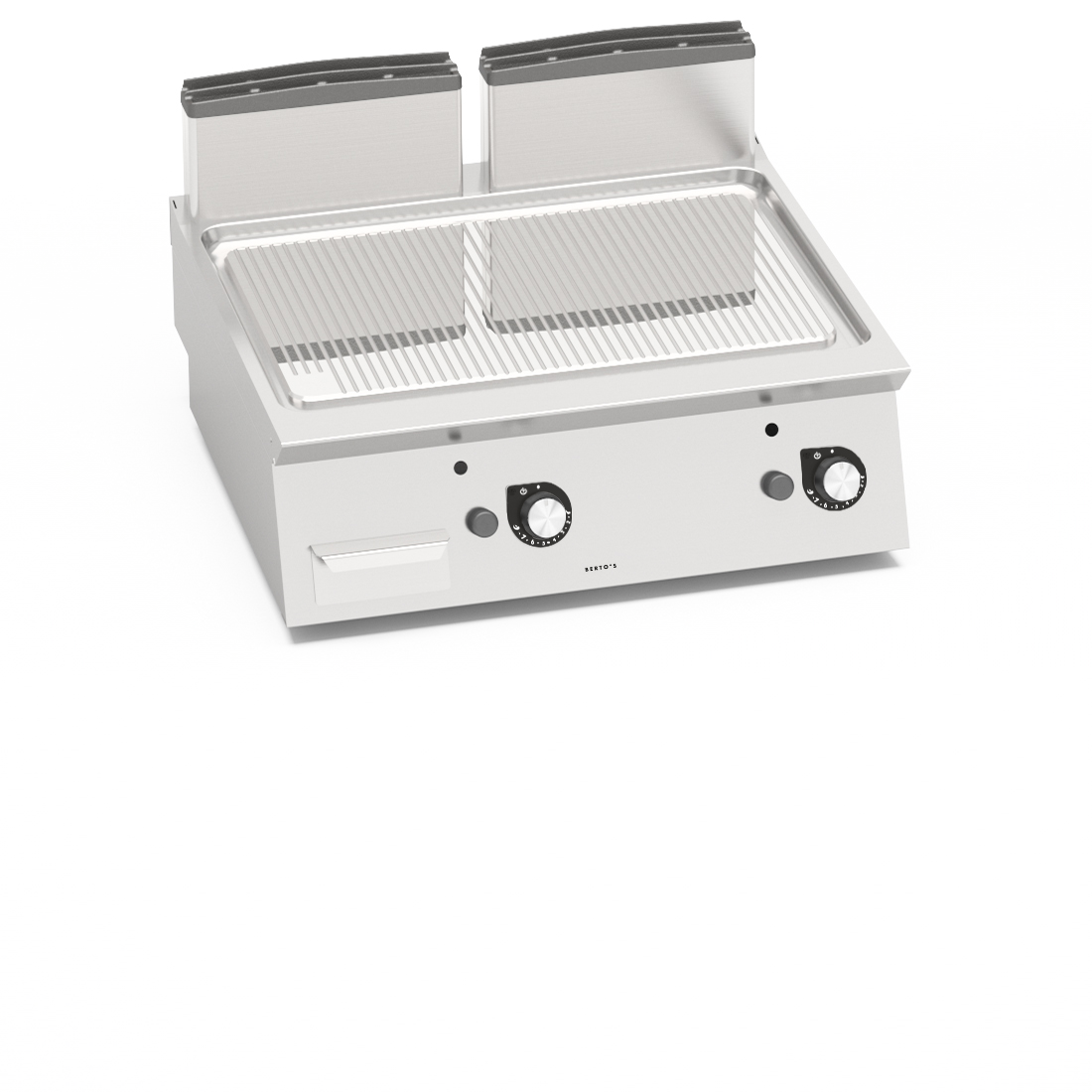

Model SG7FR8B-2/CPD
Code 07304300
Worktop in AISI 304 stainless steel of 20/10 thickness, front and side panels in AISI 304 stainless steel, Scotch Brite finishing. Tubular burners with self-stabilized flame of a large surface area for a greater uniformity of heat distribution. Precise and safe regulation by the thermostatic control device. Pilot flame and thermocouple safety valve. Piezoelectric ignition button with silicone protection. Temperature over 300° C. Very thick ribbed built-in plate with rounded edges and drain way all along to collect food residue. Two cooking zones with independent temperature controls. Dual-component cooking plate comprising of a steel plate to optimize cooking evenness and a upper coat in AISI 316 stainless steel with bright finishing; easy to clean and low level of heat irradiation to guarantee higher comfort to the operator. Large drain hole and a line to the watertight drain pan.

Technical specifications

Technical specifications

Details
total gas kW 13.8
Measurements
Width 800
Depth 730
Height 280
Weight 70
Volume 0.16
Package
Package width 880
Package depth 800
Package height 650
Package weight 83
Package volume 0.46

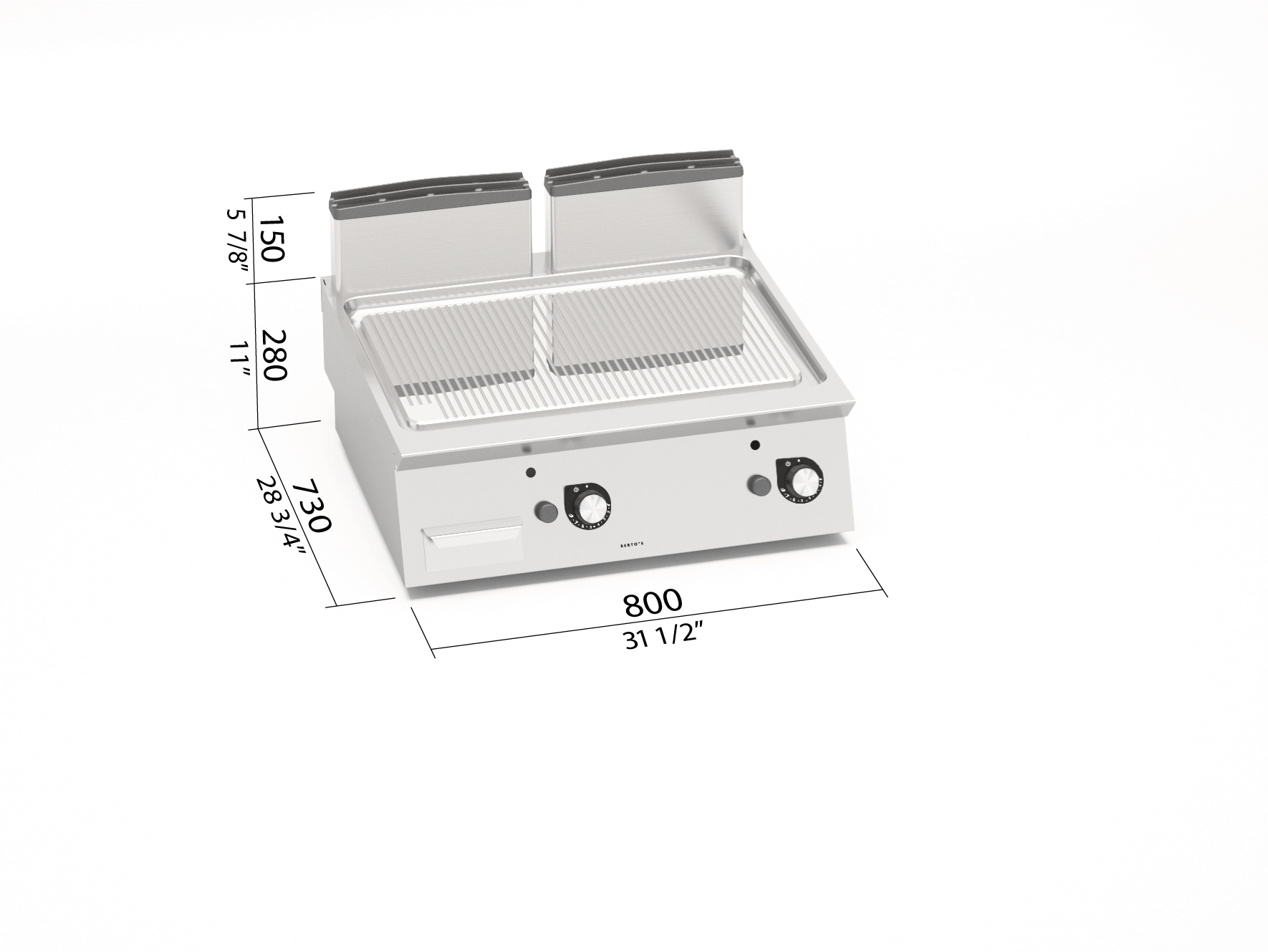

Dimensions

Dimensions
