GRIDDLES - S700

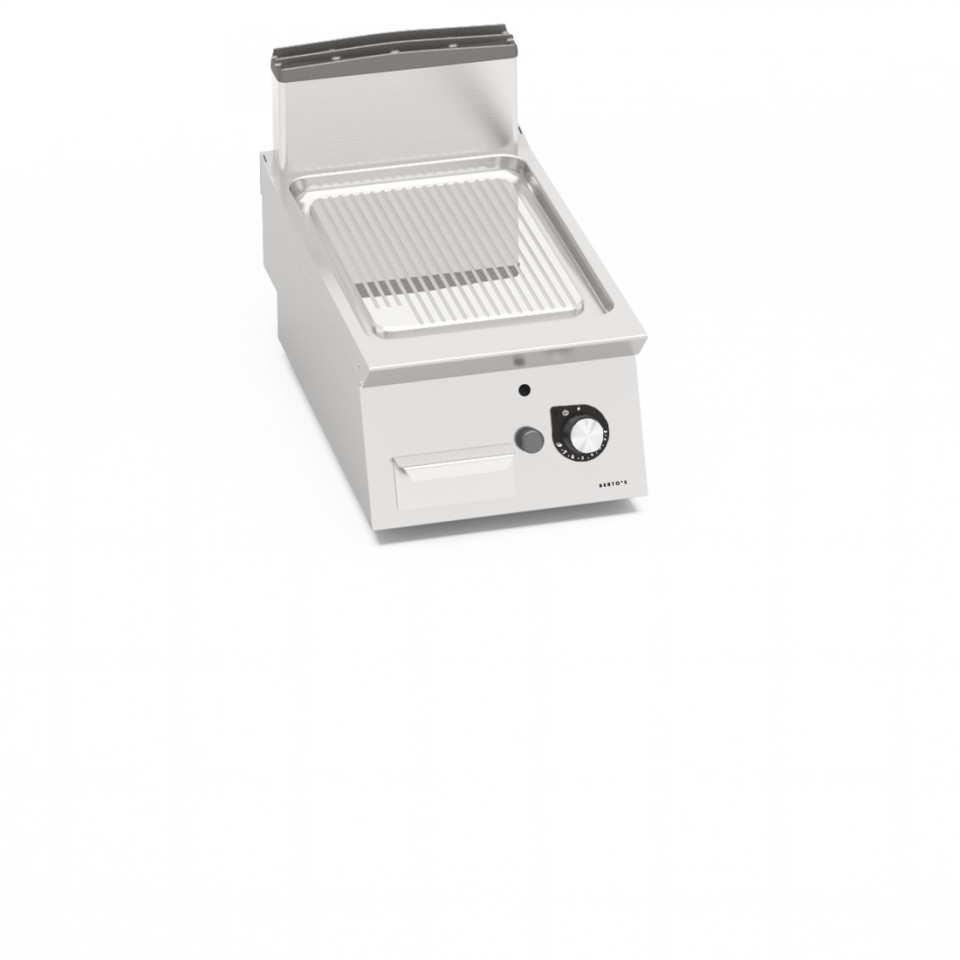

RIBBED GAS GRIDDLES (COMPOUND)

Model SG7FR4B/CPD
Code 07303300
Worktop in AISI 304 stainless steel with a 20/10 thickness, front and side panels in AISI 304 stainless steel, Scotch Brite finishing. Tubular burners with self-stabilized flame of a large surface area for a greater uniformity of heat distribution. Precise and safe regulation with the thermostatic control device. Pilot flame and safety thermocouple valve. Piezoelectric ignition button with silicone protection. Temperatures over 300°C. Very thick ribbed built-in plate with rounded edges and drain way all along to collect food residue. Dual-component cooking plate comprising of a steel plate, to optimize cooking evenness, and an upper coating made of AISI 316 stainless steel with a bright finishing; easy to clean and a low level of heat irradiation to guarantee higher comfort to the operator. Large drain hole and a line to the watertight drain pan.

Technical specifications

Technical specifications

Details
total gas kW 6.9
Measurements
Width 400
Depth 730
Height 280
Weight 43
Volume 0.08
Package
Package width 480
Package depth 800
Package height 620
Package weight 52
Package volume 0.24

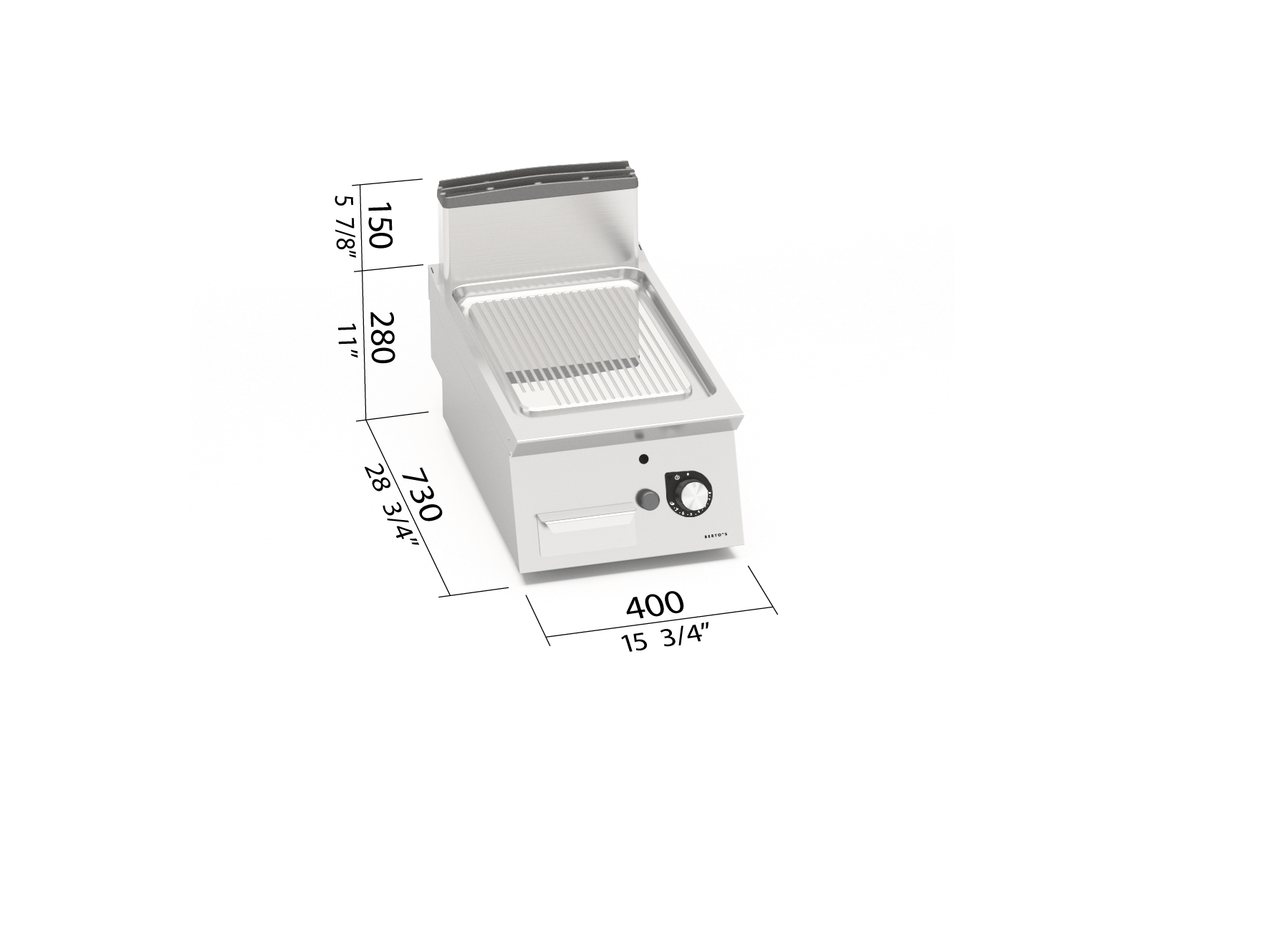

Dimensions

Dimensions
