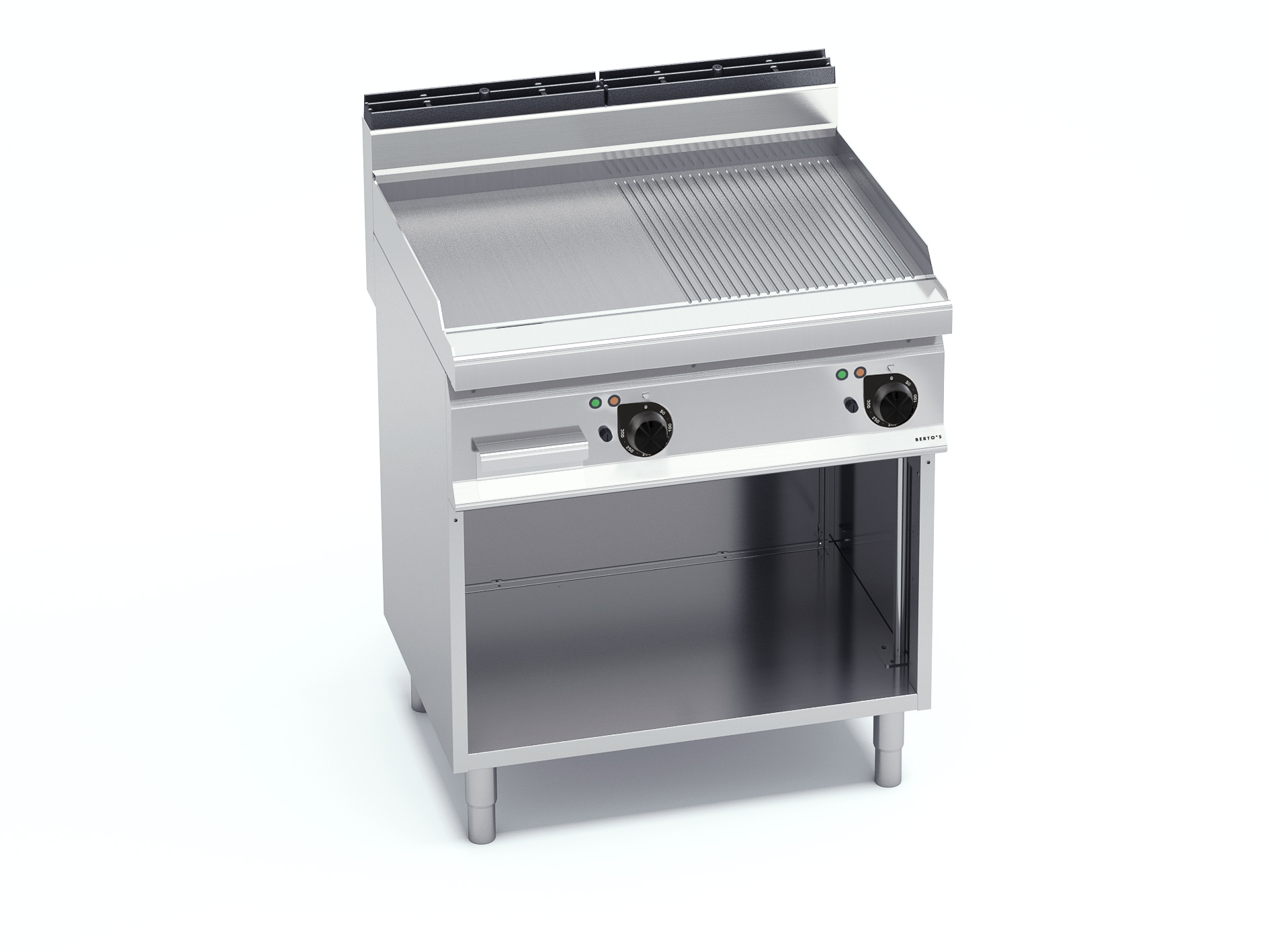

SMOOTH/GROOVED ELECTRIC GRIDDLE WITH CABINET
Download the image
GRIDDLES - MACROS 700

SMOOTH/GROOVED ELECTRIC GRIDDLE WITH CABINET

Model E7FM8MP-2
Code 18405600
Worktop and front panels from AISI 304 stainless steel. Incoloy steel heating elements placed under the cooking plate. Thermostatic control and safety thermostat with manual restart. Temperature regulation from 50° C to 270°C. Pilot light and temperature indicator light. Half grooved and half smooth satin finish steel plate occupying the entire worktop surface with flush splashguard. Two zones with separate controls for an independent and perfect regulation of temperature. Slightly inclined cooking surface with a large hole to allow drainage of liquid into an appropriate waste container. Adjustable feet (cabinet version).
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 9.6
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 714
Height 900
Weight 87
Volume 0.51
Package
Package width 880
Package depth 790
Package height 1210
Package weight 97
Package volume 0.84

Dimensions

Dimensions
