SMOOTH ELECTRIC GRIDDLE (COUNTER TOP)
Download the image
GRIDDLES - MACROS 700

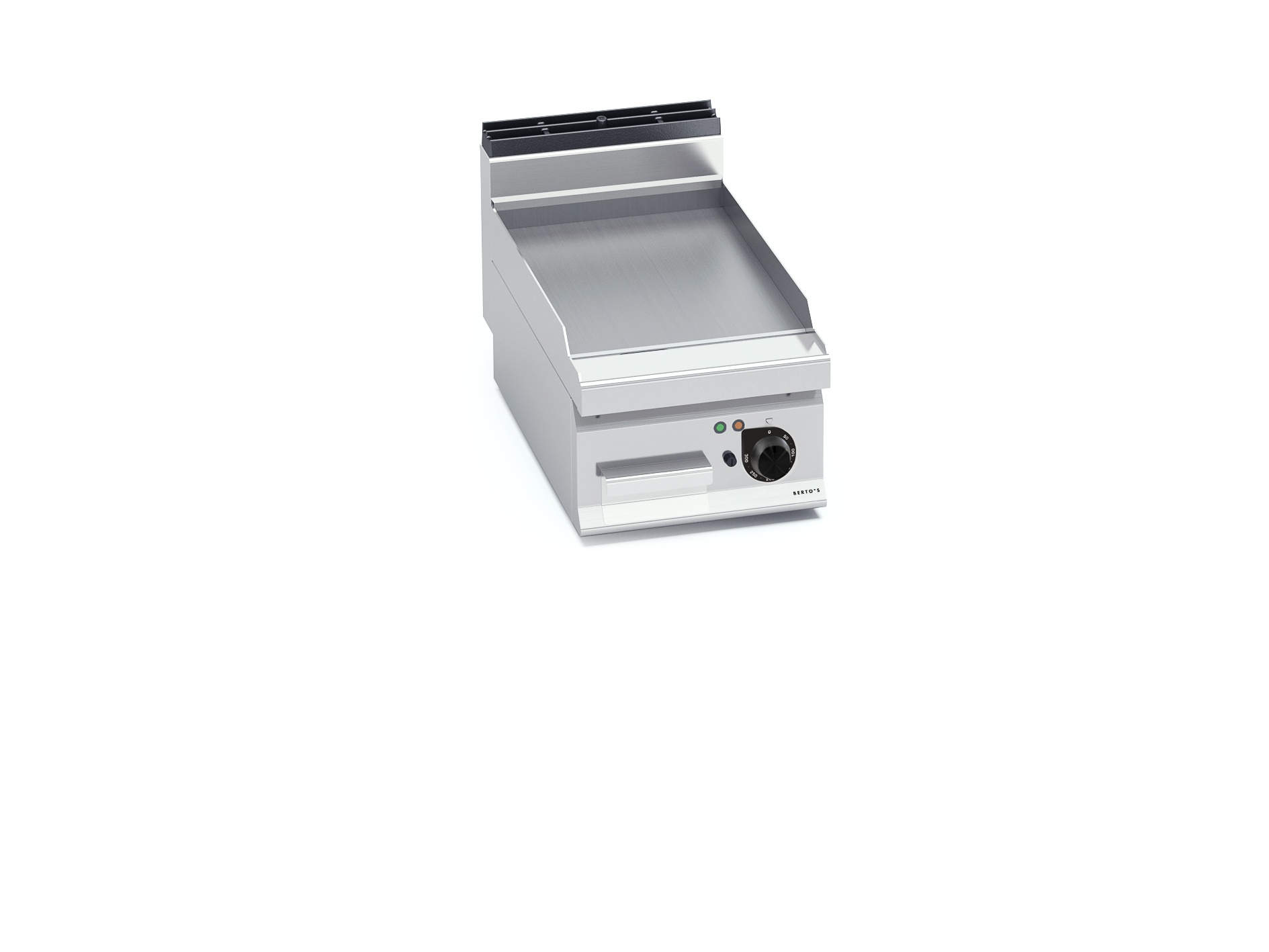

SMOOTH ELECTRIC GRIDDLE (COUNTER TOP)

Model E7FL4BP
Code 18401100
Worktop and front panels from AISI 304 stainless steel. Incoloy steel heating elements placed under the cooking plate. Thermostatic control and safety thermostat with manual restart. Temperature regulation from 50° C to 270°C. Pilot light and temperature indicator light. Smooth satin finish steel plate occupying the entire worktop surface with flush splashguard. Slightly inclined cooking surface with a large hole to allow drainage of liquid into an appropriate waste container. Adjustable feet (cabinet version).
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 4.8
Electrical voltage 380-415 V3N
Measurements
Width 400
Depth 714
Height 290
Weight 37
Volume 0.08
Package
Package width 470
Package depth 790
Package height 620
Package weight 40
Package volume 0.23

Dimensions

Dimensions
