GAS GRIDDLE - SMOOTH COMPOUND PLATE
Download the image
GRIDDLES - MACROS 700

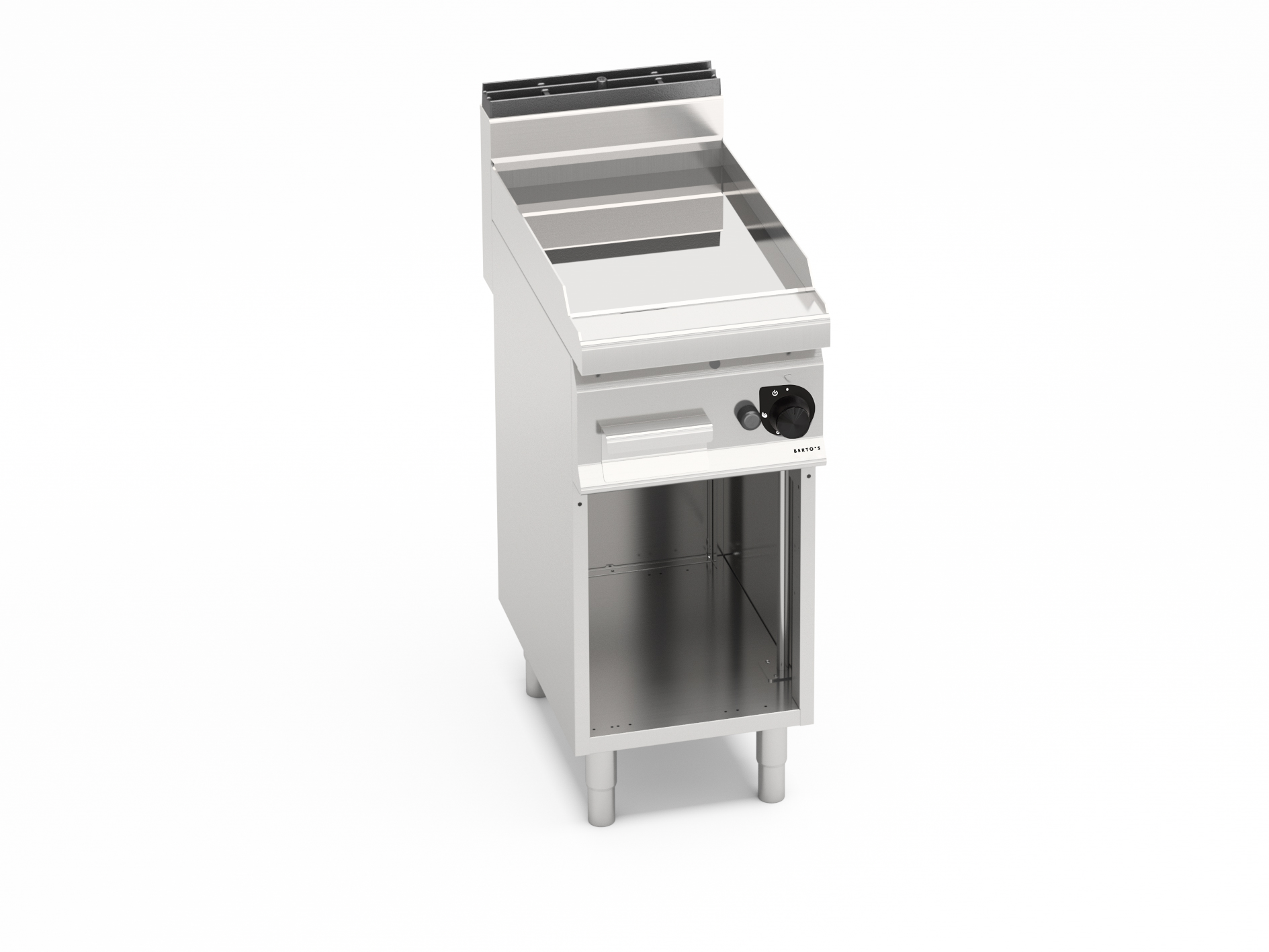

GAS GRIDDLE - SMOOTH COMPOUND PLATE

Model G7FL4M/CPD
Code 18301800
Worktop and front panels from AISI 304 stainless steel. Tubular burners with self-stabilized flame on a large surface for a greater uniformity in heat distribution. Regulation of the supplied power by a thermostat tap. Pilot flame and thermocouple safety valve. Piezoelectric ignition button with silicone protection. Maximum controlled temperature within 280 °C. Very thick smooth plate with flush splashguard. Two-component cooking plate, which combines a steel plate to optimize uniformity with an upper coating in AISI 316 polished stainless steel for easy cleaning and low level of radiation, for greater operator comfort. Two zones with separate controls for independent and optimal temperature regulation. Particularly suitable for delicate cooking. Slightly inclined cooking surface with a large hole to allow drainage of liquid into an appropriate watertight waste container. Adjustable feet.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total gas kW 6.9
Measurements
Width 400
Depth 714
Height 900
Weight 50
Volume 0.26
Package
Package width 470
Package depth 790
Package height 1210
Package weight 61
Package volume 0.45

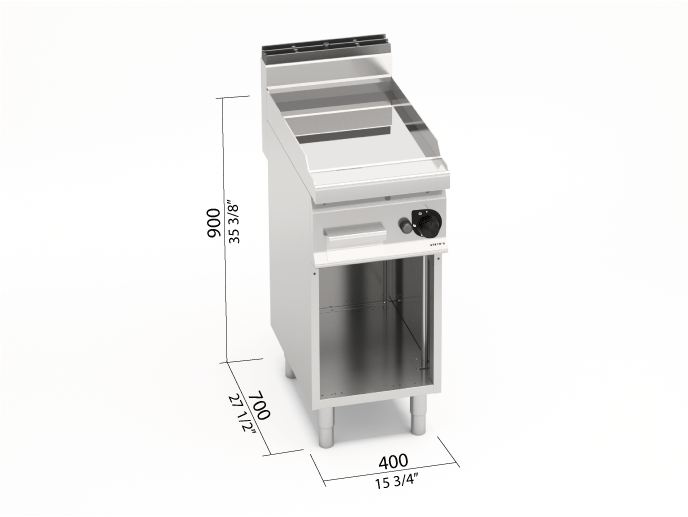

Dimensions

Dimensions
