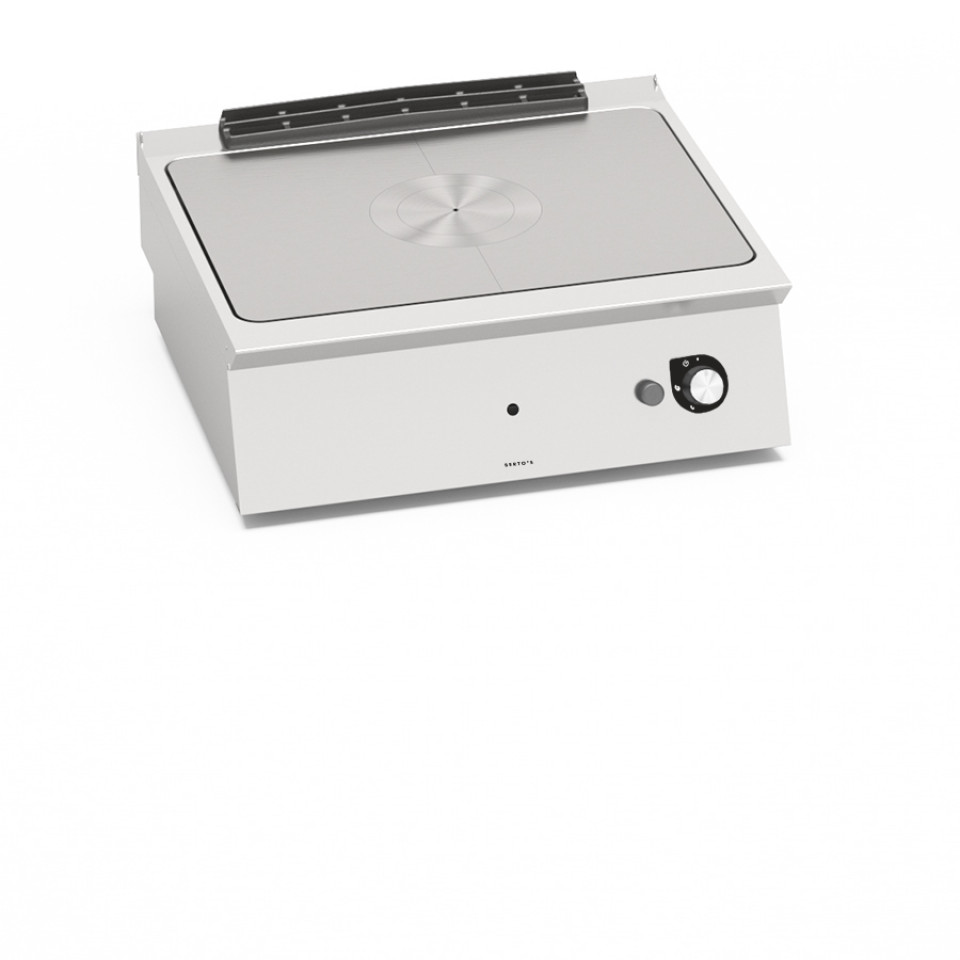

GAS SOLID TOP
Download the image
GAS SOLID TOP - S700

GAS SOLID TOP

Model SG7TPB
Code 07862500
Worktop from AISI 304 stainless steel with 20/10 thickness and Scotch Brite finishing.
Central cast iron burner with optimized combustion, 10 kW maximum power, thermocouple safety valve and protected pilot flame. Piezoelectric ignition coating of the combustion chamber from vermiculite, a high performance insulating material. Steel plate with high thickness and differentiated thermal areas: maximum temperature at the center, decreasing to the edges.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total gas kW 10
Measurements
Width 800
Depth 730
Height 280
Weight 88
Volume 0.16
Package
Package width 880
Package depth 800
Package height 650
Package weight 101
Package volume 0.46

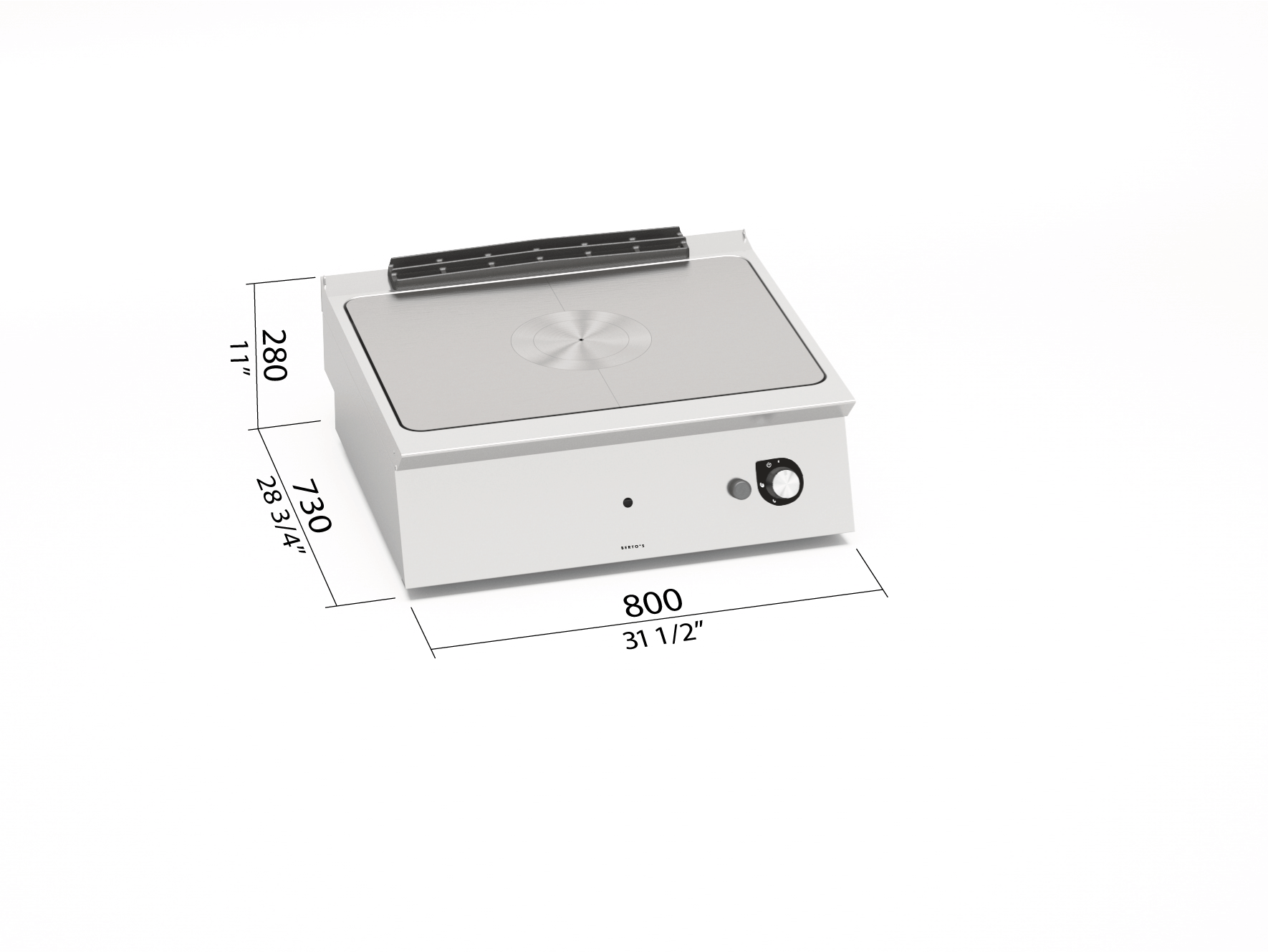

Dimensions

Dimensions
