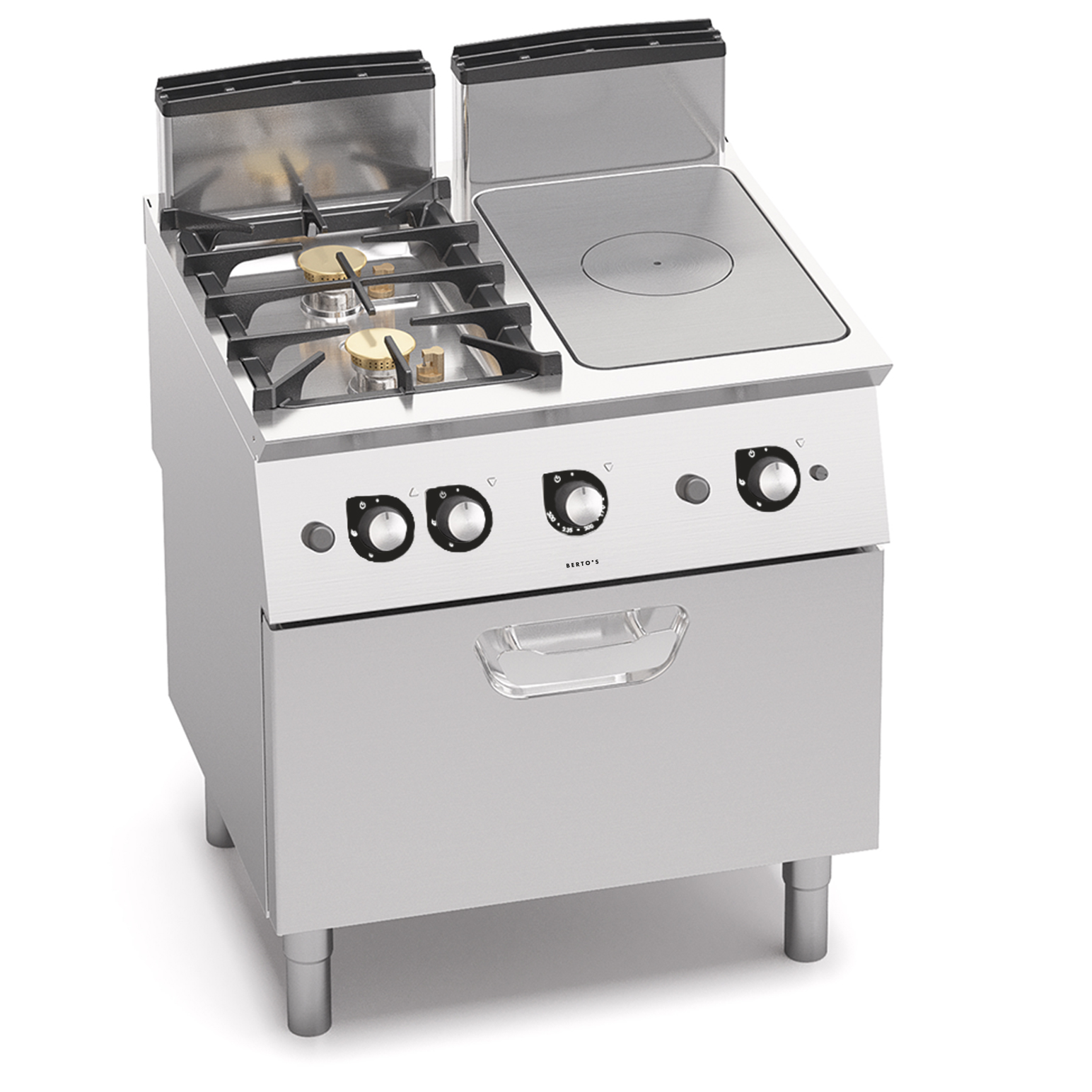

GAS SOLID TOP - S700

GAS SOLID TOP + 2 OPEN BURNERS WITH 2/1 GAS OVEN

Model SG7T4P2F+FG
Code 07874000
Worktop in AISI 304 stainless steel with a 20/10 thickness, front and side panels in AISI 304 stainless steel, Scotch Brite finishing. Solid steel gas top of high resistance and heat distribution in differentiated thermal areas: maximum temperature at the centre, decreasing towards the edges. 7 kW central stainless steel burner with optimized combustion activated by a valve tap with thermocouple safety valve and protected pilot flame. Piezoelectric ignition button with silicone protection. Cast iron burners and brass burner cap, attached with a waterproof seal to the deep drawn worktop in AISI 304. Guaranteed for life, activated by a valve cock. Models equipped with safety thermocouple and burner pilot flame protected by a steel cap designed for easy cleaning and maintenance. Gas oven with self-stabilized flame burner positioned under the steel ribbed base and adjustable thermostat from 160 to 280 °C. Oven chamber from AISI 430 with 4-level supports and internal, pressed and ribbed door from stainless steel. Stainless steel internal chimney and burner from AISI 304 stainless steel. High resistance and doublepressed handle from AISI 304 stainless steel. Adjustable feet. Standard version: 1 anti-tilt oven shelf.

Technical specifications

Technical specifications

Oven
Oven power in kW 7.8
Details
total gas kW 26.8
Measurements
Width 800
Depth 730
Height 900
Weight 104
Volume 0.53
Package
Package width 880
Package depth 800
Package height 1300
Package weight 135
Package volume 0.85

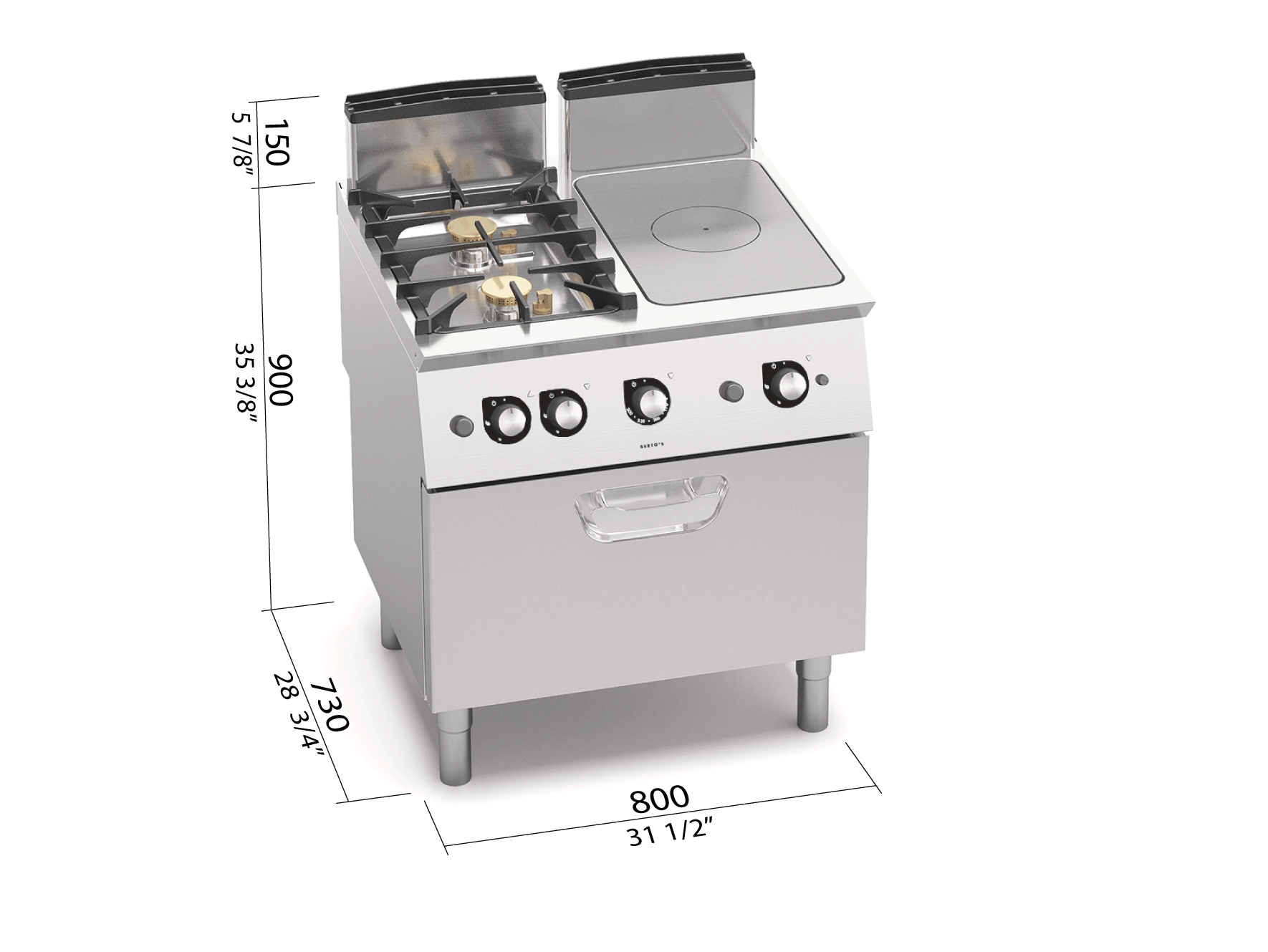

Dimensions

Dimensions
