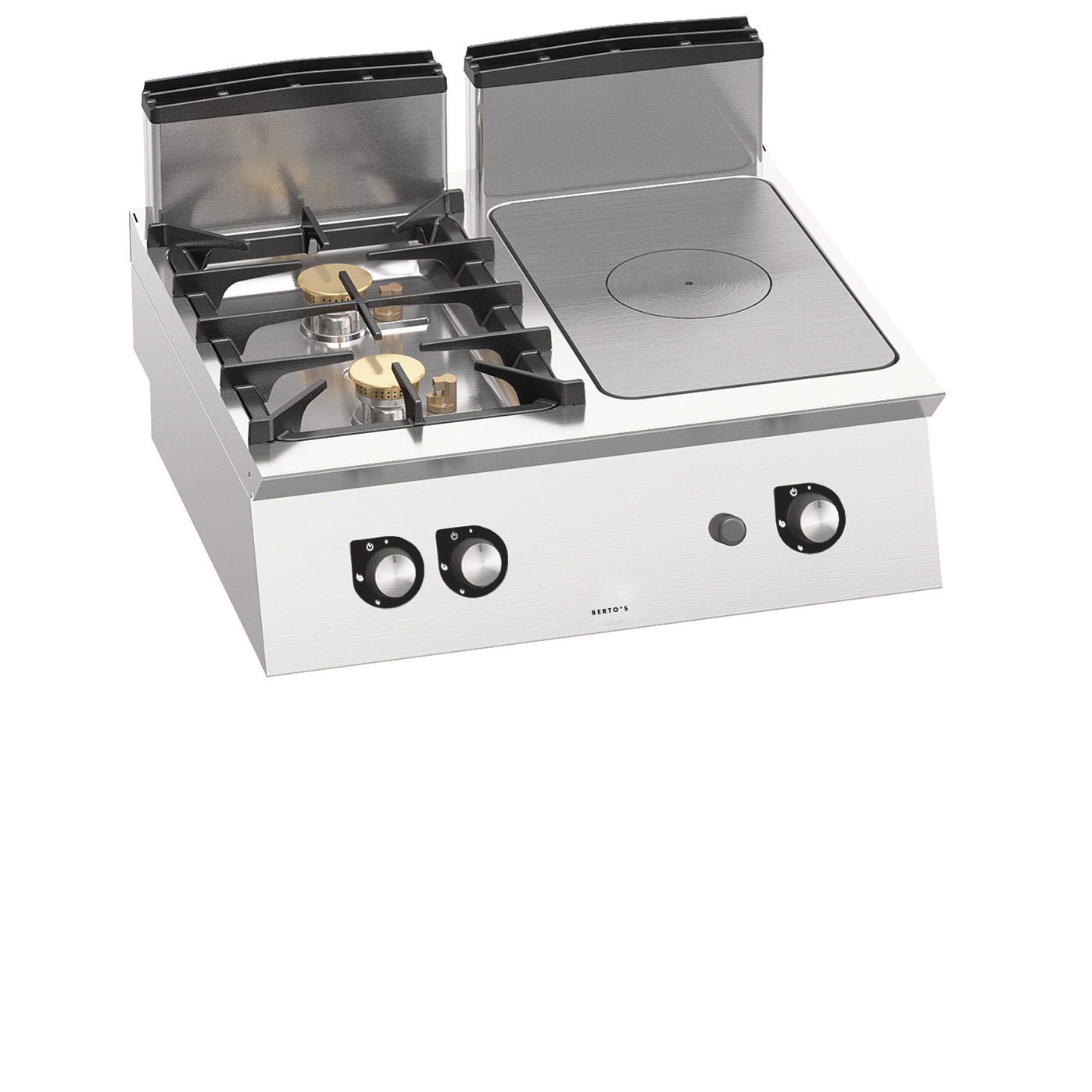

GAS SOLID TOP + 2 OPEN BURNERS
Download the image
GAS SOLID TOP - S700

GAS SOLID TOP + 2 OPEN BURNERS

Model SG7T4P2FB
Code 07872000
Worktop in AISI 304 stainless steel with a 20/10 thickness, front and side panels in AISI 304 stainless steel, Scotch Brite finishing. Solid steel gas top of high resistance and heat distribution in differentiated thermal areas: maximum temperature at the centre, decreasing towards the edges. 7 kW central stainless steel burner with optimized combustion activated by a valve tap with thermocouple safety valve and protected pilot flame. Piezoelectric ignition button with silicone protection. Cast iron burners and brass burner cap, attached with a waterproof seal to the deep drawn worktop in AISI 304. Guaranteed for life, activated by a valve cock. Models equipped with safety thermocouple and burner pilot flame protected by a steel cap designed for easy cleaning and maintenance.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total gas kW 19
Measurements
Width 800
Depth 730
Height 280
Weight 88
Volume 0.16
Package
Package width 880
Package depth 800
Package height 650
Package weight 101
Package volume 0.46

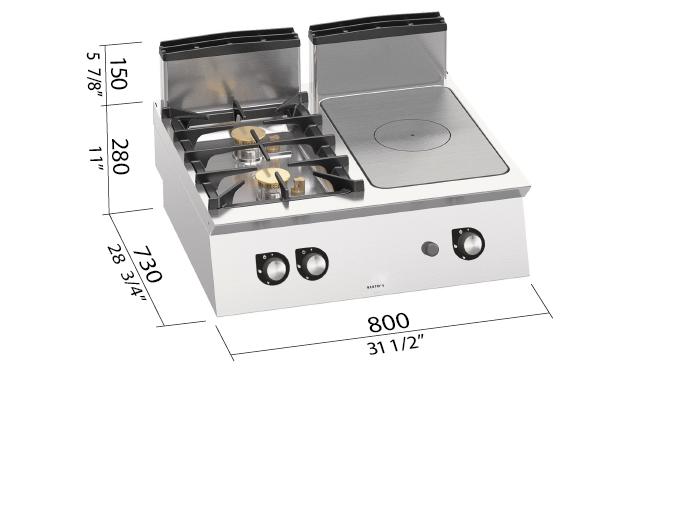

Dimensions

Dimensions
