BOILING PANS - MAXIMA 900

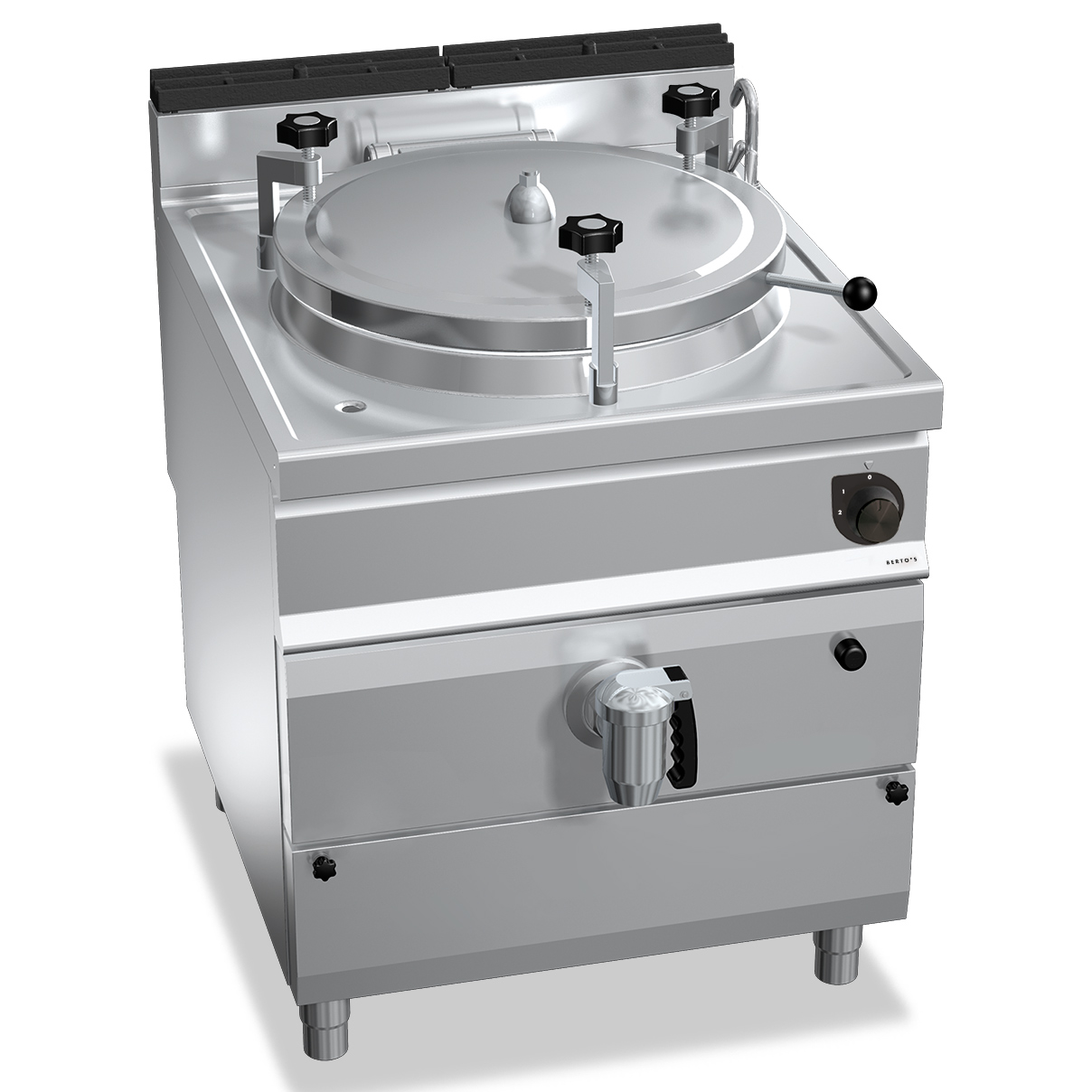

200 L GAS BOILING PAN (PRESSURE TANK) WITH DIRECT HEATING

Model G9P20DA
Code 20846201
Worktop and front panels in AISI 304 stainless steel. Inside made of stainless steel.AISI 304 stainless steel cooking container with 15/10 thickness, AISI 316 stainless steel bottom with 20/10 thickness. Direct heating generated by tubular stainless steel burners with optimized combustion, with thermocouple safety valve and protected pilot flame. Piezoelectric ignition with rubber protection. Hot and cold water taps on the worktop with an articulated spout for filling and washing the container. 2” draining tap of chromed brass with athermic handle. Four screw fixing blocks that can be adjusted manually with a fixed calibration valve of 0.05 bar. Temperature regulation by means of a handle tap to adjust the water level.

Technical specifications

Technical specifications

Tank
L of capacity 200
Details
total gas kW 32
total electric kW 0.0006
Electrical voltage 220-240 V
Measurements
Width 800
Depth 900
Height 900
Weight 137
Volume 0.65
Package
Package width 970
Package depth 1070
Package height 1270
Package weight 167
Package volume 1.32

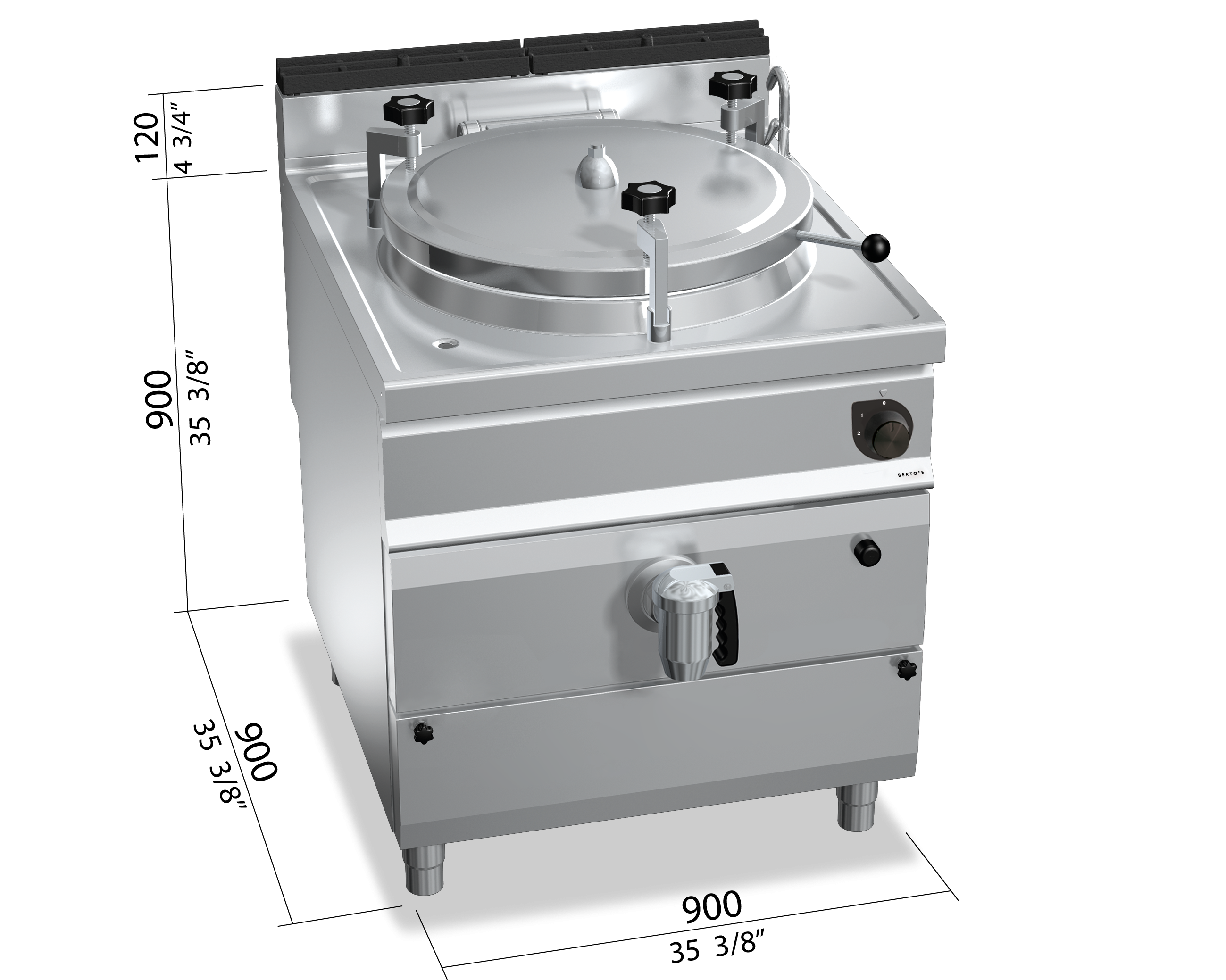

Dimensions

Dimensions
