200 L ELECTRIC BOILING PAN WITH INDIRECT HEATING
Download the image
BOILING PANS - MAXIMA 900

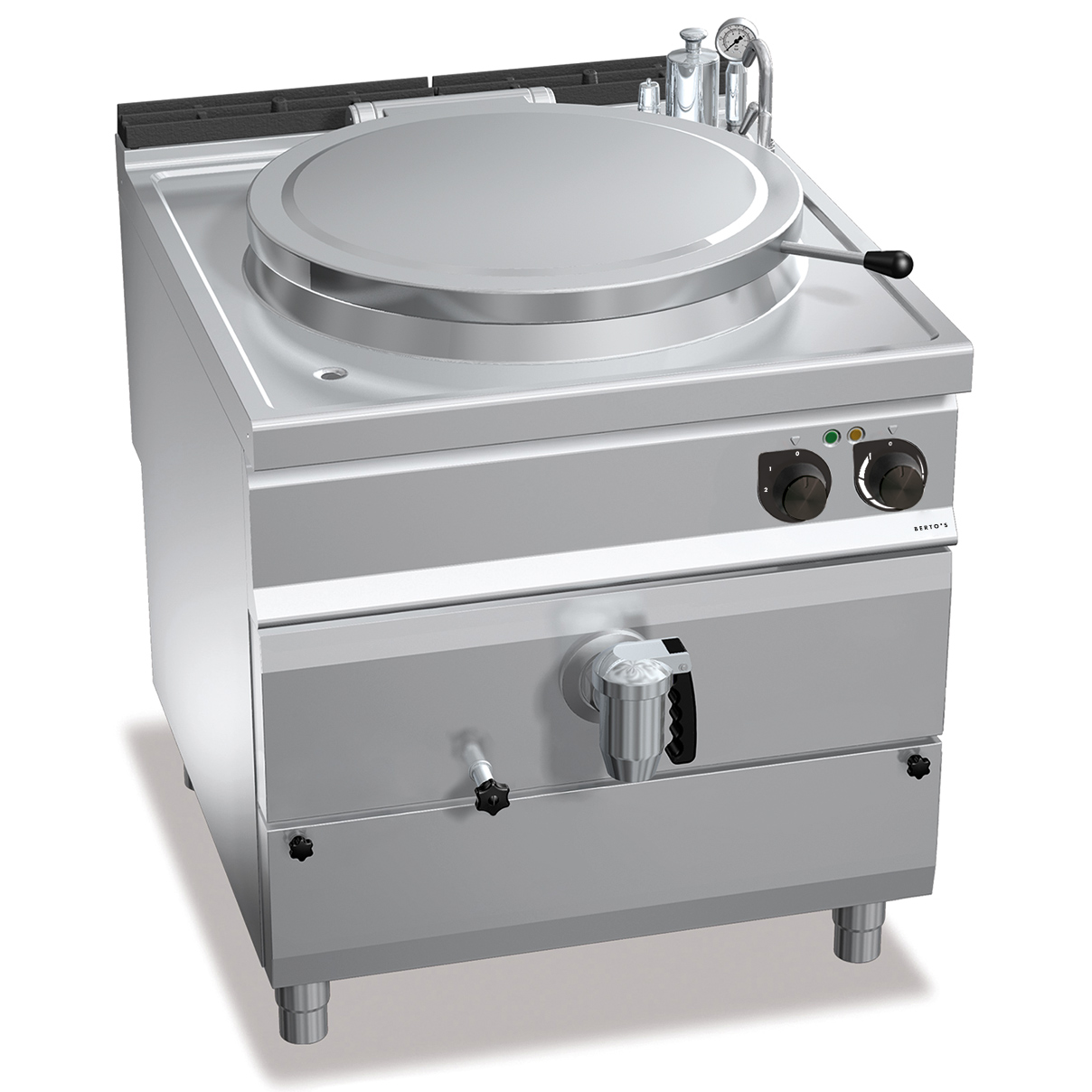

200 L ELECTRIC BOILING PAN WITH INDIRECT HEATING

Model E9P20I
Code 20847000
Worktop and front panels in AISI 304 stainless steel. Inside made of stainless steel.AISI 304 stainless steel cooking container with 15/10 thickness, AISI 316 stainless steel bottom with 20/10 thickness. Jacket with bottom and walls of AISI 304 stainless steel, bottom with 20/10 thickness, walls with 15/10 thickness. Indirect type heating with low pressure steam (0.5 bar) generated inside the jacket through armored resistance from Incoloy equipped with a safety thermostat. Hot and cold water taps on the worktop with an articulated spout for filling and washing the container and jacket. 2” draining tap of chromed brass with athermic handle. Mechanical gauge with a jacket pressure indicator. Power supply regulated by a 3-position switch. Separate control for temperature regulation. Pilot light and temperature indicator light. Doublewalled lid.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 200
Details
total electric kW 32
Electrical voltage 380-415 V3N
Measurements
Width 1000
Depth 1150
Height 900
Weight 219
Volume 1.03
Package
Package width 1100
Package depth 1360
Package height 1270
Package weight 261
Package volume 1.9

Dimensions

Dimensions
