BOILING PANS - MAXIMA 900

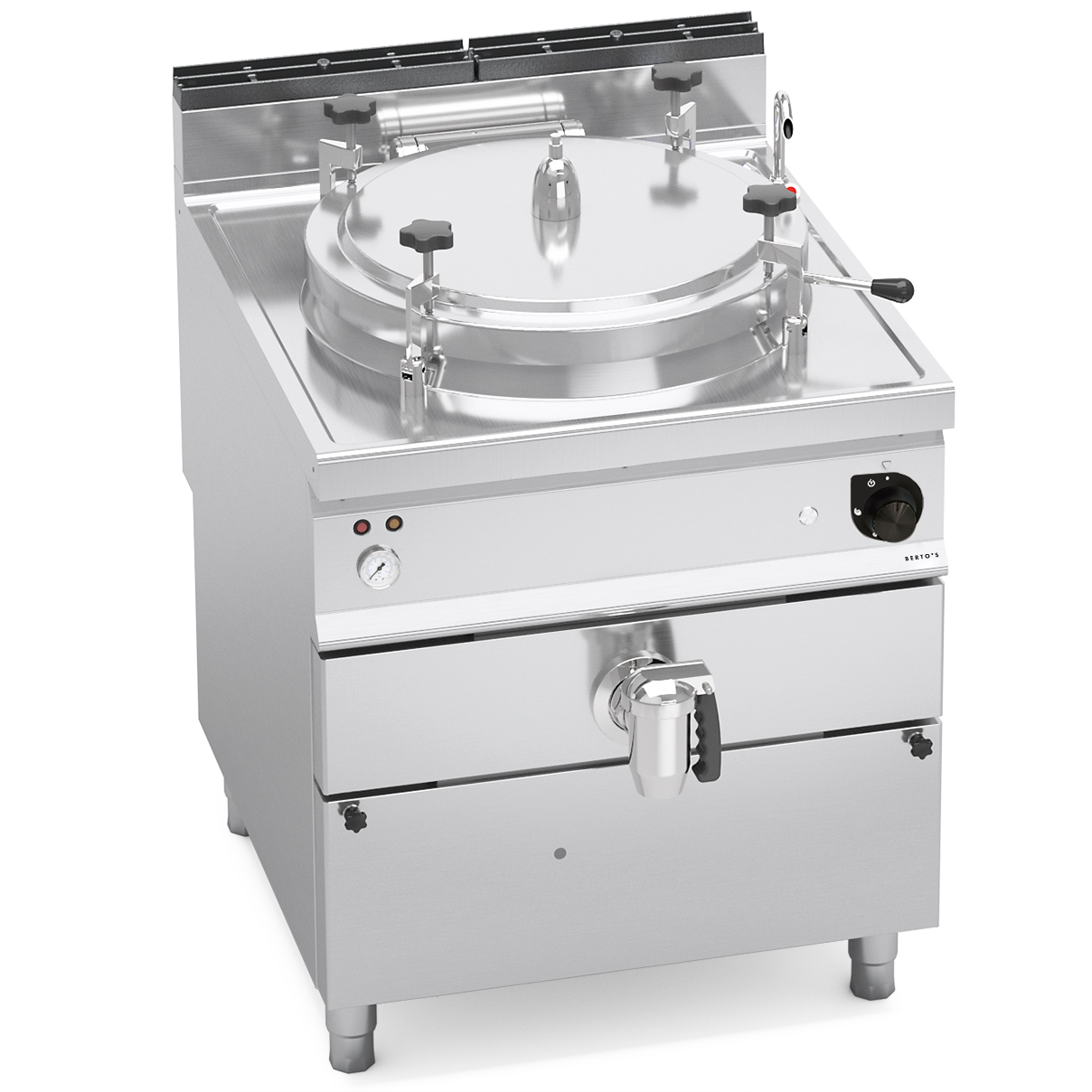

100 L GAS BOILING PAN WITH INDIRECT HEATING (PRESSURE TANK)

Model G9P10IA
Code 20831203
Worktop and front panels made of AISI 304 stainless steel. Inside made of stainless steel.AISI 304 stainless steel cooking container with 15/10 thickness, AISI 316 stainless steel bottom with 20/10 thickness. Jacket with bottom and walls of AISI 304 stainless steel, bottom with 20/10 thickness, walls with 15/10 thickness. Indirect type heating with low pressure steam (0.5 bar) generated inside the jacket through tubular stainless steel burners with optimized combustion, with thermocouple safety valve and protected pilot flame. Piezoelectric ignition with rubber protection. Hot and cold water taps on the worktop with an articulated spout for filling and washing the container and the jacket. 2” draining tap of chromed brass with athermic handle. Four screw fixing blocks that can be adjusted manually with a fixed calibration valve of 0.05 bar. Temperature regulation by means of a handle tap to adjust the water level.

Technical specifications

Technical specifications

Tank
L of capacity 100
Details
total gas kW 20.9
total electric kW 0.03
Electrical voltage 220-240 V
Measurements
Width 800
Depth 900
Height 900
Weight 140
Volume 0.65
Package
Package width 870
Package depth 1070
Package height 1270
Package weight 160
Package volume 1.18
