REFRIGERATED COUNTER SMART 820 -18-22°C
Download the image
Smart Refrigerated Counters - 1 door - Counters

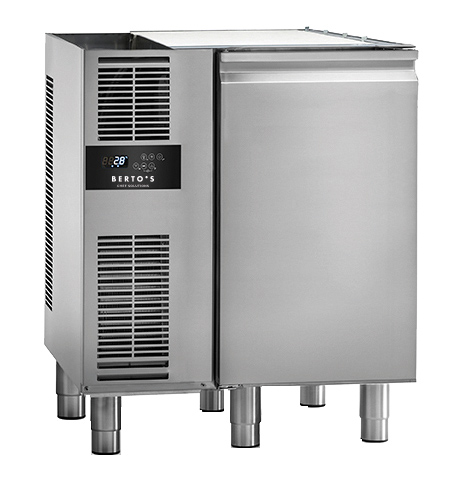

REFRIGERATED COUNTER SMART 820 -18-22°C

Model COUSM82BT
Code 06615040
  • Refrigerated counter without worktop.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Motor inside the technical compartment.
  • Forced ventilated refrigeration with protected evaporators positioned between the compartments.
  • 60 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
  • Tested with external working environment temperatures up to 43°C, efficiency equivalent to energy class 5.
  • Automatic defrosting with electric resistance.
  • Automatic evaporation of condensate water by means of a copper heat exchanger.
  • Rounded internal corners and removable parts to facilitate cleaning.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 96
Details
total electric kW 0.24
Electrical voltage 230 V / 50 Hz
Preservation
Range -18/-22 °C
Gas R290
Energy class E
Climate class 5
Electrical consumption (kWh/year) 2248
Useful net volume 96
Dimensions (mm) 820x700x860
Absorbed power (W) 240
Absorbed power (A) 1.7
Electrical power (Volt/Ph/Hz) 230/1/50
Package dimensions (mm) 1370x750x1100
Net weight (kg) 88
Gross weight (kg) 110
Measurements
Width 820
Depth 700
Height 860
Weight 88
Volume 0.494
Package
Package width 1370
Package depth 750
Package height 1100
Package weight 110
Package volume 1.13

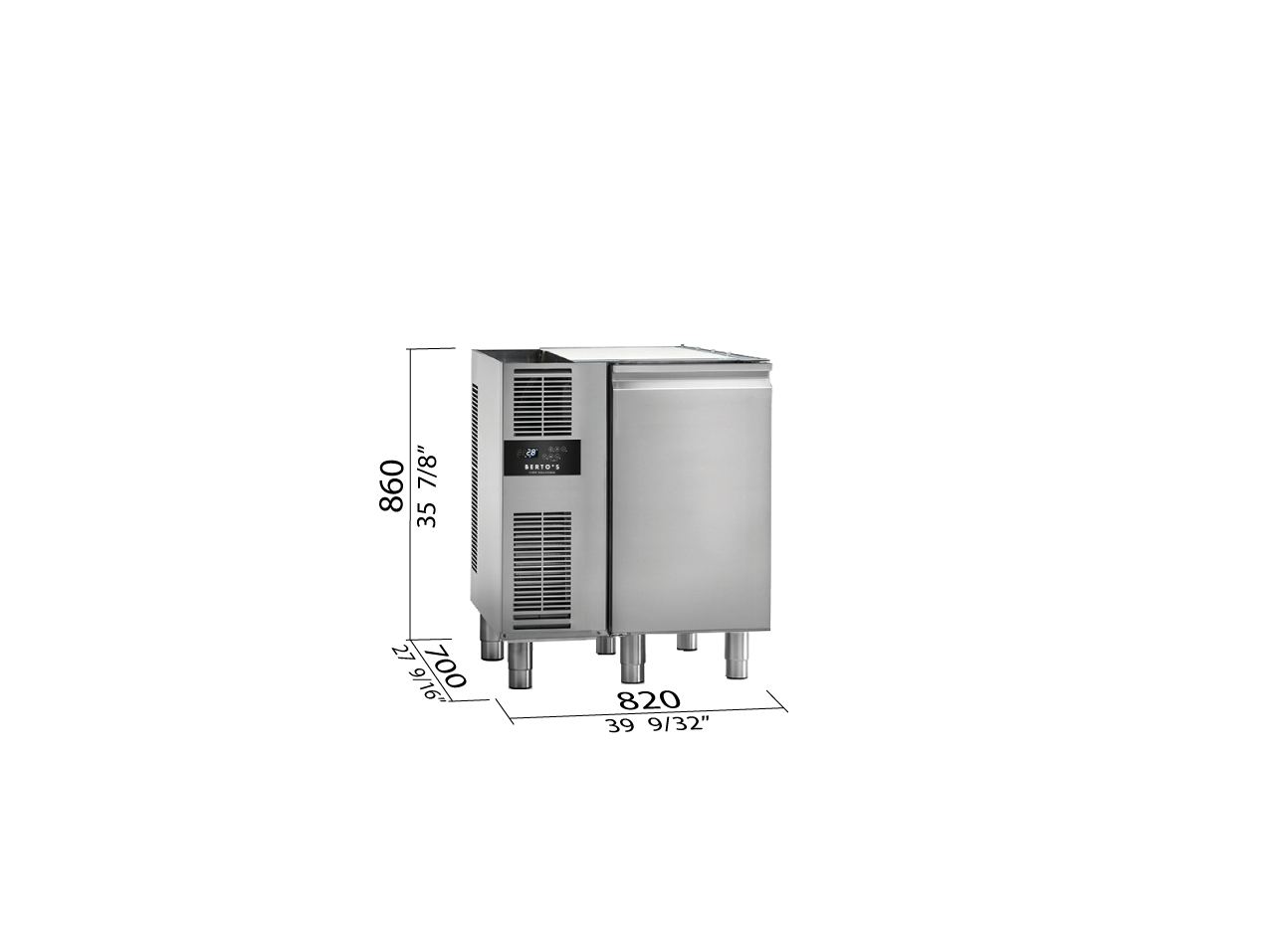

Dimensions

Dimensions
