REFRIGERATED COUNTER SMART 820 0+8°C PRA
Download the image
Smart Refrigerated Counters - 1 door - Counters

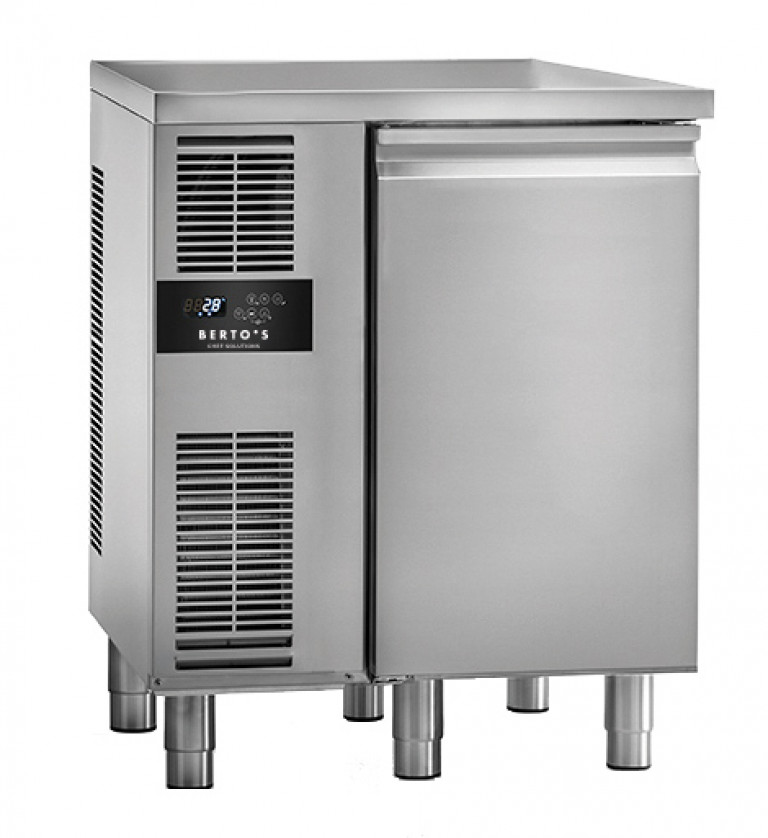

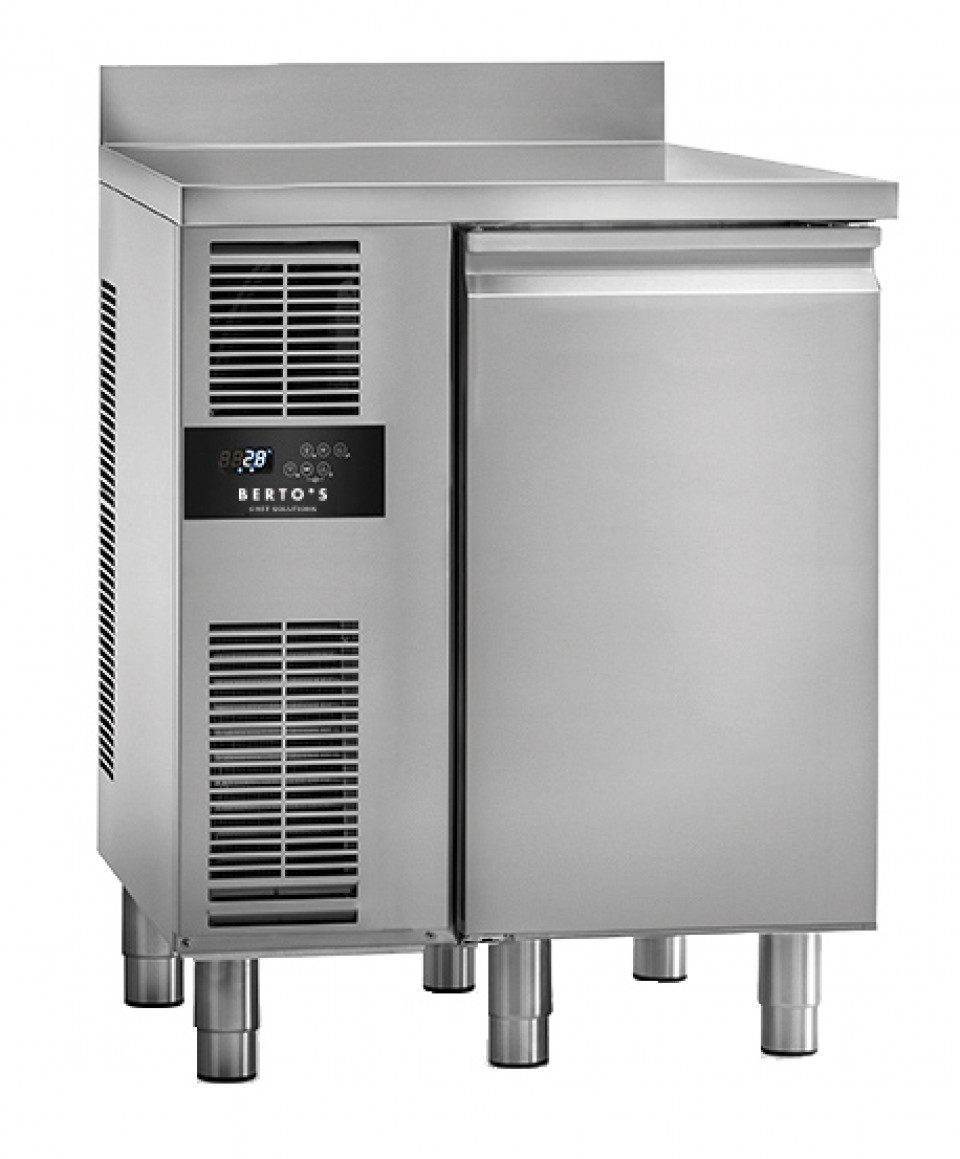

REFRIGERATED COUNTER SMART 820 0+8°C PRA

Model COUSM82TNPRA
Code 06610030
  • Refrigerated counter with AISI 304 stainless steel worktop with splashback h 100 mm.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Motor inside the technical compartment.
  • Forced ventilated refrigeration with protected evaporators positioned between the compartments.
  • 60 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
  • Tested with external working environment temperatures up to 43°C, efficiency equivalent to energy class 5.
  • Automatic defrosting with compressor cut off in the 0 /+8°C version.
  • Automatic defrosting with electric resistance in the -2 /+8°C version.
  • Automatic evaporation of condensate water by means of a copper heat exchanger.
  • Rounded internal corners and removable parts to facilitate cleaning.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 0.21
Electrical voltage 220-240 V / 50 Hz
Preservation
Range 0/+8 °C
Gas R290
Energy class A
Climate class 5
Electrical consumption (kWh/year) 416
Useful net volume 96

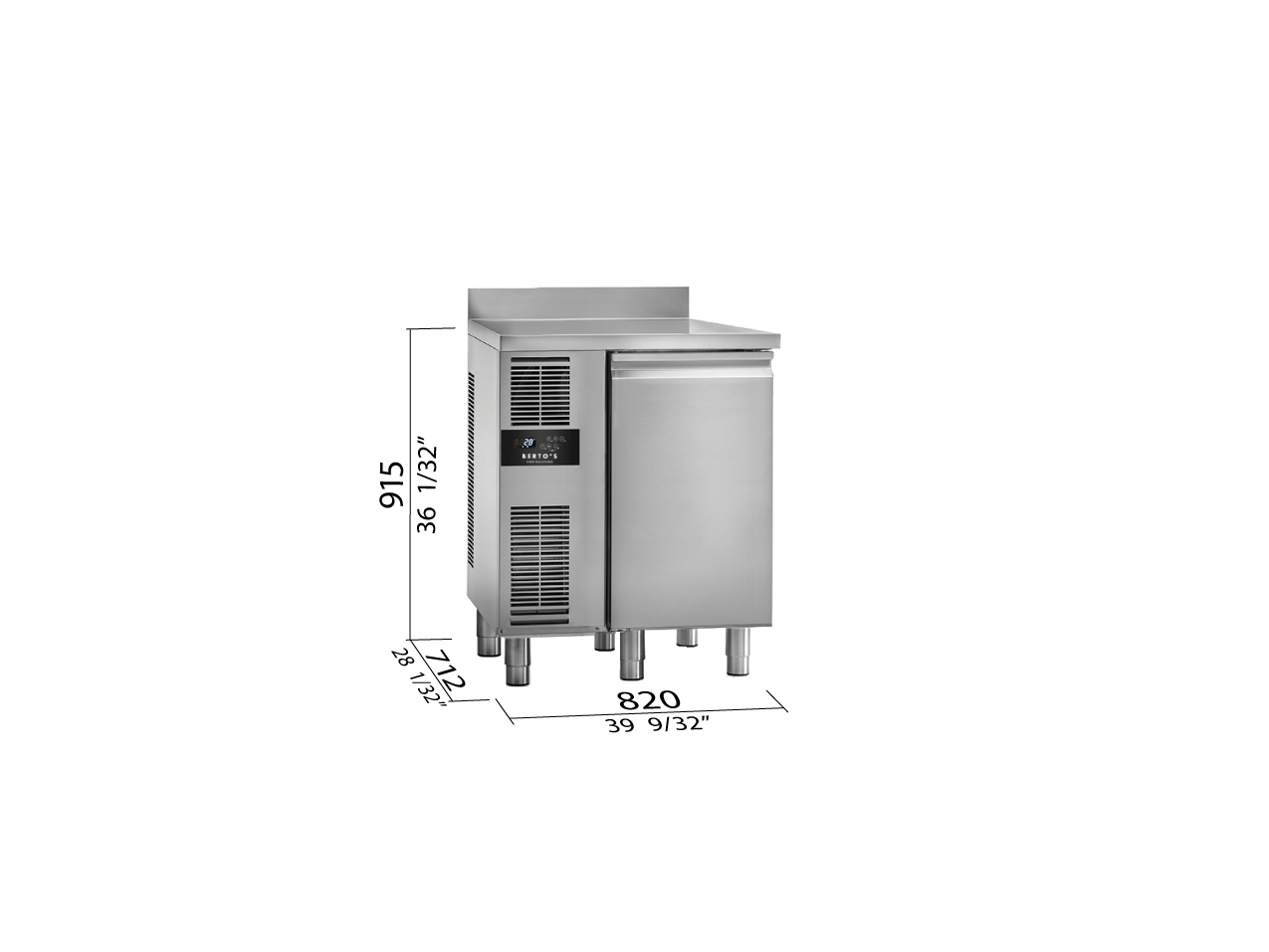

Dimensions (mm) 820x712x915
Absorbed power (W) 215
Absorbed power (A) 2.34
Electrical power (Volt/Ph/Hz) 230/1/50
Package dimensions (mm) 1370x750x1100
Net weight (kg) 88
Gross weight (kg) 110
Measurements
Width 820
Depth 712
Height 915
Weight 88
Volume 0.34
Package
Package width 1370
Package depth 750
Package height 1100
Package weight 110
Package volume 1.13

Dimensions

Dimensions

All products of the line Counters

REFRIGERATED COUNTER SMART 820 0+8°C P
REFRIGERATED COUNTER SMART 820 0+8°C P
Counters
<ul> <li>Refrigerated counter with AISI 304 stainless steel worktop.</li> <li>Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.</li> <li>Motor inside the technical compartment.</li> <li>Forced ventilated refrigeration with pr...
REFRIGERATED COUNTER SMART 820 0+8°C PR
REFRIGERATED COUNTER SMART 820 0+8°C PR
Counters
<ul> <li>Refrigerated counter with AISI 304 stainless steel worktop.</li> <li>Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.</li> <li>Motor inside the technical compartment.</li> <li>Forced ventilated refrigeration with pr...
REFRIGERATED COUNTER SMART 820 0+8°C PA
REFRIGERATED COUNTER SMART 820 0+8°C PA
Counters
<ul> <li>Refrigerated counter with AISI 304 stainless steel worktop with splashback h 100 mm.</li> <li>Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.</li> <li>Motor inside the technical compartment.</li> <li>Forced ventila...
REFRIGERATED COUNTER SMART 820 0+8°C PRA
REFRIGERATED COUNTER SMART 820 0+8°C PRA
Counters
<ul> <li>Refrigerated counter with AISI 304 stainless steel worktop with splashback h 100 mm.</li> <li>Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.</li> <li>Motor inside the technical compartment.</li> <li>Forced ventila...

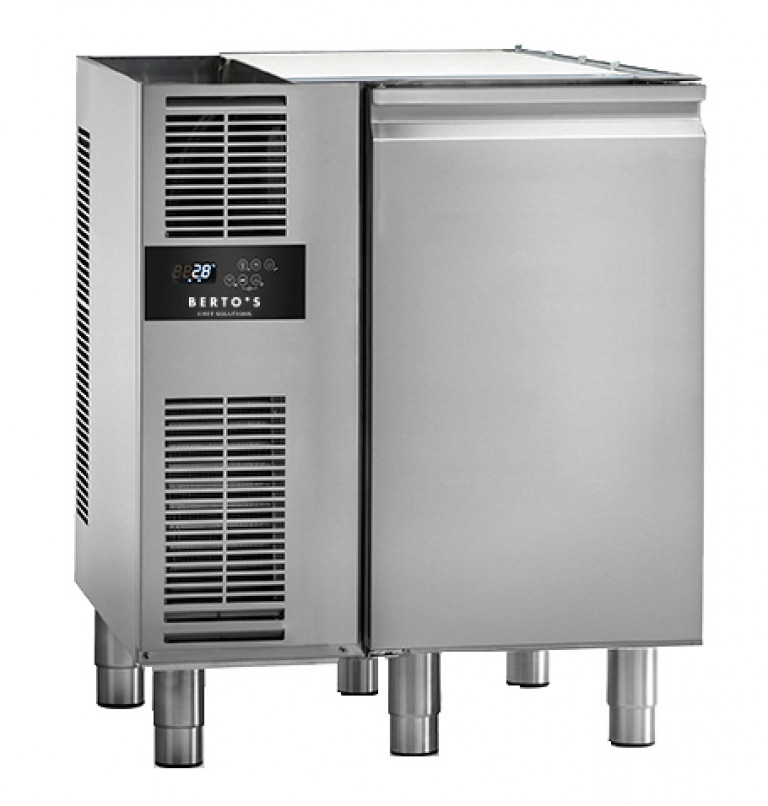

REFRIGERATED COUNTER SMART 820 0+8°C
