REFRIGERATED COUNTER SMART 1160 0+8°C PA
Download the image
Refrigerated Counters - 2 doors - Counters

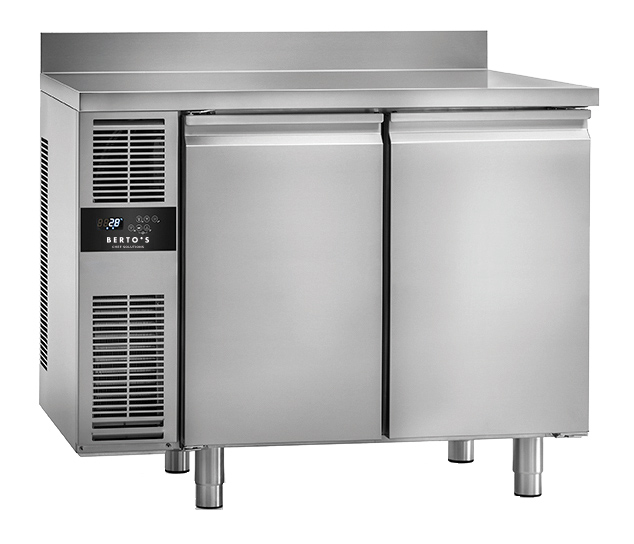

REFRIGERATED COUNTER SMART 1160 0+8°C PA

Model COUSM116TNPA
Code 06630020
  • Refrigerated counter with AISI 304 stainless steel worktop with splashback h 100 mm.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Motor inside the technical compartment.
  • Forced ventilated refrigeration with protected evaporators positioned between the compartments.
  • 60 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
  • Tested with external working environment temperatures up to 43°C, efficiency equivalent to energy class 5.
  • Automatic defrosting with compressor cut off in the 0 /+8°C version.
  • Automatic defrosting with electric resistance in the -2 /+8°C version.
  • Automatic evaporation of condensate water by means of a copper heat exchanger.
  • Rounded internal corners and removable parts to facilitate cleaning.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 0.21
Electrical voltage 220-240 V / 50 Hz
Preservation
Range 0/+8 °C
Gas R290
Energy class A
Climate class 5
Electrical consumption (kWh/year) 449
Useful net volume 192
Dimensions (mm) 1160x700x900
Absorbed power (W) 215
Absorbed power (A) 2.34
Electrical power (Volt/Ph/Hz) 230/1/50
Package dimensions (mm) 1370x750x1100
Net weight (kg) 97
Gross weight (kg) 120
Measurements
Width 1160
Depth 700
Height 900
Weight 97
Volume 0.812
Package
Package width 1370
Package depth 750
Package height 1100
Package weight 120
Package volume 1.13

Dimensions

Dimensions
