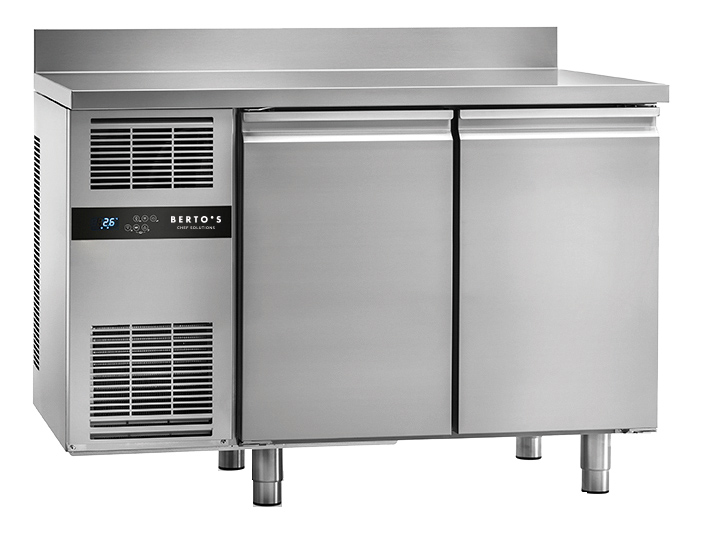

REFRIGERATED COUNTER 1280 -18-22°C PA
Download the image
Refrigerated Counters - 2 doors - Counters

REFRIGERATED COUNTER 1280 -18-22°C PA

Model COU128BTPA
Code 06625020
  • Refrigerated counter with AISI 304 stainless steel worktop with splashback h 100 mm.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Motor inside the technical compartment.
  • Forced ventilated refrigeration with protected evaporators positioned between the compartments.
  • 60 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
  • Tested with external working environment temperatures up to 43°C, efficiency equivalent to energy class 5.
  • Automatic defrosting with electric resistance.
  • Automatic evaporation of condensate water by means of a copper heat exchanger.
  • Rounded internal corners and removable parts to facilitate cleaning.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 0.49
Electrical voltage 220-240 V / 50 Hz
Preservation
Range -18/-22 °C
Gas R290
Energy class D
Climate class 5
Electrical consumption (kWh/year) 2555
Useful net volume 192
Dimensions (mm) 1280x700x900
Absorbed power (W) 490
Absorbed power (A) 3.5
Electrical power (Volt/Ph/Hz) 230/1/50
Package dimensions (mm) 1370x750x1100
Net weight (kg) 107
Gross weight (kg) 130
Measurements
Width 1280
Depth 700
Height 900
Weight 107
Volume 0.896
Package
Package width 1370
Package depth 750
Package height 1100
Package weight 130
Package volume 1.13

Dimensions

Dimensions
