Refrigerated Bases - 3 doors - Bases

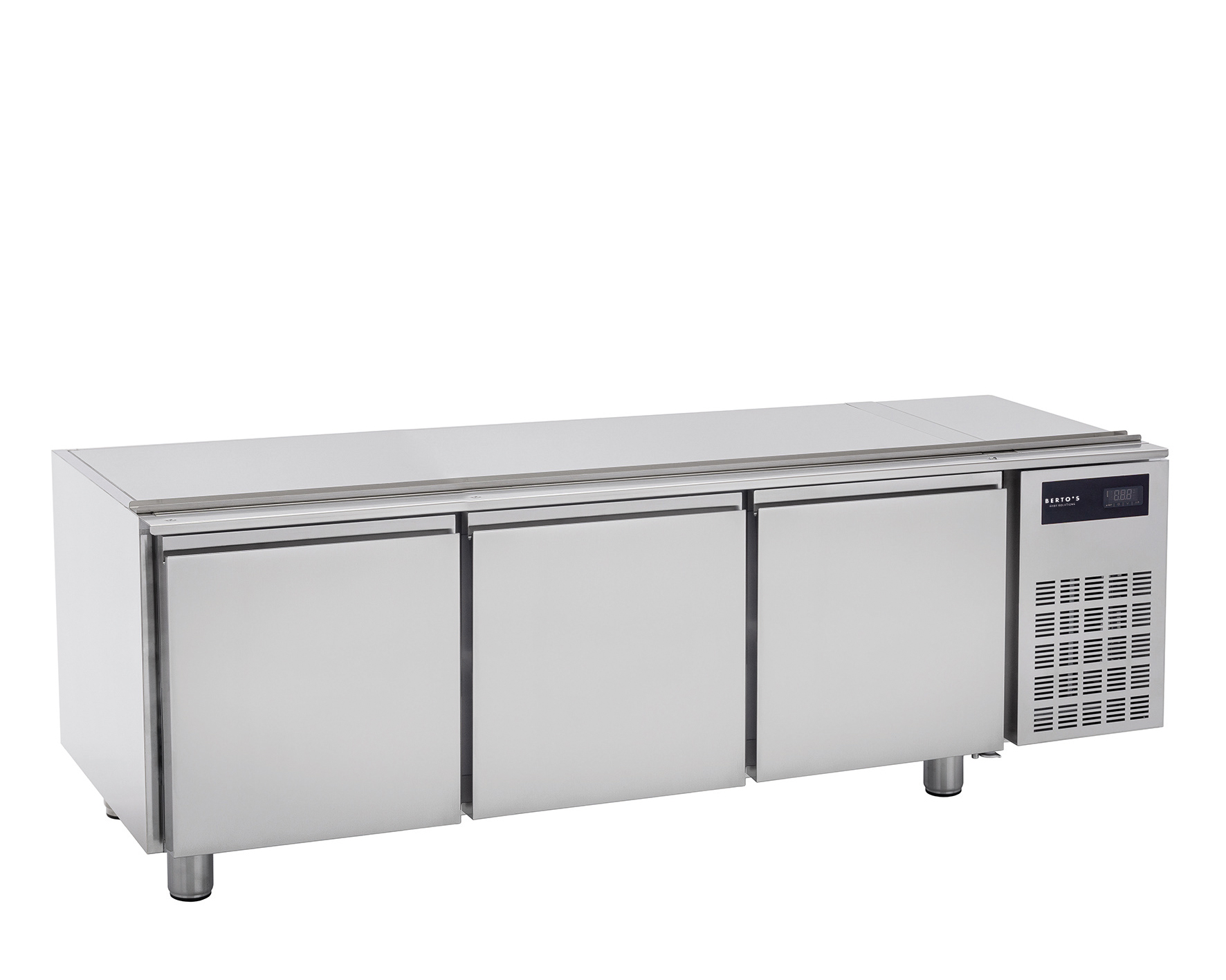

REFRIGERATED BASE 1600 - 3 DOORS

Model 9SF3P160
Code 13386500
Supporting refrigerator base for worktop cooking appliances.
Made from AISI 304 stainless steel, inside measurements 1/1 GN.
Available with doors or drawers.
Motor incorporated in the technical compartment.
The stainless steel structure has 60 mm thick insulation made by injecting HCFC free polyurethane resin. Automatic defrosting using heating elements, equipped with a device to dispose of condensation water by means of a heat exchanger in AISI 316 stainless steel.
Forced ventilated refrigeration with protected evaporators positioned between the compartments. Temperature control given by the rear panel electronic board with constant display.
The drawers are available with telescopic runners and are fully extractable. Working temperature range -2 °C /+10 °C.

Technical specifications

Technical specifications

Details
total electric kW 0.5
Electrical voltage 230 V / 50 Hz
Preservation
Range -2/+10 °C
Gas R290
Energy class A
Climate class 5
Electrical consumption (kWh/year) 642
Useful net volume 130
Dimensions (mm) 1600x750x610
Absorbed power (W) 350
Electrical power (Volt/Ph/Hz) 230/1/50
Package dimensions (mm) 1640x780x800
Net weight (kg) 121
Gross weight (kg) 140
Worktop without worktop (three doors)
Measurements
Width 1600
Depth 750
Height 610
Weight 121
Volume 0.61
Package
Package width 1640
Package depth 780
Package height 800
Package weight 140
Package volume 1.02

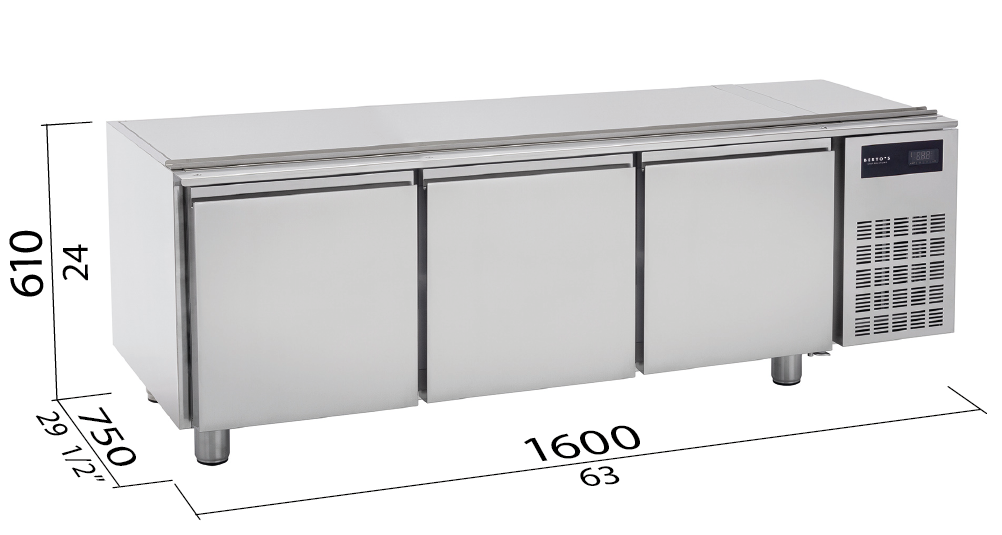

Dimensions

Dimensions
