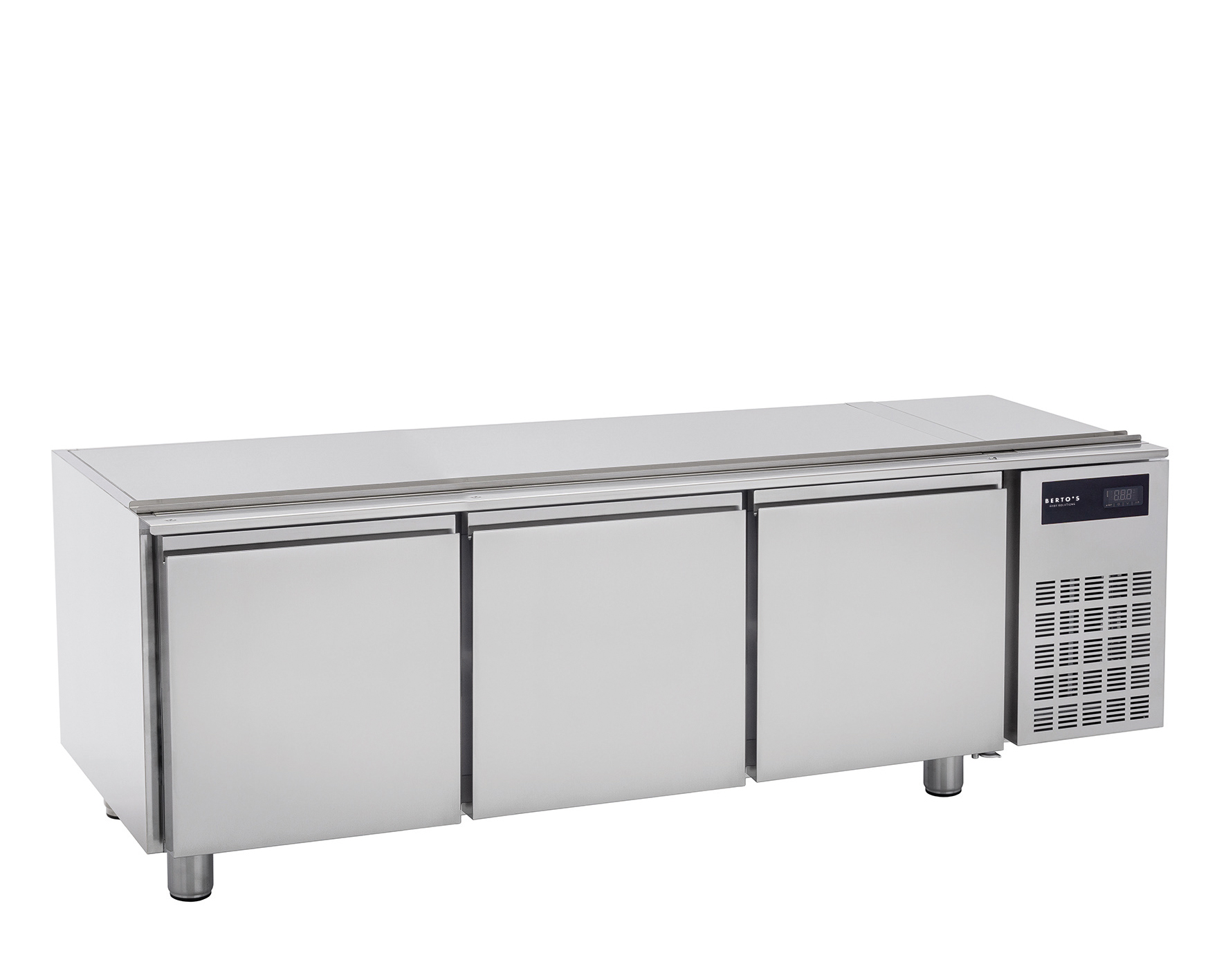

FREEZER BASE BT 1600 - 3 DOORS

Model 7SC3P160

Code 18386700

Supporting freezer base for worktop cooking appliances.
Made from AISI 304 stainless steel, inside measurements 1/1 GN.
Available with doors or drawers.
Motor incorporated in the technical compartment.
The stainless steel structure has 60 mm thick insulation made by injecting HCFC free polyurethane resin. Automatic defrosting using heating elements, equipped with a device to dispose of condensation water by means of a heat exchanger in AISI 316 stainless steel.
Forced ventilated refrigeration with protected evaporators positioned between the compartments. Temperature control given by the rear panel electronic board with constant display.
The drawers are available with telescopic runners and are fully extractable. Working temperature range -15 °C /-18 °C.

Show more Hide

Technical specifications

Details

total electric kW	0.55
Electrical voltage	220-240 V / 50 Hz

Preservation

Range	-15/-18 °C
Gas	R290
Energy class	C
Climate class	5
Electrical consumption (kWh/year)	2688
Useful net volume	130
Dimensions (mm)	1600x650x610
Absorbed power (W)	740
Electrical power (Volt/Ph/Hz)	230/1/50
Package dimensions (mm)	1640x660x800
Net weight (kg)	115
Gross weight (kg)	130
Worktop	without worktop (three doors)

Measurements

Width	1600
Depth	650
Height	610
Weight	115
Volume	0.86

Package

Package width	1640
Package depth	660
Package height	800
Package weight	130
Package volume	0.86
