Refrigerated Bases - 2 doors - Bases

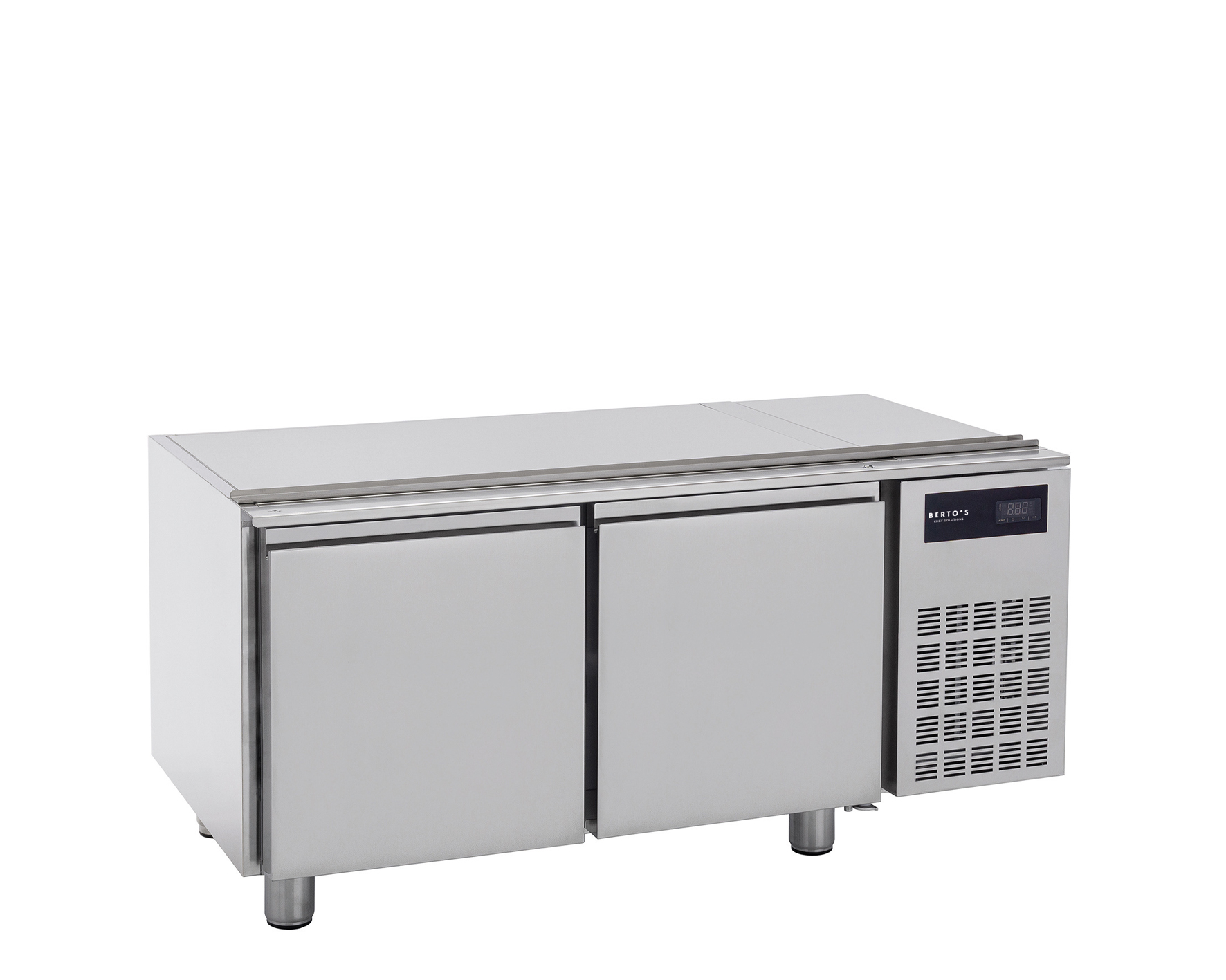

FREEZER BASE BT 1200 - 2 DOORS

Model 9SC2P120
Code 13385700
Supporting freezer base for worktop cooking appliances.
Made from AISI 304 stainless steel, inside measurements 1/1 GN.
Available with doors or drawers.
Motor incorporated in the technical compartment.
The stainless steel structure has 60 mm thick insulation made by injecting HCFC free polyurethane resin. Automatic defrosting using heating elements, equipped with a device to dispose of condensation water by means of a heat exchanger in AISI 316 stainless steel.
Forced ventilated refrigeration with protected evaporators positioned between the compartments. Temperature control given by the rear panel electronic board with constant display.
The drawers are available with telescopic runners and are fully extractable. Working temperature range -15 °C /-18 °C.

Technical specifications

Technical specifications

Details
total electric kW 0.5
Electrical voltage 230 V / 50 Hz
Preservation
Range -15/-18 °C
Gas R290
Energy class C
Climate class 5
Electrical consumption (kWh/year) 2015
Useful net volume 86
Dimensions (mm) 1200x750x610
Absorbed power (W) 740
Electrical power (Volt/Ph/Hz) 230/1/50
Package dimensions (mm) 1240x780x800
Net weight (kg) 95
Gross weight (kg) 115
Worktop without worktop (two doors)
Measurements
Width 1200
Depth 750
Height 610
Weight 95
Volume 0.46
Package
Package width 1240
Package depth 780
Package height 800
Package weight 115
Package volume 0.77

Dimensions

Dimensions
