Refrigerated Bases - 2 doors - Bases

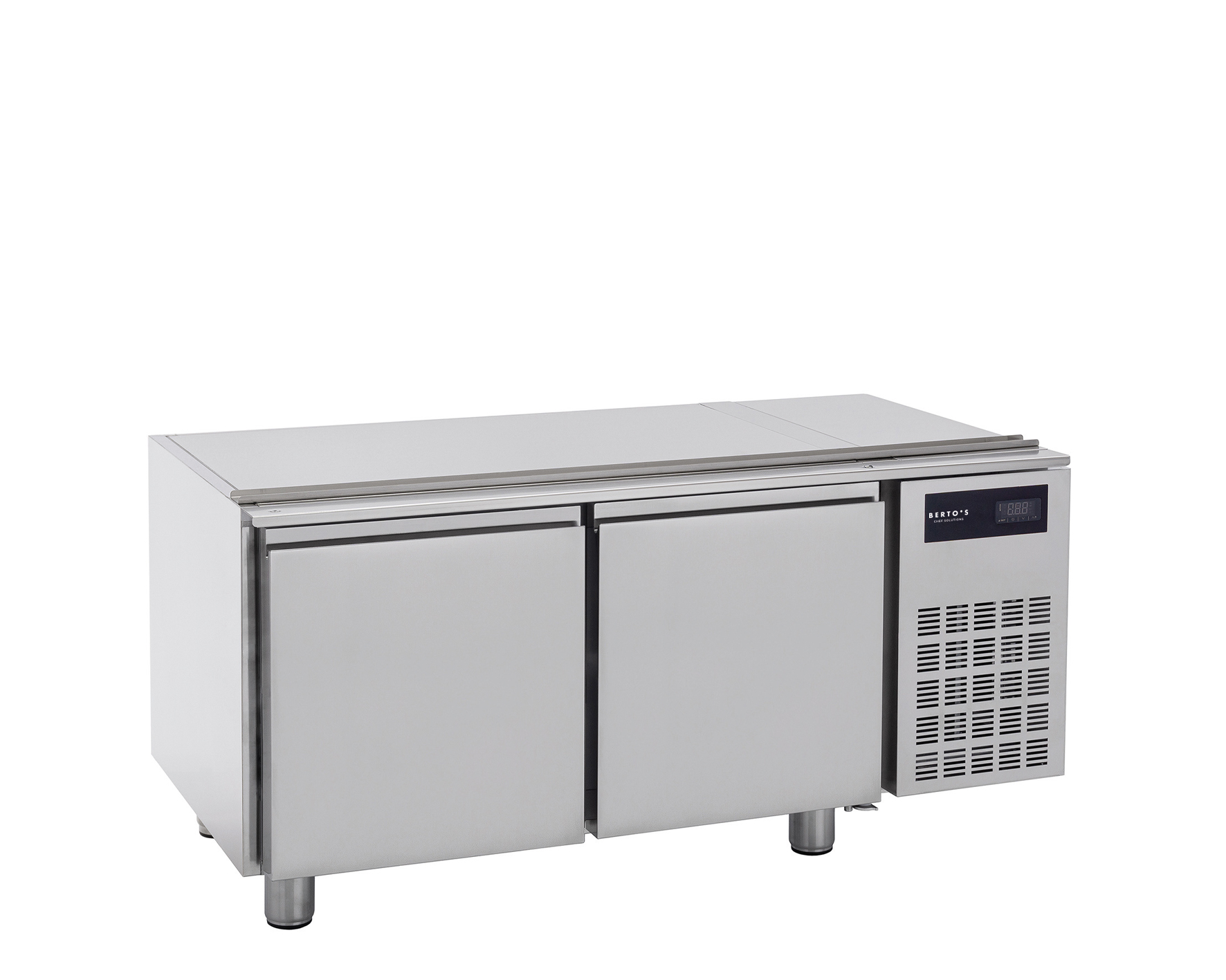

FREEZER BASE BT 1200 - 2 DOORS

Model 7SC2P120
Code 18385700
Supporting freezer base for worktop cooking appliances.
Made from AISI 304 stainless steel, inside measurements 1/1 GN.
Available with doors or drawers.
Motor incorporated in the technical compartment.
The stainless steel structure has 60 mm thick insulation made by injecting HCFC free polyurethane resin. Automatic defrosting using heating elements, equipped with a device to dispose of condensation water by means of a heat exchanger in AISI 316 stainless steel.
Forced ventilated refrigeration with protected evaporators positioned between the compartments. Temperature control given by the rear panel electronic board with constant display.
The drawers are available with telescopic runners and are fully extractable. Working temperature range -15 °C /-18 °C.

Technical specifications

Technical specifications

Details
total electric kW 0.5
Electrical voltage 230 V / 50 Hz
Preservation
Range -15/-18 °C
Gas R290
Energy class C
Climate class 5
Electrical consumption (kWh/year) 2015
Useful net volume 86
Dimensions (mm) 1200x650x610
Absorbed power (W) 740
Electrical power (Volt/Ph/Hz) 230/1/50
Package dimensions (mm) 1240x660x800
Net weight (kg) 90
Gross weight (kg) 105
Worktop without worktop (two doors)
Measurements
Width 1200
Depth 650
Height 610
Weight 90
Volume 0.65
Package
Package width 1240
Package depth 660
Package height 800
Package weight 105
Package volume 0.76

Dimensions

Dimensions
