ELECTRIC BRATT PAN MULTIFUNCTION
Download the image
MULTIFUNCTION BRAISER - S900

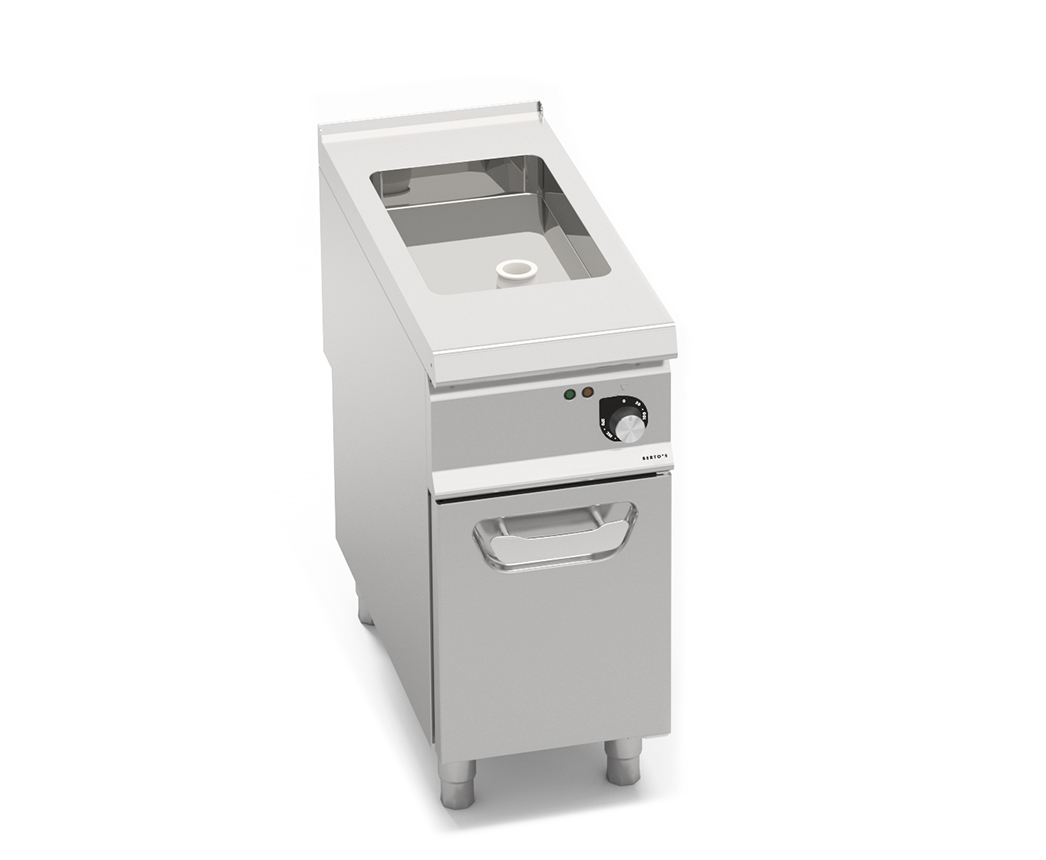

ELECTRIC BRATT PAN MULTIFUNCTION

Model SE9BR4/FIX
Code 13823300
Internal and external construction entirely in stainless steel, external surfaces with scotch brite finish.
Cooking tub with bottom and sides in AISI 304 stainless steel, 20/10 thick; radiant tub bottom in COMPOUND steel, 15 mm thick, mirror polished.
The two-component cooking surface combines a layer of steel, to provide more uniform cooking, and a top coating in AISI 316 stainless steel with a polished finish, which allows excellent cleaning, low radiation levels making the operator’s work more comfortable. 66 mm diameter discharge hole and duct in to the steel GN 1/1 tray. Manual reset safety thermostat.
Uniform heating to the bottom given by heating elements armoured in AISI 304 stainless steel, fixed to the bottom of the tub and coated with insulating material.
Power supply controlled by a switch and thermostat (100°C - 300°C).
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 11,5
Details
total electric kW 4.8
Electrical voltage 380-415 V3N
Measurements
Width 400
Depth 900
Height 900
Weight 70
Volume 0.32
Package
Package width 480
Package depth 1090
Package height 1270
Package weight 82
Package volume 0.66

Dimensions

Dimensions
