ELECTRIC BRATT PAN MULTIFUNCTION
Download the image
MULTIFUNCTION BRAISER - S900

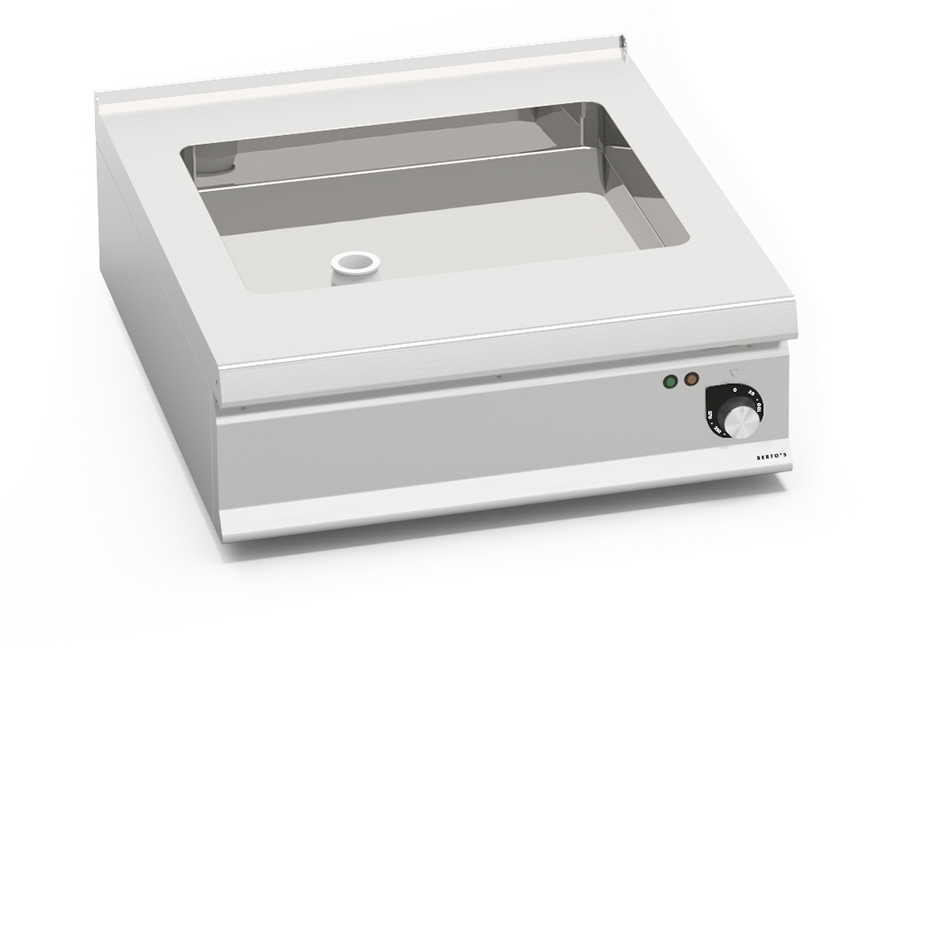

ELECTRIC BRATT PAN MULTIFUNCTION

Model LXE9BR8/FIX
Code 13823200
Internal and external construction entirely in stainless steel, external surfaces with scotch brite finish.
Cooking tub with bottom and sides in AISI 304 stainless steel, 20/10 thick: radiant tub bottom in COMPOUND steel, 15 mm thick, mirror polished.
The two-component cooking surface combines a layer of steel, to provide more uniform cooking, and a top coating in AISI 316 stainless steel with a polished finish, which allows excellent cleaning, low radiation levels making the operator’s work more comfortable.
66 mm diameter discharge hole and duct in to the steel GN 1/1 tray. Manual reset safety thermostat.
Uniform heating to the bottom given by heating elements armoured in Incoloy 800, fixed to the bottom of the tub and coated with insulating material.
Power supply controlled by a switch and thermostat (100°C - 300°C).
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 24
Details
total electric kW 9.6
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 900
Height 300
Weight 83
Volume 0.22
Package
Package width 860
Package depth 1070
Package height 680
Package weight 100
Package volume 0.63

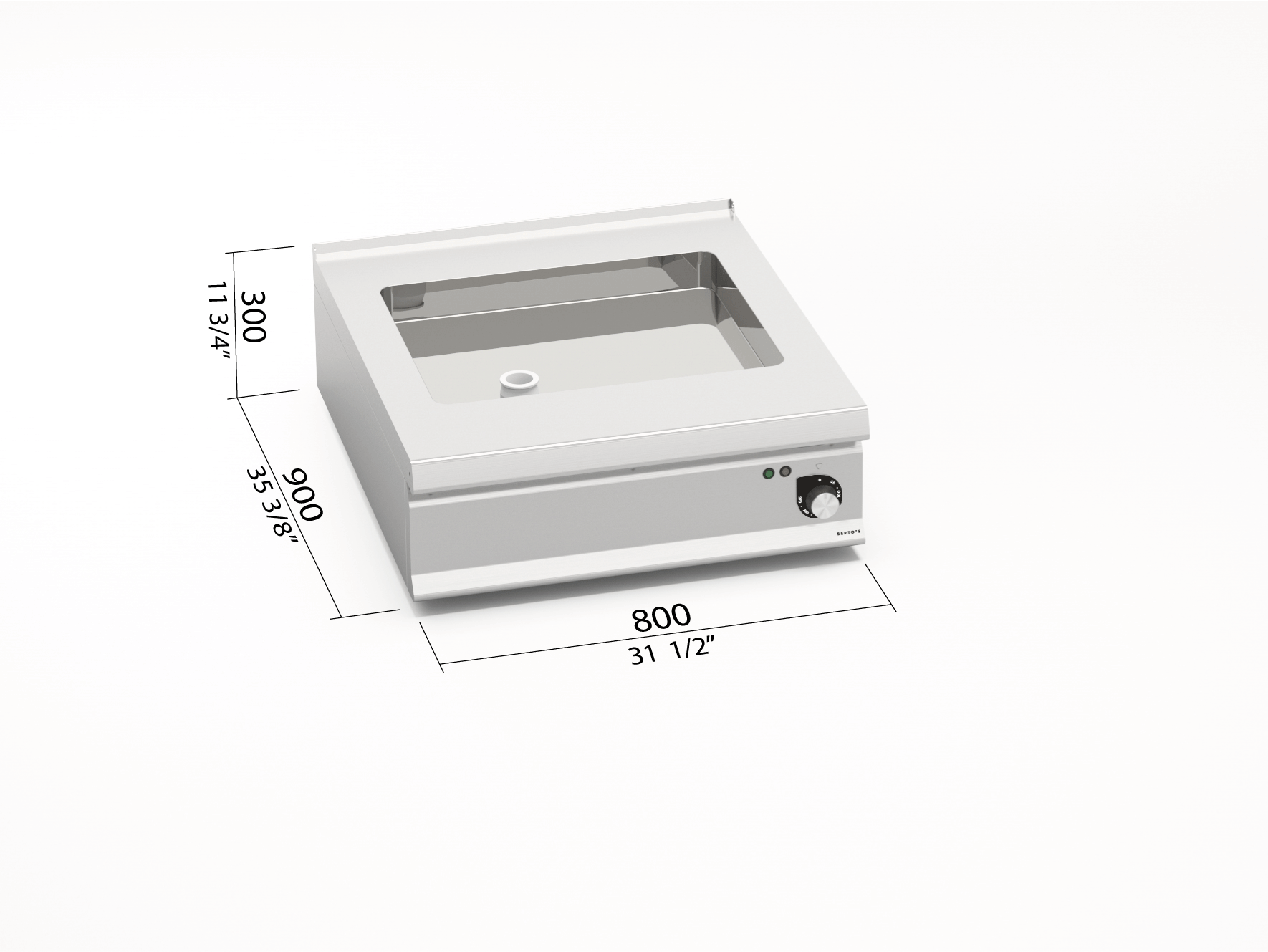

Dimensions

Dimensions
