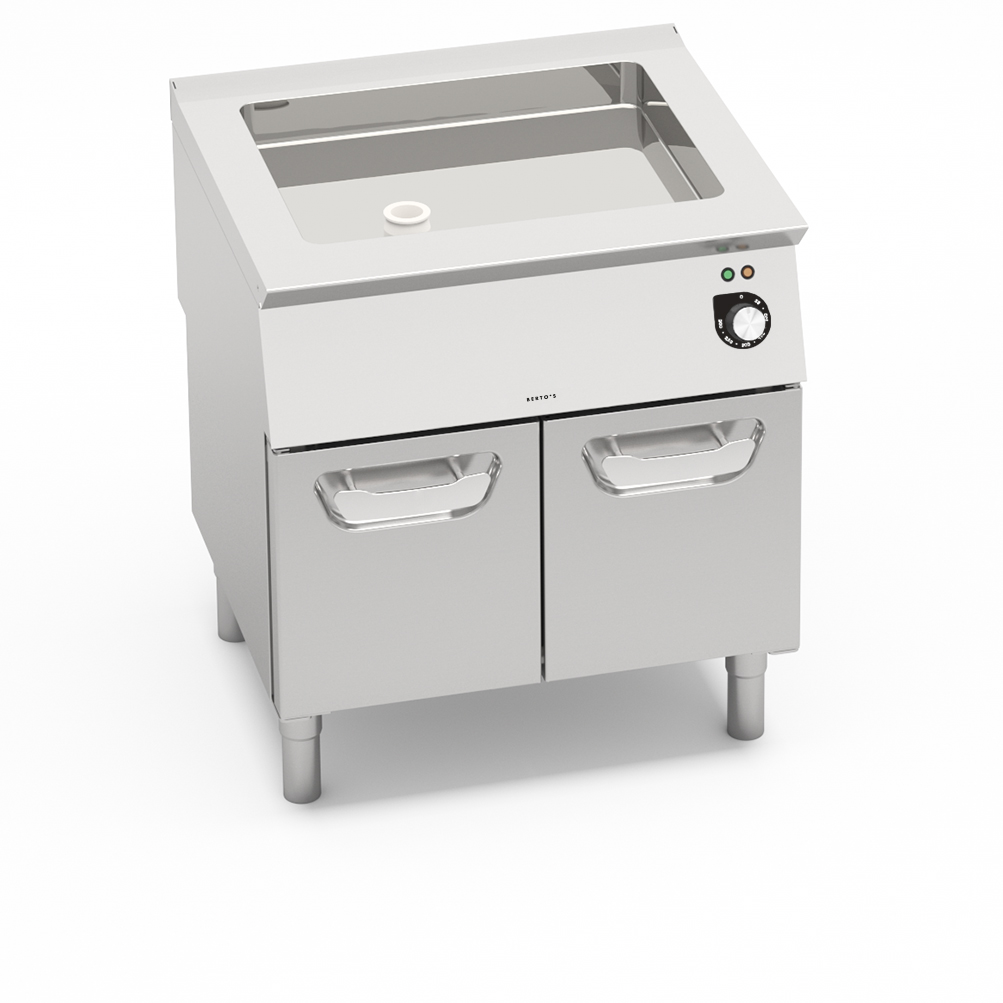

MULTIFUNCTION ELECTRIC BRAISER

Model SE7BR8/FIX

Code 07822000

Internal and external construction entirely in stainless steel, external surfaces with scotch brite finish.

Cooking tub with bottom and sides in AISI 304 stainless steel, 20/10 thick; radiant tub bottom in

COMPOUND steel, 15 mm thick, mirror polished.

The two-component cooking surface combines a layer of steel, to provide more uniform cooking, and a top coating in AISI 316 stainless steel with a polished finish, which allows excellent cleaning, low radiation levels making the operator’s work more comfortable.

50 mm diameter discharge hole and duct in to the steel GN 1/1 tray.

Manual reset safety thermostat.

Uniform heating to the bottom given by heating elements armoured in Incoloy-800, fixed to the bottom of the tub and coated with insulating material.

Power supply controlled by a switch and thermostat (100°C - 300°C).

Show more Hide

Technical specifications

Tank

L of capacity

Details

total electric kW	9.6
Electrical voltage	380-415 V3N

Measurements

Width	800
Depth	730
Height	900
Weight	110
Volume	0.53

Package

Package width	880
Package depth	800
Package height	1210
Package weight	126
Package volume	0.84

MULTIFUNCTION ELECTRIC BRAISER

Technical specifications

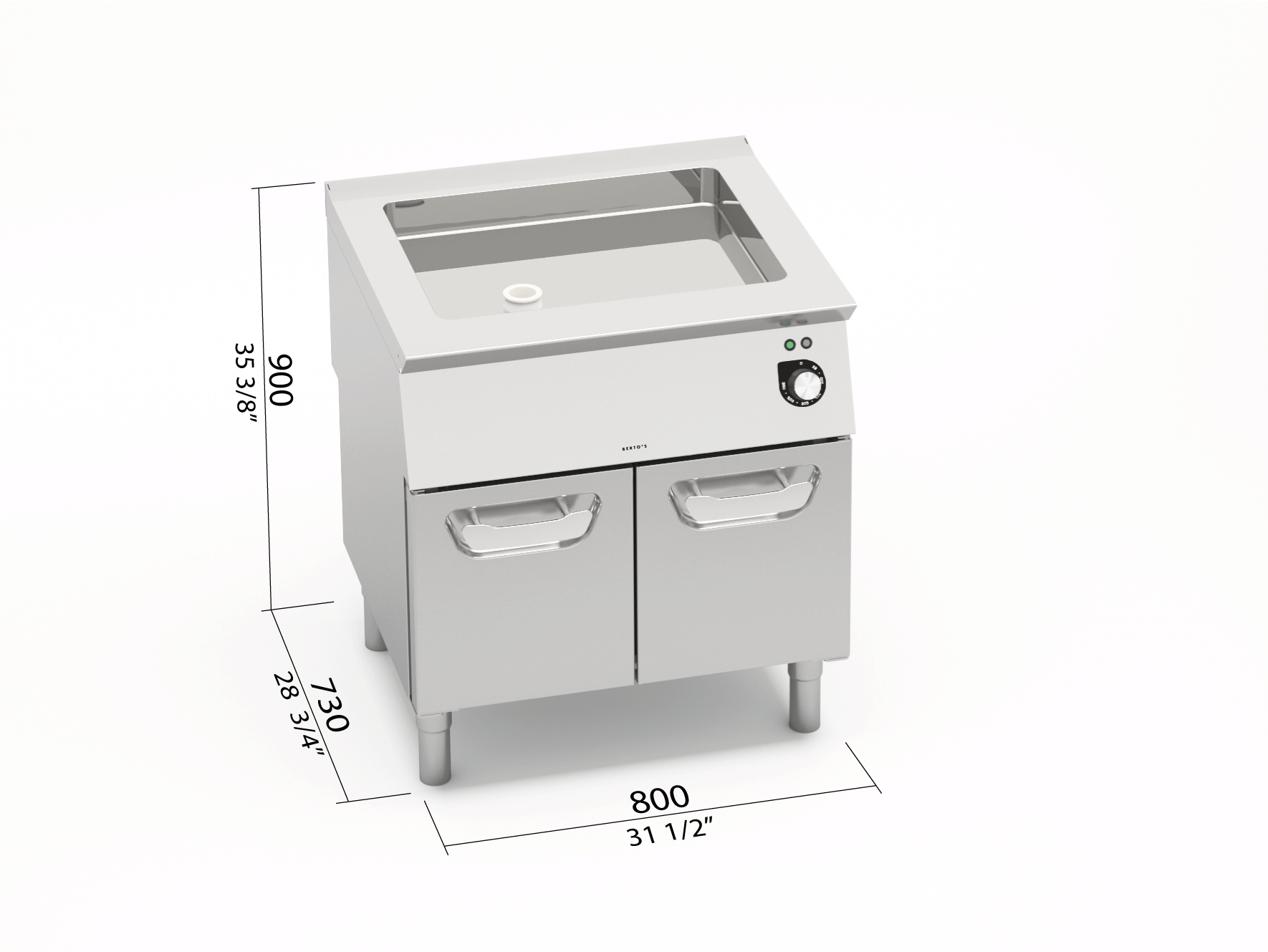

Dimensions

All products of the line S700
