4-ZONE INFRARED TOP ON CABINET
Download the image
INFRARED AND INDUCTION COOKERS - MAXIMA 900

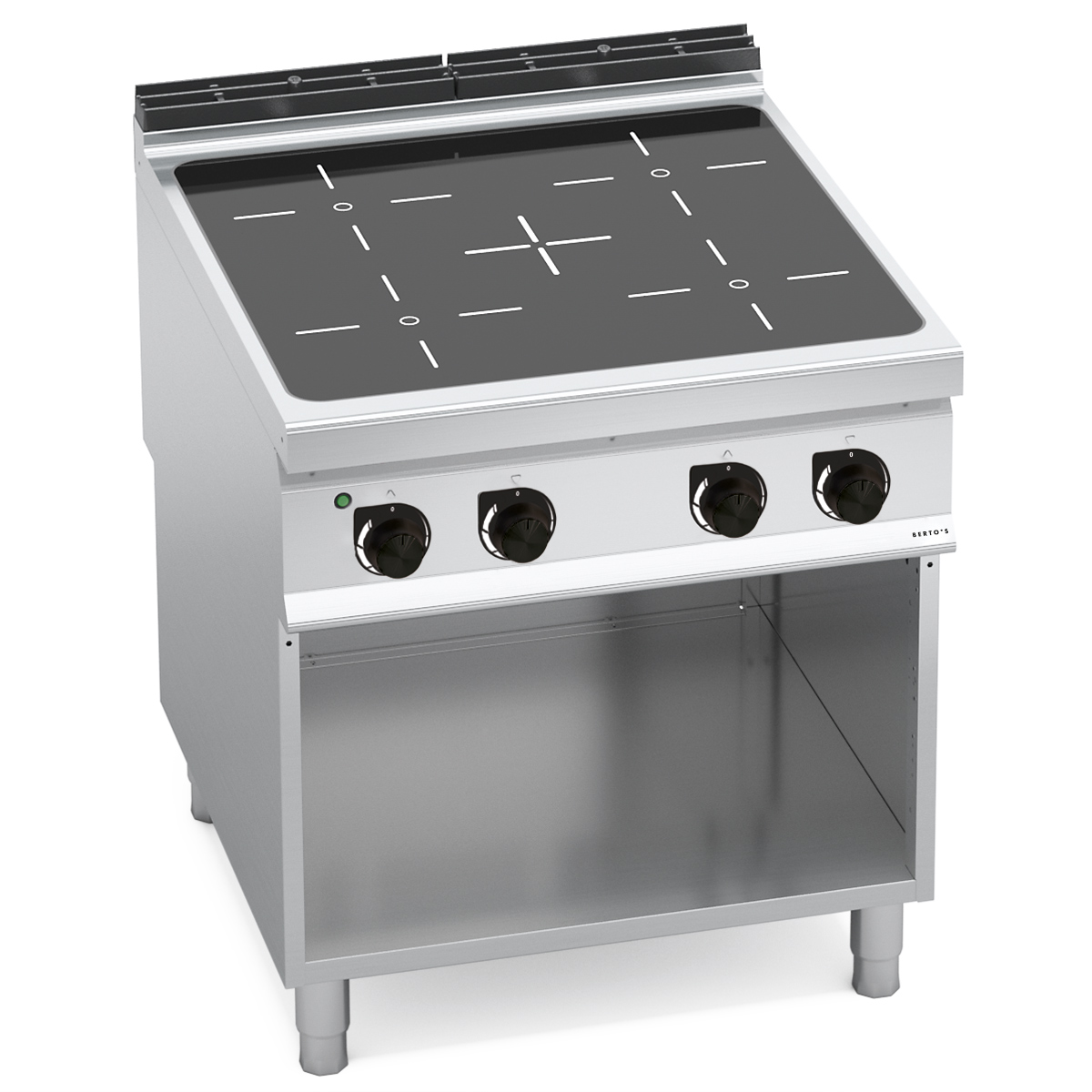

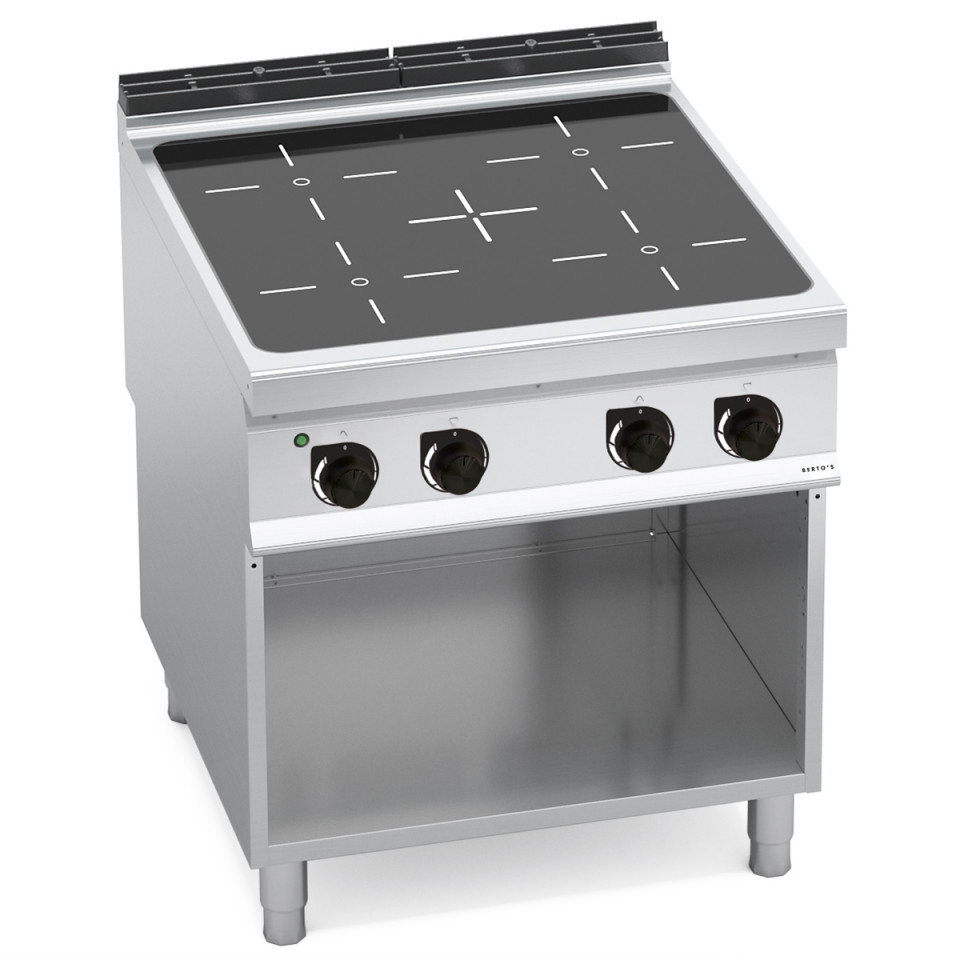

4-ZONE INFRARED TOP ON CABINET

Model E9P4MP/VTR
Code 20734200
Worktop and front panels made of AISI 304 stainless steel. Inside made of stainless steel. Pyroceram top with a thickness of 6 mm. Electrical resistances able to reach high temperatures (500 °C) to heat the cooking top with irradiation. Heating circuit in square zones 300 x 300 mm and 4 kW of power. The zones are marked with proper serigraphs that allow the proper positioning of the pans.After switching off each zone, a light signals residual heat up to 60 °C to safe-guard the operator.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 16
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 900
Height 900
Weight 72
Volume 0.65
Package
Package width 865
Package depth 1080
Package height 1180
Package weight 91
Package volume 1.1

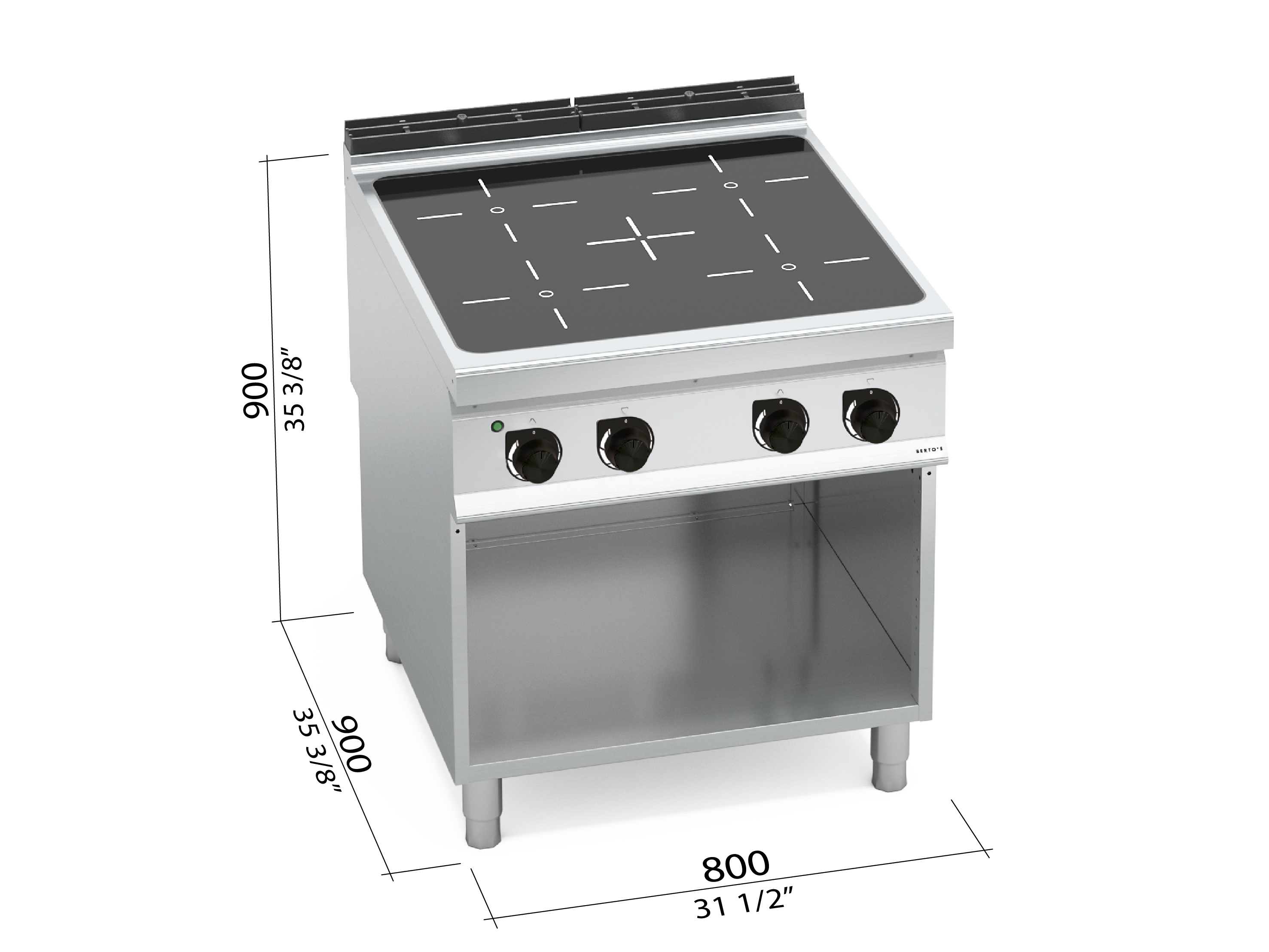

Dimensions

Dimensions
