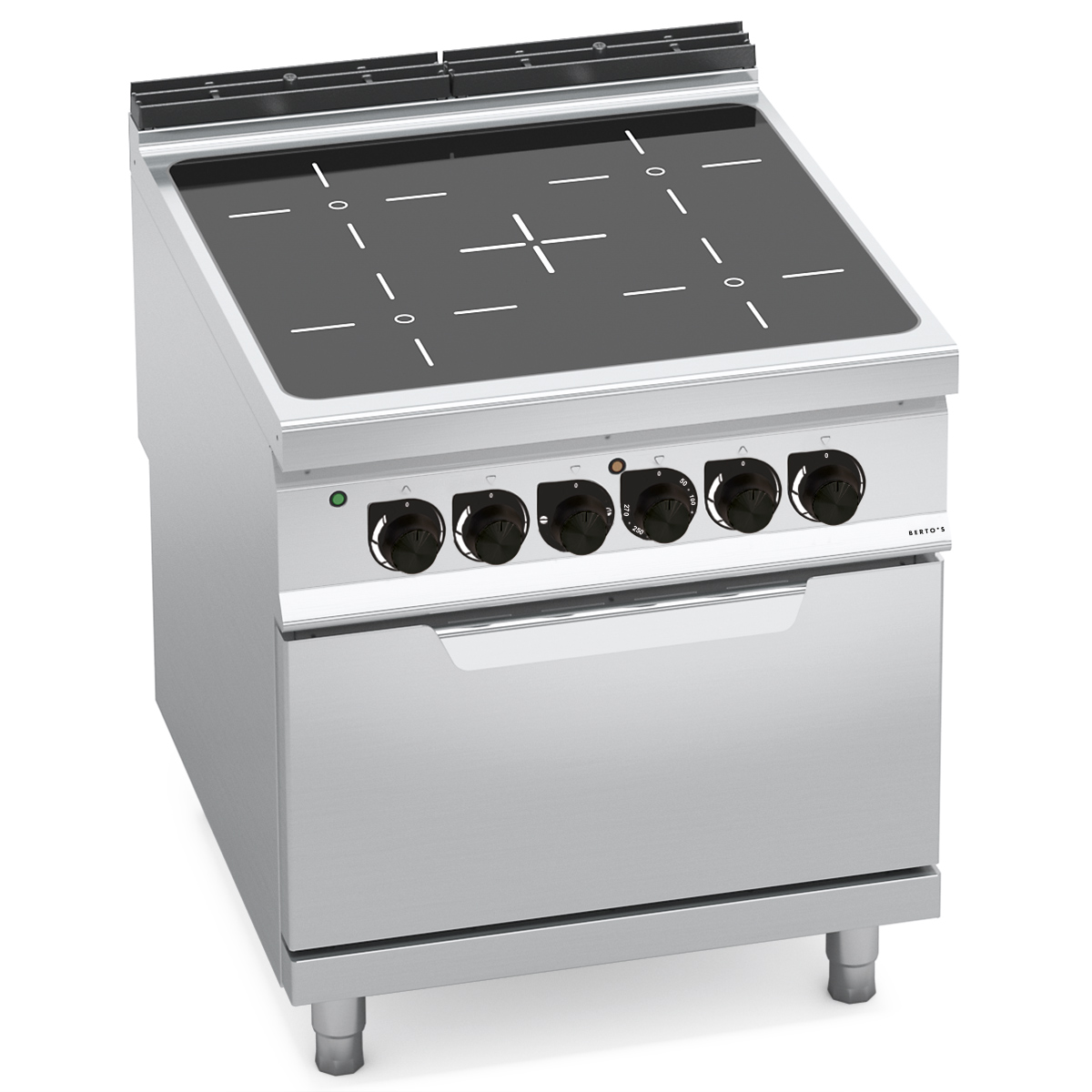

INFRARED AND INDUCTION COOKERS - MAXIMA 900

4-ZONE INFRARED TOP + 2/1 ELECTRIC OVEN

Model E9P4P/VTR+FE
Code 20734600
Worktop and front panels made of AISI 304 stainless steel. Inside made of stainless steel. Pyroceram top with a thickness of 6 mm. Electrical resistances able to reach high temperatures (500 °C) to heat the cooking top with irradiation. Heating circuit in square zones 300 x 300 mm and 4 kW of power. The zones are marked with proper serigraphs that allow the proper positioning of the pans.After switching off each zone, a light signals residual heat up to 60 °C to safe-guard the operator.Electric oven with Incoloy stainless steel resistances with oversize diameter. Grill with salamander function in the upper side and thermostat for the correct regulation of temperature from 50 to 270 °C. Oven chamber from AISI 430 with 4-level supports and internal, pressed and ribbed door from stainless steel. Pilot light and temperature indicator light. High resistance and double-pressed handles from AISI 304 stainless steel of 20/10 thickness.

Technical specifications

Technical specifications

Oven
Oven type E
Oven power in kW 7.5
Details
total electric kW 23.5
Electrical voltage 380-415 V3N

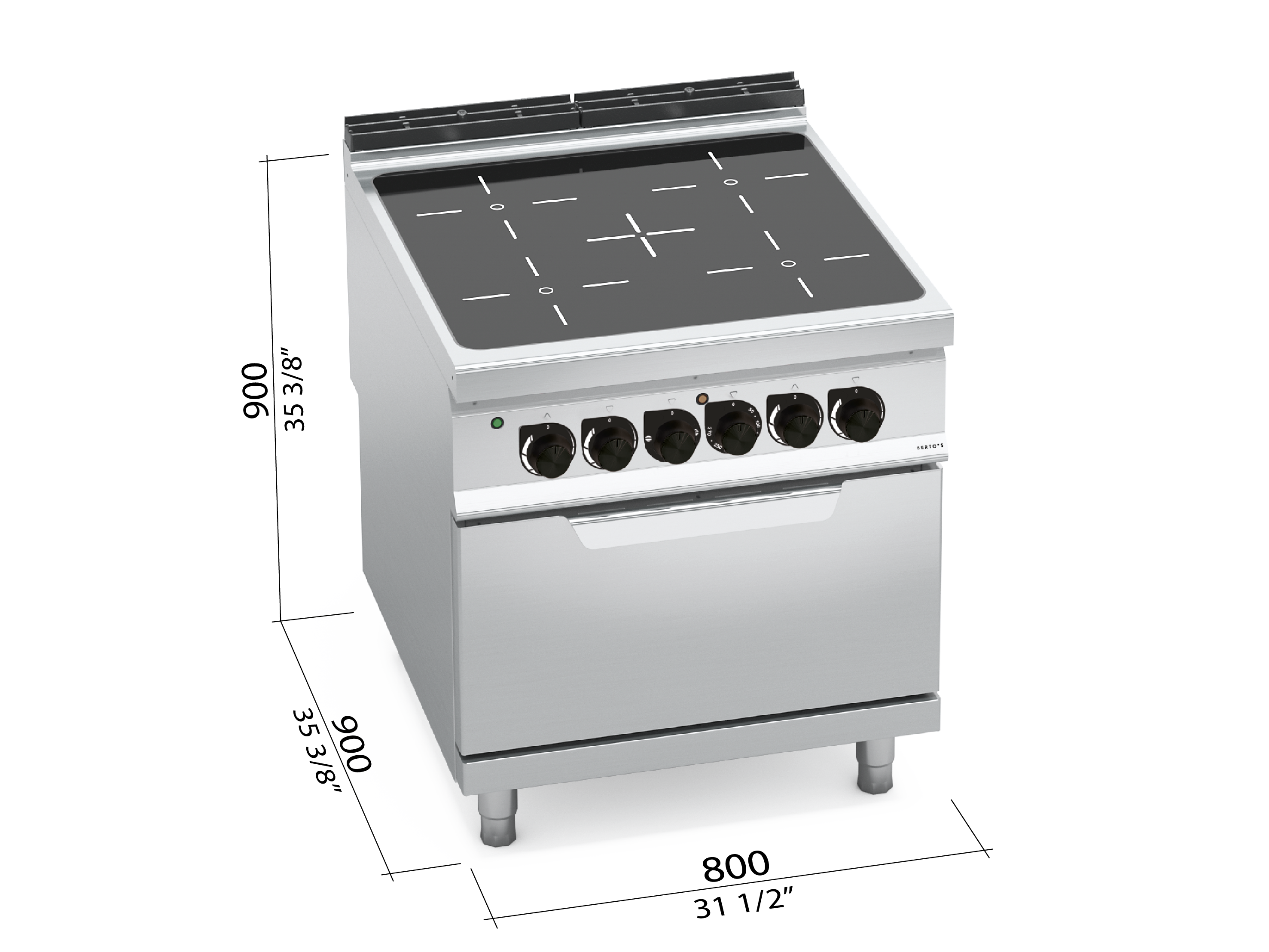

Measurements
Width 800
Depth 900
Height 900
Weight 113
Volume 0.65
Package
Package width 865
Package depth 1070
Package height 1270
Package weight 132
Package volume 1.18

Dimensions

Dimensions
