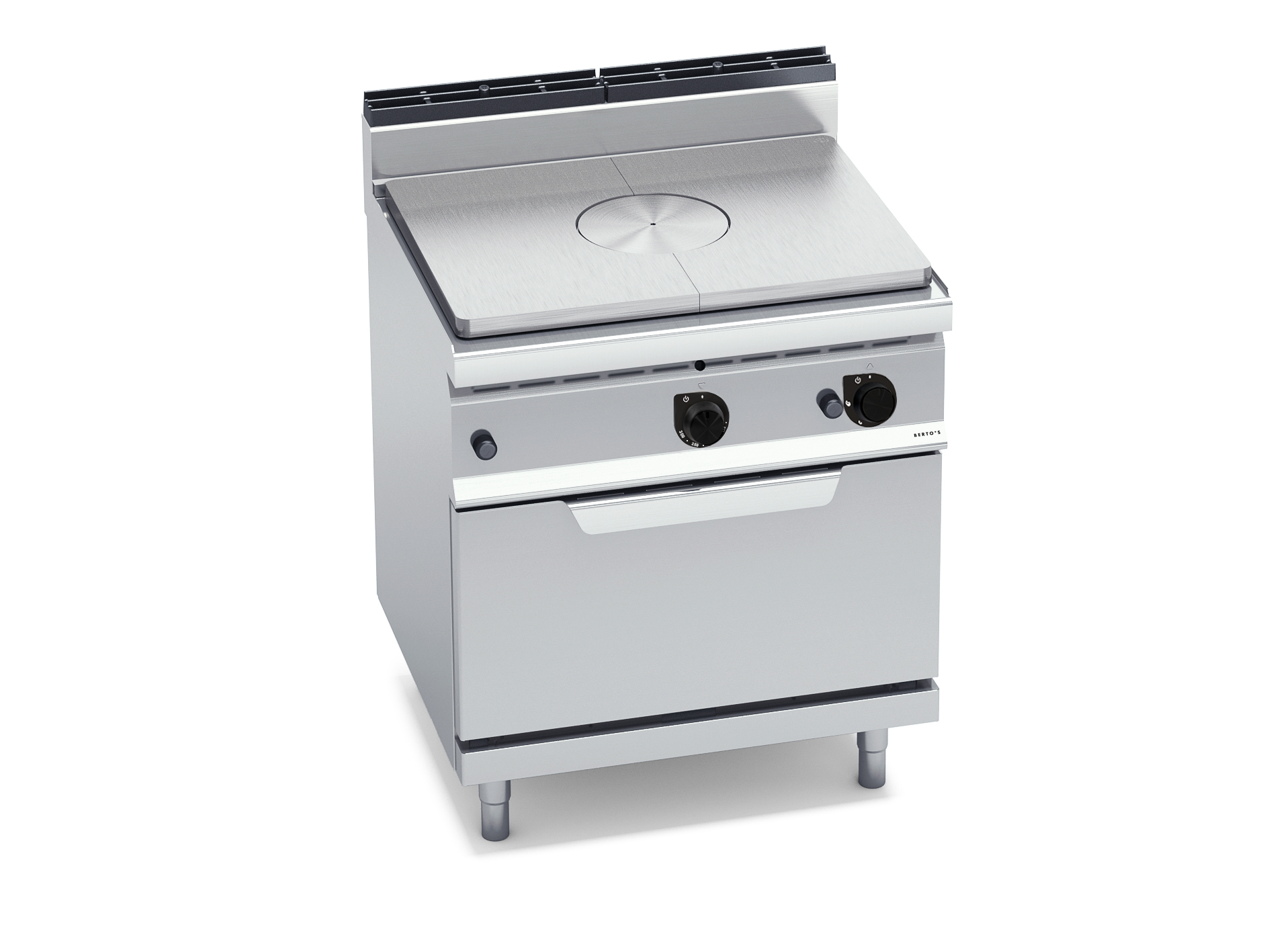

GAS SOLID TOP - MACROS 700

SOLID TOP WITH 2/1 GAS OVEN

Model G7TP+FG
Code 18861000
Worktop and front panels made of AISI 304 stainless steel. Large sized thick cast iron plate with high
resistance and heat distribution in differentiated thermal areas: maximum temperature at the centre,
decreasing towards the edges. 5 kW central burners with optimized combustion activated by a valve tap with thermocouple safety valve and protected pilot flame. Piezoelectric ignition with silicone protection and a combustion chamber coated in vermiculite; a high performance insulation material. Gas static oven equipped with pilot flame made completely of stainless steel with 4 levels for 2/1 GN grids/pans. Oven burner with self-stabilized flame and adjustable thermostat from 160 to 280°. Pressed front door without seal for better insulation and easier cleaning. Pressed door and counter door of AISI 304 STAINLESS STEEL. High resistance door handle made of AISI 304 steel of 20/10 thickness. Adjustable feet. Standard: piezoelectric ignition of the oven. 1 anti-tilting oven grid.

Technical specifications

Technical specifications

Oven
Oven type G
Oven power in kW 7.8
Details
total gas kW 17.8
Measurements
Width 800
Depth 714
Height 900
Weight 129
Volume 0.51
Package
Package width 880
Package depth 790
Package height 1210
Package weight 139
Package volume 0.84

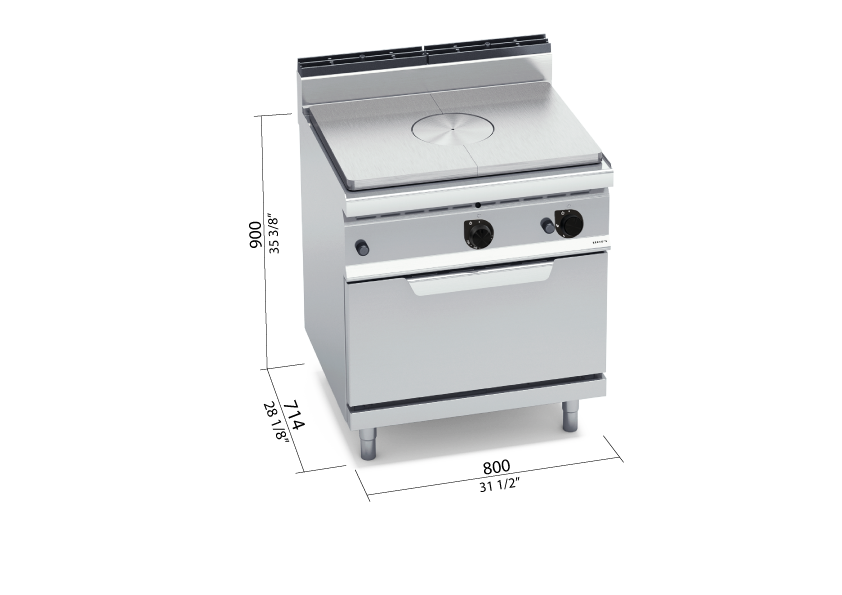

Dimensions

Dimensions
