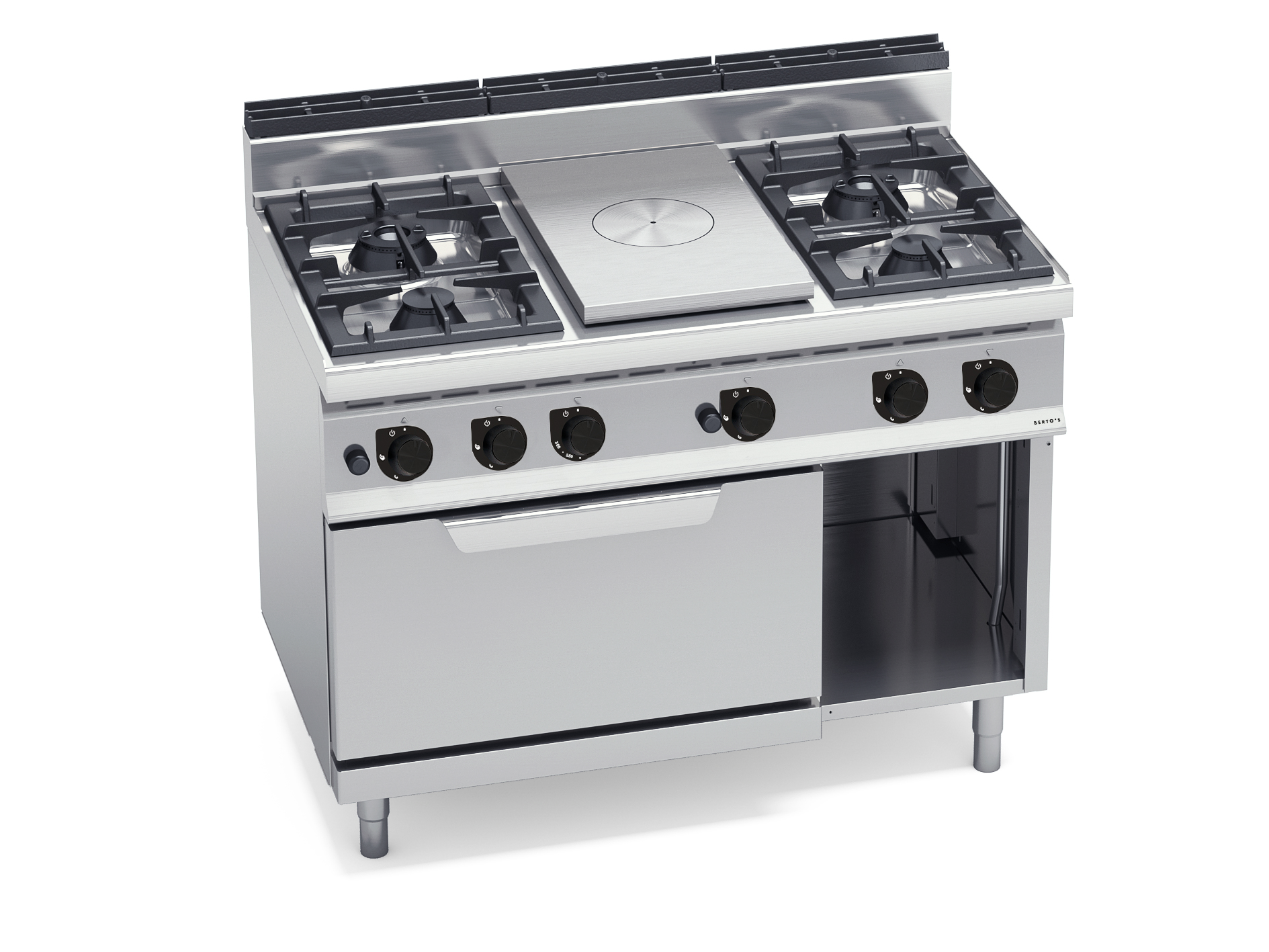

GAS SOLID TOP - MACROS 700

SOLID TOP + 4 OPEN BURNERS WITH 2/1 GAS OVEN

Model G7T4P4F+FG
Code 18876600
Worktop and front panels made of AISI 304 stainless steel. Solid steel gas top of high resistance and heat distribution in differentiated thermal areas: maximum temperature at the centre, decreasing towards the edges. 7 kW central burner with optimized combustion activated by a valve tap with thermocouple safety valve and protected pilot flame. Piezoelectric ignition with silicone protection. Life-guaranteed nickel-plated cast iron high power burners with single or double crown activated by a valve tap with safety thermocouple and pilot light. Cast iron grills. The trays and the burner body are completely removable to enable maintenance and cleaning to be carried out easily and efficiently. Gas static oven equipped with pilot flame made completely of STAINLESS STEEL with 4 levels for 2/1 GN grids/pans. Oven burner with self-stabilized flame and adjustable thermostat from 160° to 280°. Pressed front door without seal for better insulation and easier cleaning. Pressed door and counter door of AISI 304 STAINLESS STEEL. High resistance door handle made of AISI 304 steel of 20/10 thickness. Adjustable feet. Standard: piezoelectric ignition of the oven. 1 anti-tilting oven grid.

Technical specifications

Technical specifications

Oven
Oven type G
Oven power in kW 7.8
Details
total gas kW 35.8
Measurements
Width 1200
Depth 714
Height 900
Weight 146
Volume 0.77
Package
Package width 1290
Package depth 790
Package height 1210
Package weight 161
Package volume 1.23

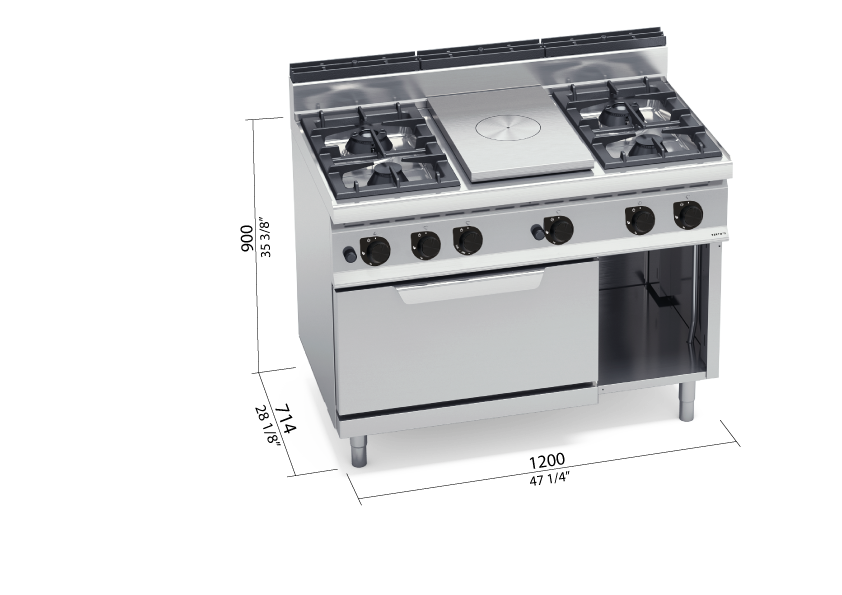

Dimensions

Dimensions
