6 BURNER GAS COOKER ON LARGE GAS OVEN
Download the image
GAS COOKERS - MAXIMA 900

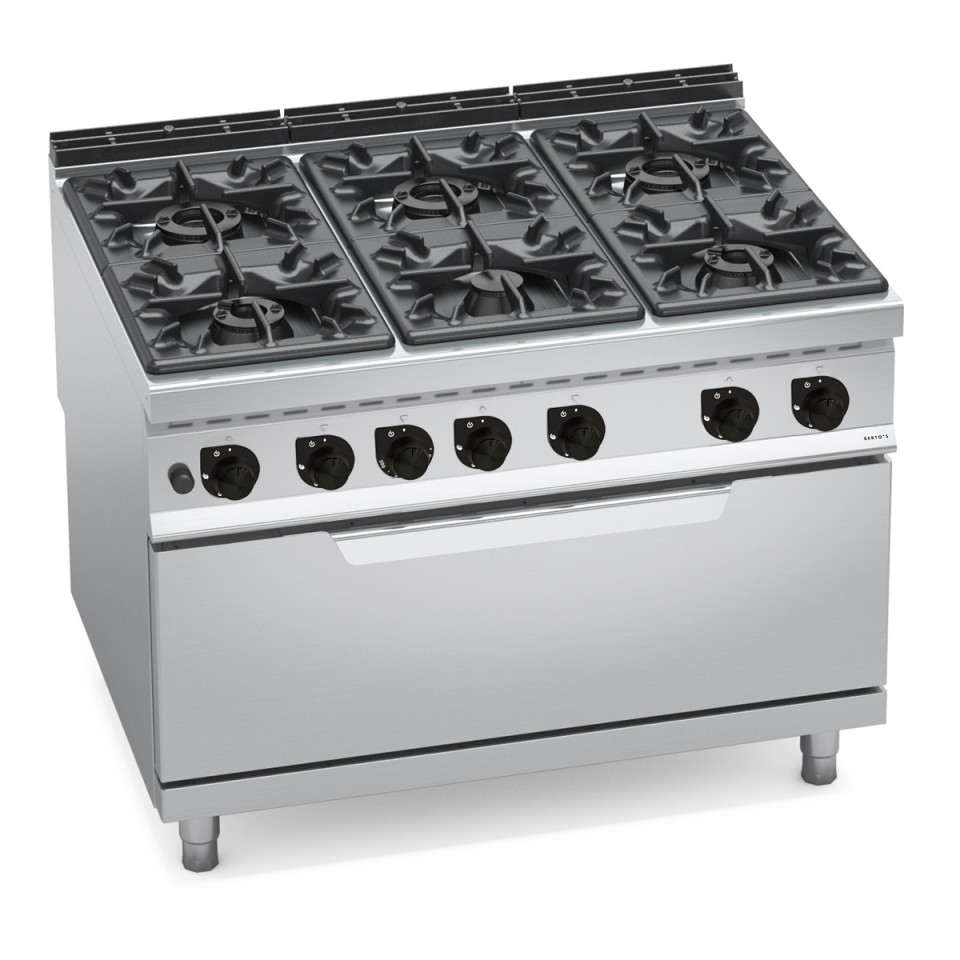

6 BURNER GAS COOKER ON LARGE GAS OVEN

Model G9F6+T
Code 20706200
Worktop and front panels made of AISI 304 stainless steel. Inside AISI 430. Cast iron burners with thermocouple safety valve and protected pilot flame with regulation up to 3,5 kW on the 80 mm version, regulation up to 7 kW on the 108 mm version and regulation up to 12 kW on the 130 mm version.
Gas oven with flame burner positioned under the enamelled steel base and adjustable thermostat from 160 to 280 °C. Oven chamber from AISI 430 with 4-level supports and internal, pressed and ribbed door from stainless steel. Internal chimney from stainless steel and burners support from AISI 430 stainless steel. High resistance handle from AISI 304 stainless steel of 20/10 thickness. Pressed trays from AISI 304 stainless steel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Oven
Oven type G
Oven power in kW 12
Details
total gas kW 65.5

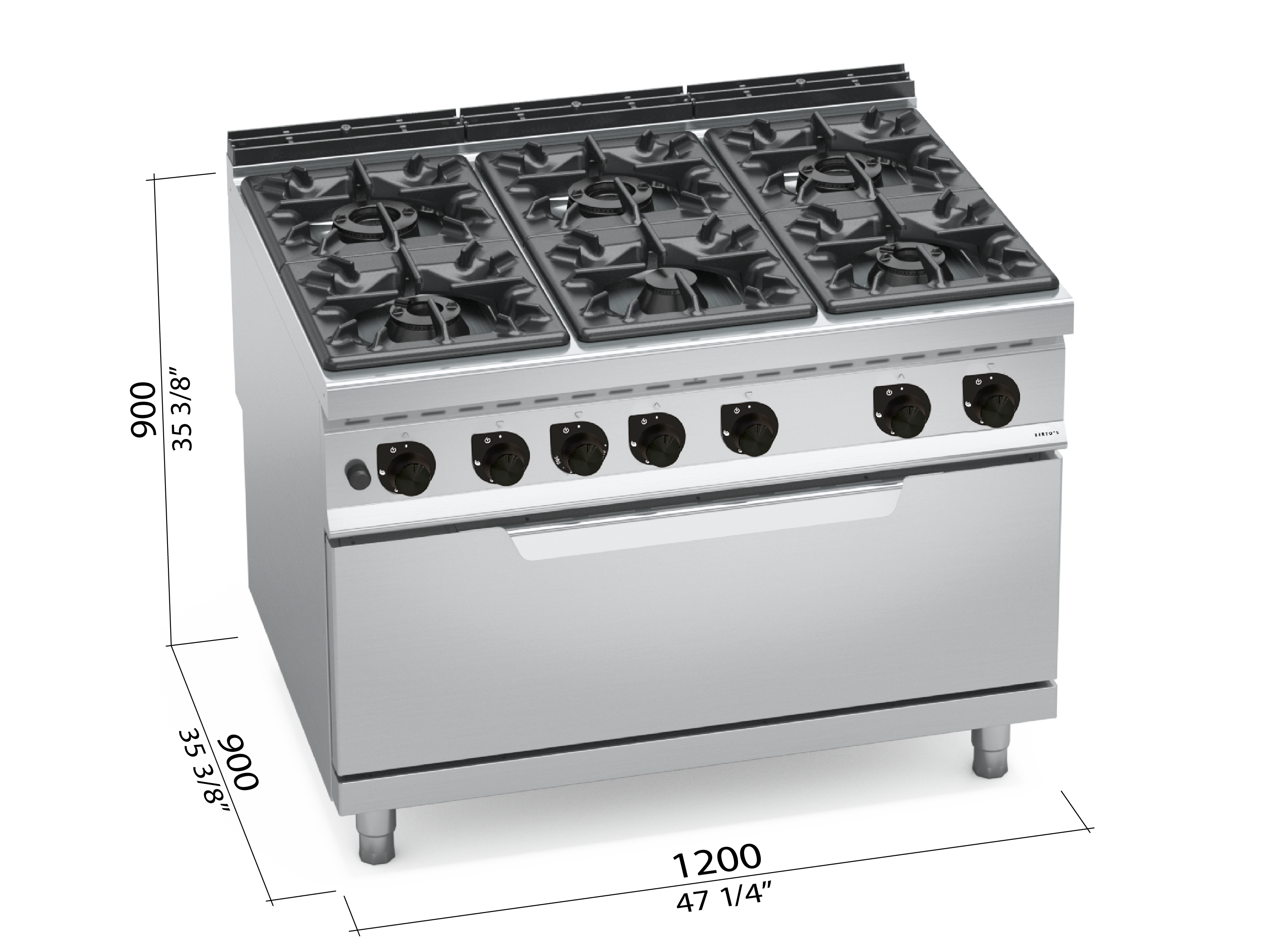

Measurements
Width 1200
Depth 900
Height 900
Weight 209
Volume 0.97
Package
Package width 1280
Package depth 1080
Package height 1160
Package weight 234
Package volume 1.6

Dimensions

Dimensions
