4 BURNER GAS COOKER ON 2/1 ELEC. OVEN
Download the image
GAS COOKERS - MAXIMA 900

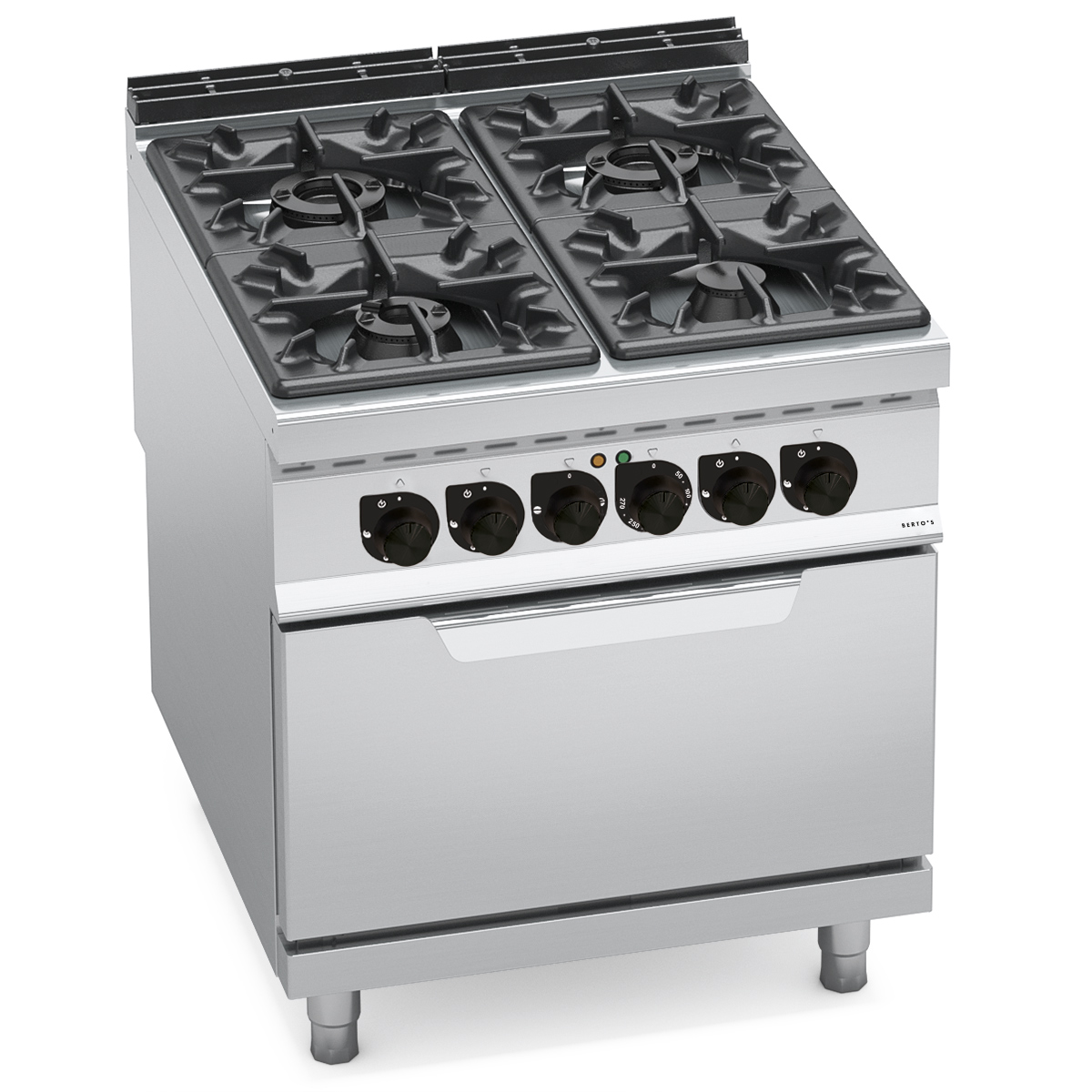

4 BURNER GAS COOKER ON 2/1 ELEC. OVEN

Model G9F4+FE
Code 20705000
Worktop and front panels made of AISI 304 stainless steel. Inside AISI 430. Cast iron burners with thermocouple safety valve and protected pilot flame with regulation up to 3,5 kW on the 80 mm version, regulation up to 7 kW on the 108 mm version and regulation up to 12 kW on the 130 mm version.
Electric oven with Incoloy stainless steel resistances with oversize diameter. Grill with salamander function in the upper side and thermostat for the correct regulation of temperature from 50 to 270 °C. Oven chamber from AISI 430 with 4-level supports and internal, pressed and ribbed door from stainless steel. Power indicator and temperature light. High resistance handle from AISI 304 stainless steel of 20/10 thickness. Pressed trays from AISI 304 stainless steel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Oven
Oven type E
Oven power in kW 7.5
Details
total gas kW 34.5
total electric kW 7.5
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 900
Height 900
Weight 140
Volume 0.65
Package
Package width 865
Package depth 1080
Package height 1180
Package weight 159
Package volume 1.1

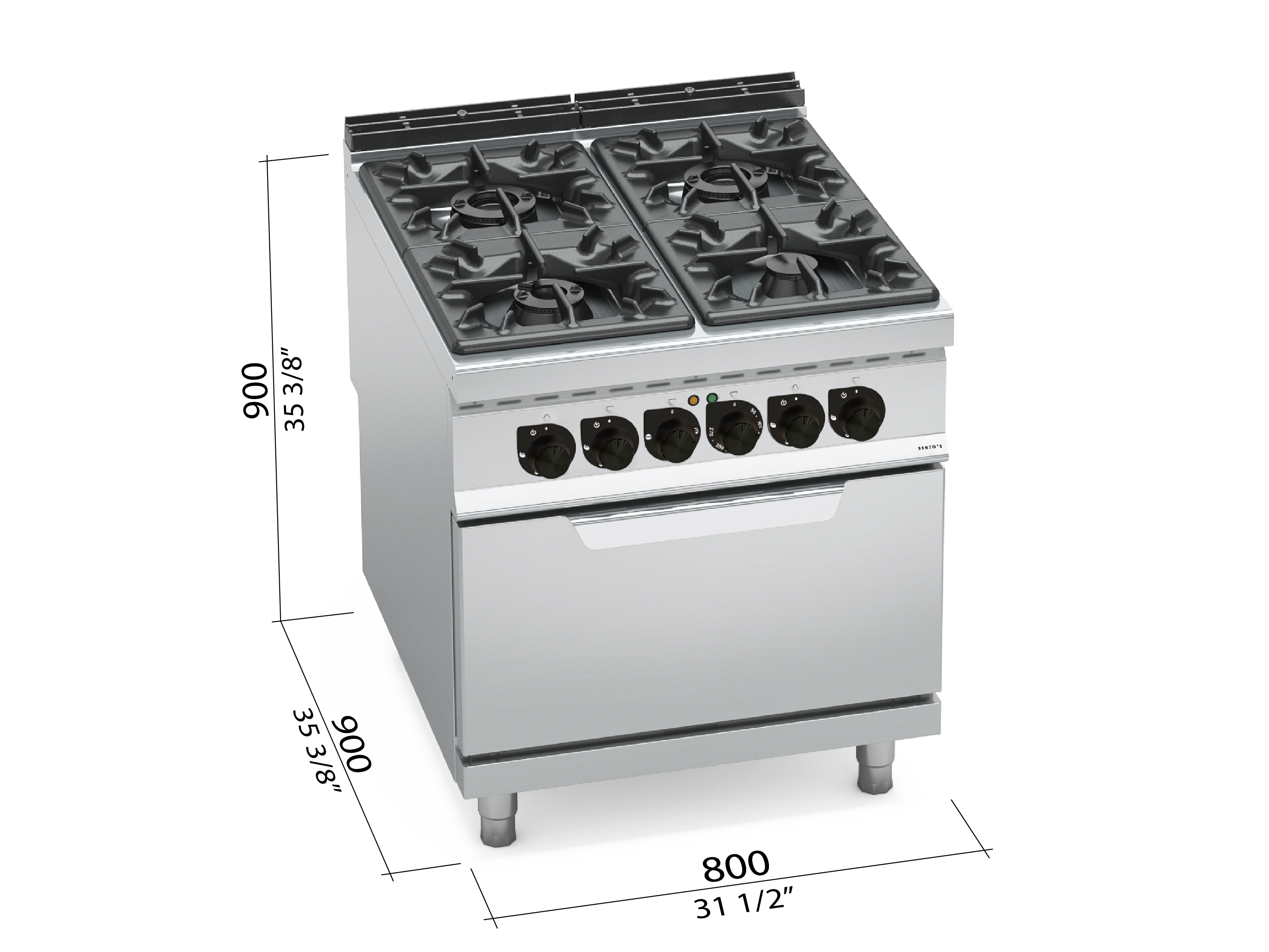

Dimensions

Dimensions
