ELECTRIC FRYERS - MAXIMA 900

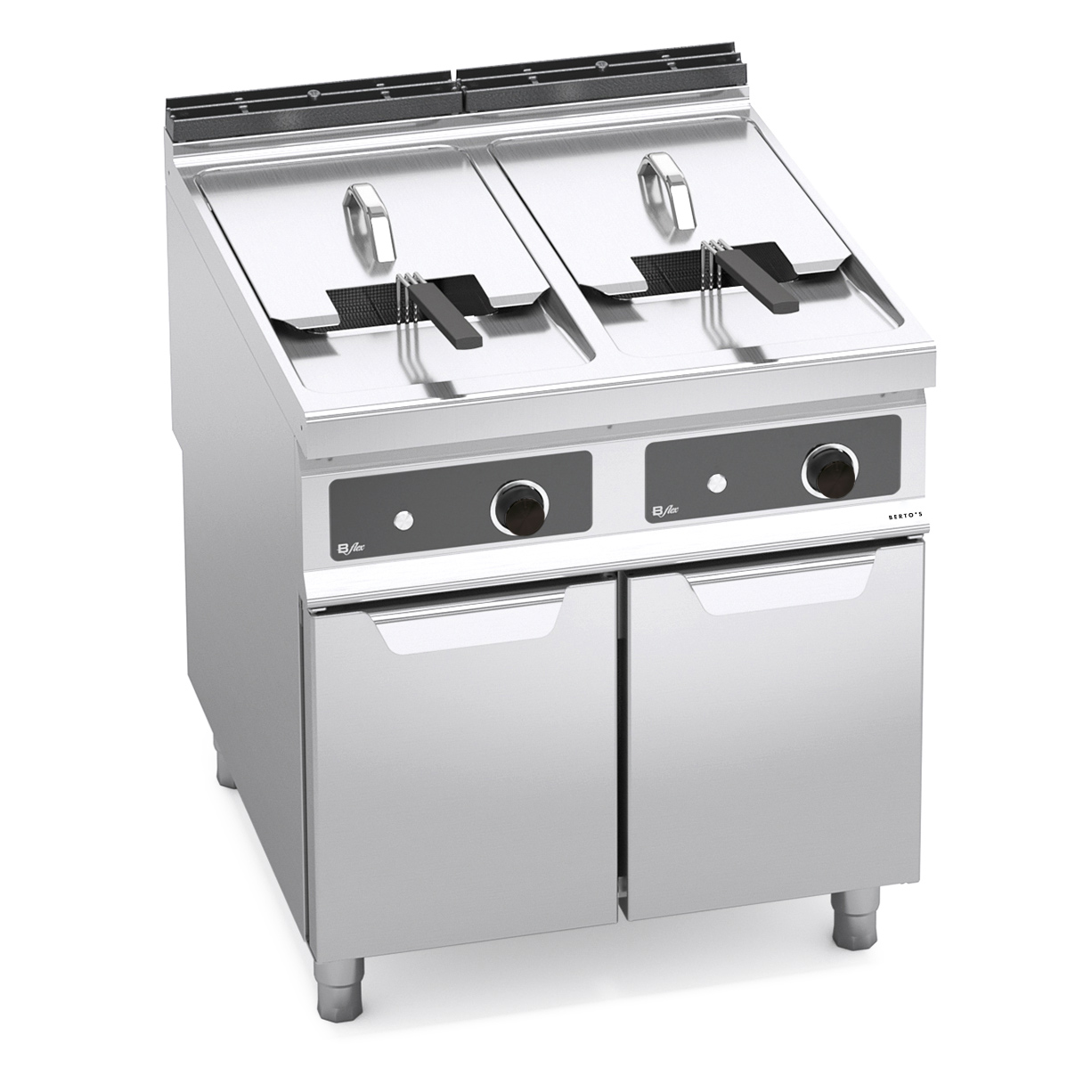

ELECTRIC FRYER - SINGLE TANK OF 22+22 LITERS (POWERED VERSION - BFLEX CONTROLS)

Model E9F22-8MS-BF
Code 20516620
Worktop and front panels made of AISI 304 stainless steel. Incoloy stainless steel resistances positioned directly in the tank that can be tilted vertically to make cleaning operations easier. Safety device to cut power supply with resistances in vertical position. Temperature control through an electronic gearcase with the following functions: temperature control from 100 to 190 °C, display of the set temperature, program of “melting” and maintaining the temperature at 100 °C for the use of solid fat for frying, self-diagnostic for possible failures. Safety thermostat with manual restart. AISI 304 stainless steel tank with large rounded edges and wide cold zone below the resistances to decant the residual. The top with rounded edges integrates a board to rest baskets; it is slightly inclined to favor oil draining. Spherical draining tap positioned in the compartment controlled by an athermic handle and with steel collection tray.

Technical specifications

Technical specifications

Tank
L of capacity 22+22
Details
total electric kW 44
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 900
Height 900
Weight 101
Volume 0.65
Package
Package width 865
Package depth 1080
Package height 1180
Package weight 120
Package volume 1.1

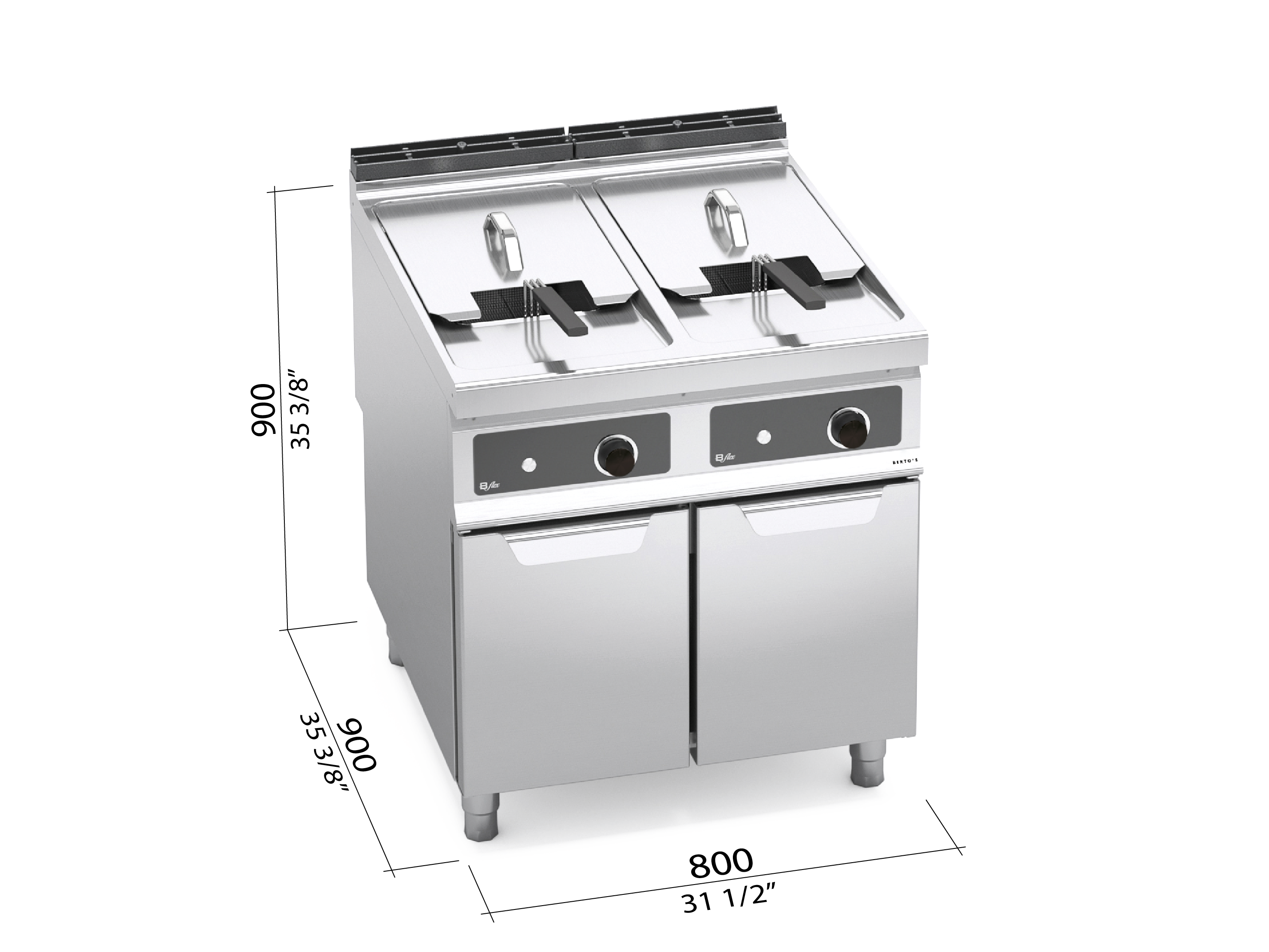

Dimensions

Dimensions
