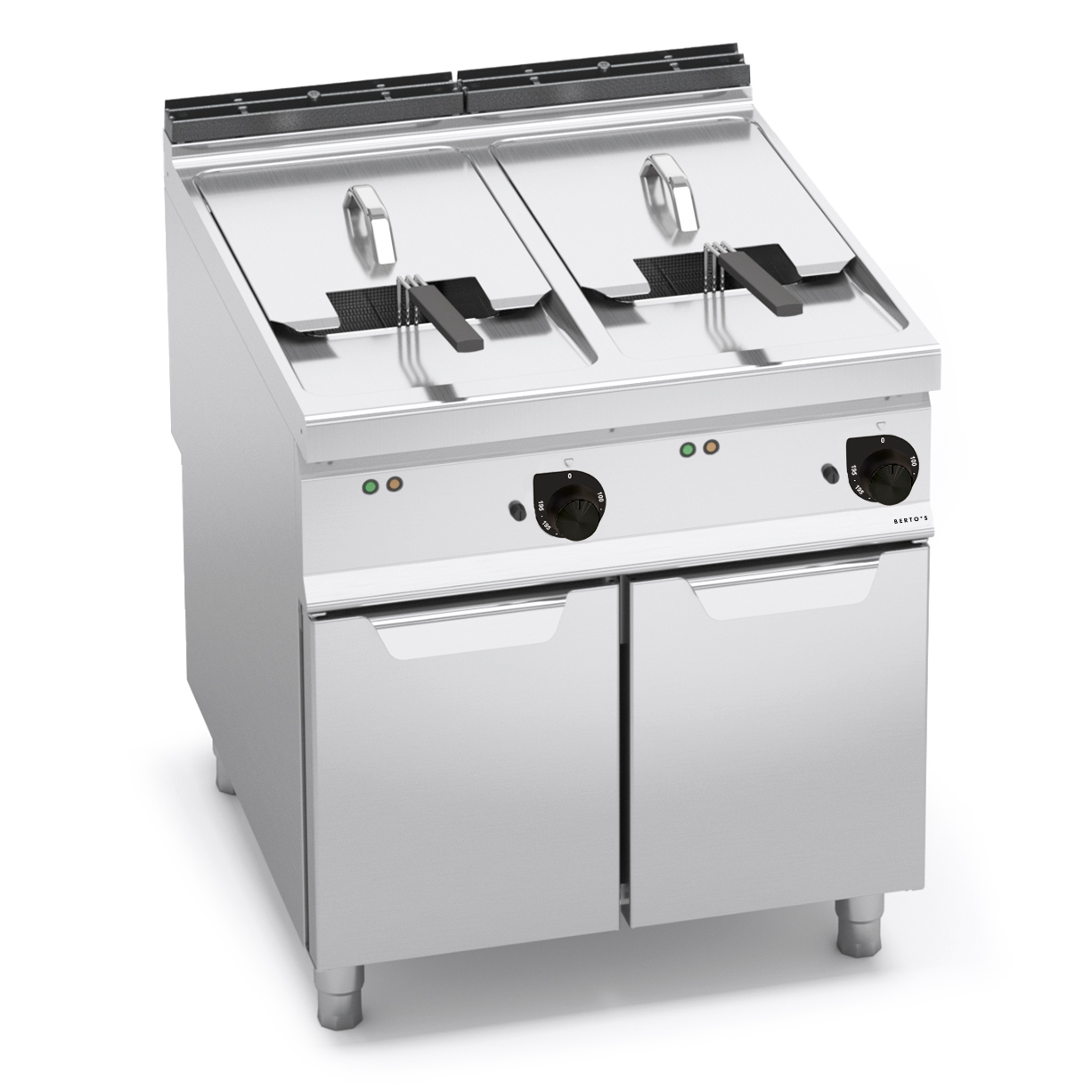

22+22 L ELECTRIC FRYER ON CABINET
Download the image
ELECTRIC FRYERS - MAXIMA 900

22+22 L ELECTRIC FRYER ON CABINET

Model E9F22-8M
Code 20516500
Worktop and front panels made of AISI 304 stainless steel. Incoloy stainless steel resistances positioned directly in the tank that can be tilted vertically to make cleaning operations easier. Safety device to cut power supply with resistances in vertical position. Temperature control through a thermostat from 80 to 190 °C with a more precise temperature detection, thanks to the sensors positioned in the tank. Power indicator and temperature light. AISI 304 stainless steel tanks with large rounded edges and wide cold zone below the resistances to decant the residual. The top with rounded edges integrates a board to rest baskets; it is slightly inclined to favor oil draining. Spherical draining tap positioned in the compartment controlled by an athermic handle and with steel collection tray.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 22+22
Details
total electric kW 36
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 900
Height 900
Weight 103
Volume 0.65
Package
Package width 865
Package depth 1080
Package height 1180
Package weight 122
Package volume 1.1

Dimensions

Dimensions
