6 ROUND PLATE ELECTRIC STOVE WITH 2/1 ELECTRIC OVEN
Download the image
ELECTRIC COOKERS - MACROS 700

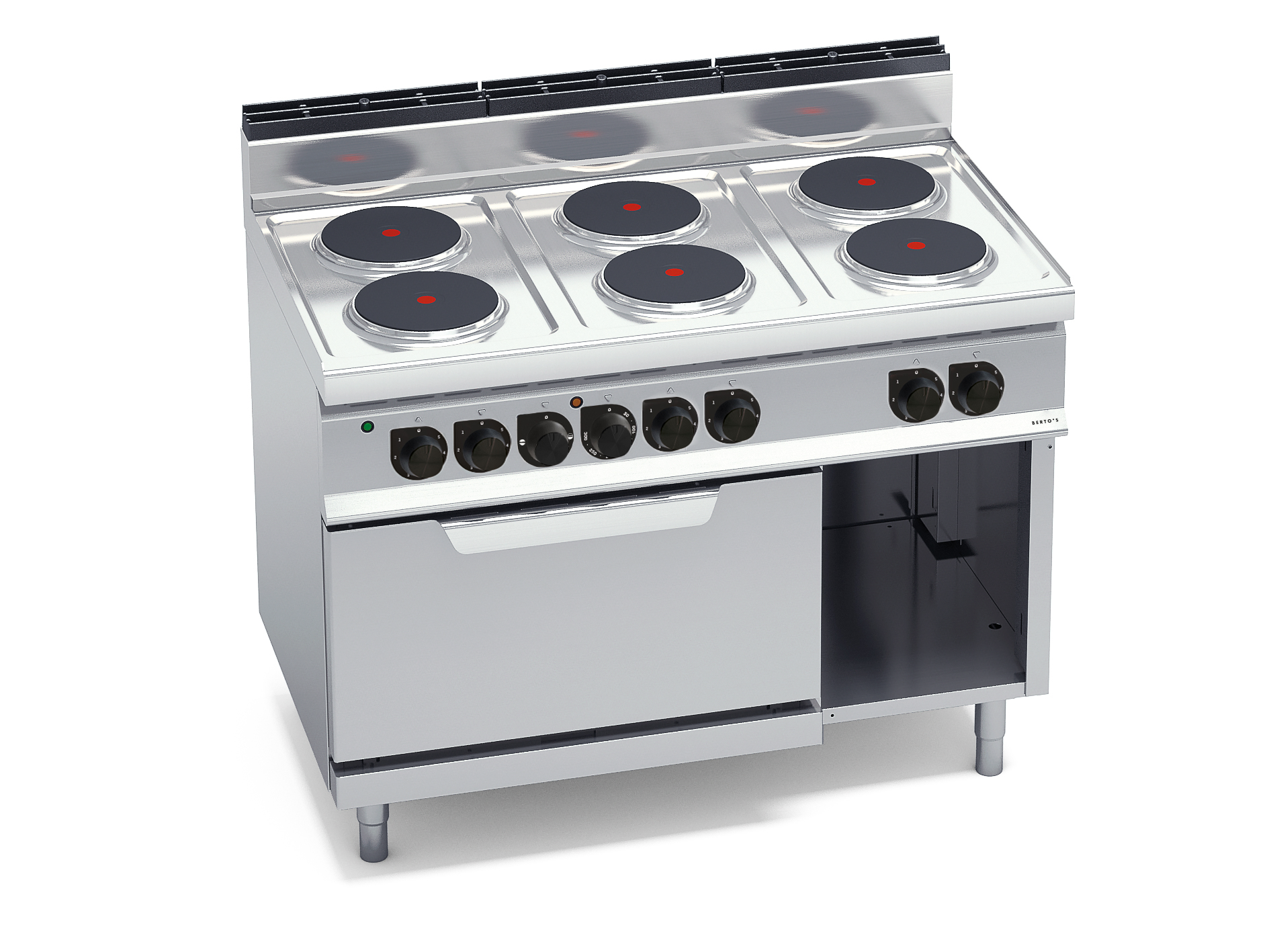

6 ROUND PLATE ELECTRIC STOVE WITH 2/1 ELECTRIC OVEN

Model E7P6+FE
Code 18725000
Worktop and front panels of AISI 304 stainless steel. Pressed top in a unique watertight piece. Cast iron plates with safety thermostat and 6-position selector that activates 6 different concentric power zones. Voltage light and power light. Electric static oven completely made of STAINLESS STEEL with 4 levels for 2/1 GN grids/pans. Grill with salamander function on the upper side and a thermostat for the correct regulation of temperature from 50° a 270° C. Pilot light and temperature indicator light. Pressed door and counter door made of AISI 304. High resistance door handle of AISI 304 steel of 20/10 thickness. Adjustable feet. Standard: no. 1 anti-tilting oven grid.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Oven
Oven type E
Oven power in kW 7.5
Details
total electric kW 23.1
Electrical voltage 380-415 V3N
Measurements
Width 1200
Depth 714
Height 900
Weight 129
Volume 0.77
Package
Package width 1290
Package depth 790
Package height 1210
Package weight 130
Package volume 1.23

Dimensions

Dimensions
