4 SQUARE PLATE ELECTRIC STOVE
Download the image
ELECTRIC COOKERS - MACROS 700

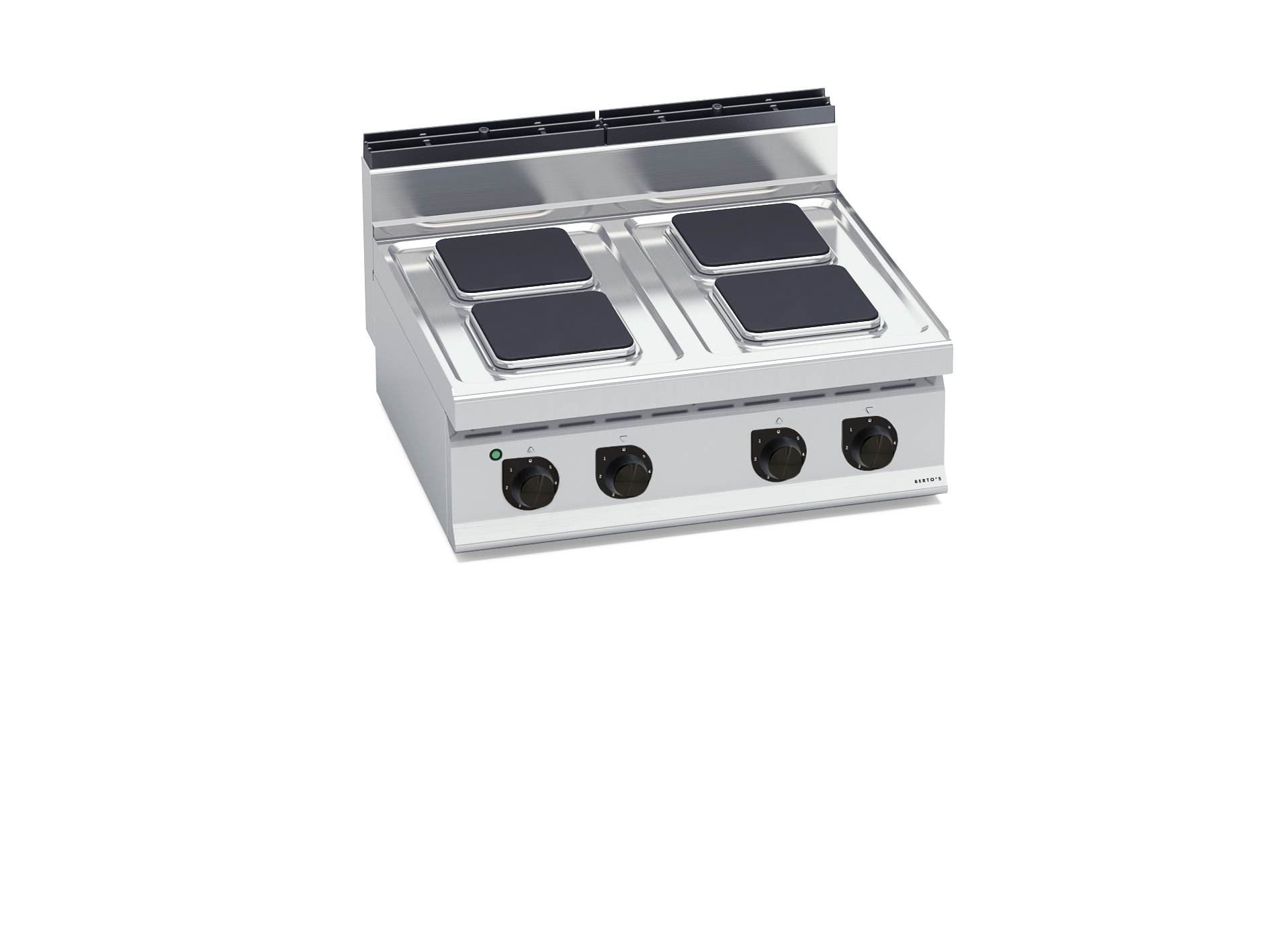

4 SQUARE PLATE ELECTRIC STOVE

Model E7PQ4B
Code 18722100
Worktop and front panels of AISI 304 stainless steel. Pressed top in a unique watertight piece. Cast iron
plates with safety thermostat and 6-position selector that activates 6 different concentric power zones.
Voltage light and power light. Adjustable feet (cabinet version).
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 10.4
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 714
Height 290
Weight 49
Volume 0.17
Package
Package width 880
Package depth 790
Package height 620
Package weight 55
Package volume 0.43
