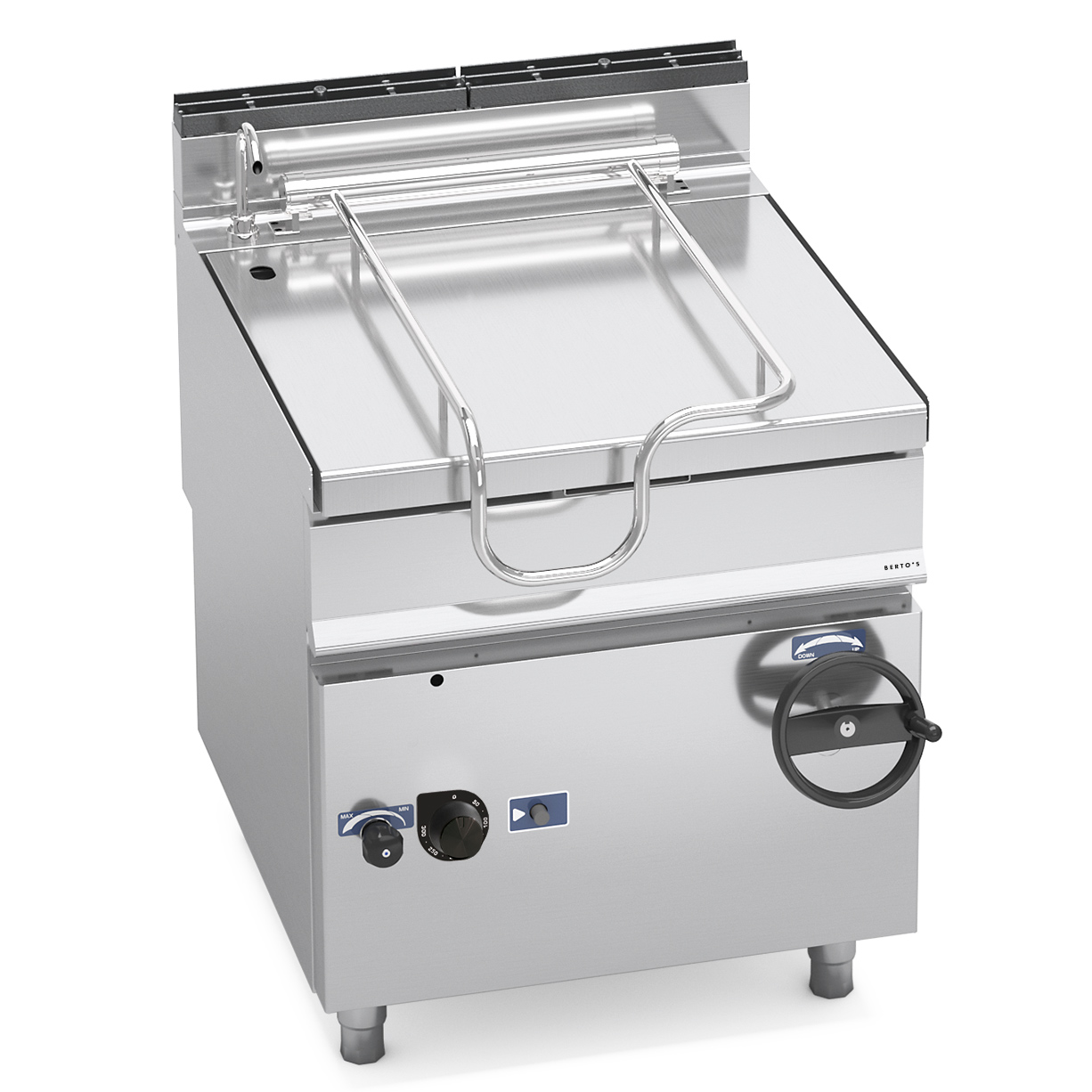

BRATT PANS - MAXIMA 900

80 L GAS TILTING BRATT PANS

Model G9BR8/I
Code 20821500
Internal and external frame completely made of stainless steel, external sides with Scotch Brite finishing.Cover fixed on a self-balanced hinge from AISI 304 stainless steel with a very thick handle from AISI 304 stainless steel. Cooking tank with AISI 304 stainless steel walls with 20/10 thickness, non-stick ceramic micro-sphere finishing and completely rounded angles. Radiating steel tank bottom with 10 mm thickness; externally welded. Distributing tap with large capacity neck placed on the top. Handwheel to lift the tank with a folding handle. Even heating at the bottom with stainless steel multi-flame burners, with thermocouple safety valve and protected pilot flame. Piezoelectric ignition with rubber protection. Control with a large precision thermostatic valve with temperature regulation from 100°C to 300°C.
(Model with motorized tilting: G9BR8/I+RM - Cod.20821700)

Technical specifications

Technical specifications

Tank
L of capacity 80
Details
total gas kW 20
total electric kW 0.0006
Electrical voltage 220-240 V
Measurements
Width 800
Depth 900
Height 900
Weight 163
Volume 0.65
Package
Package width 865
Package depth 1080
Package height 1180
Package weight 182
Package volume 1.1

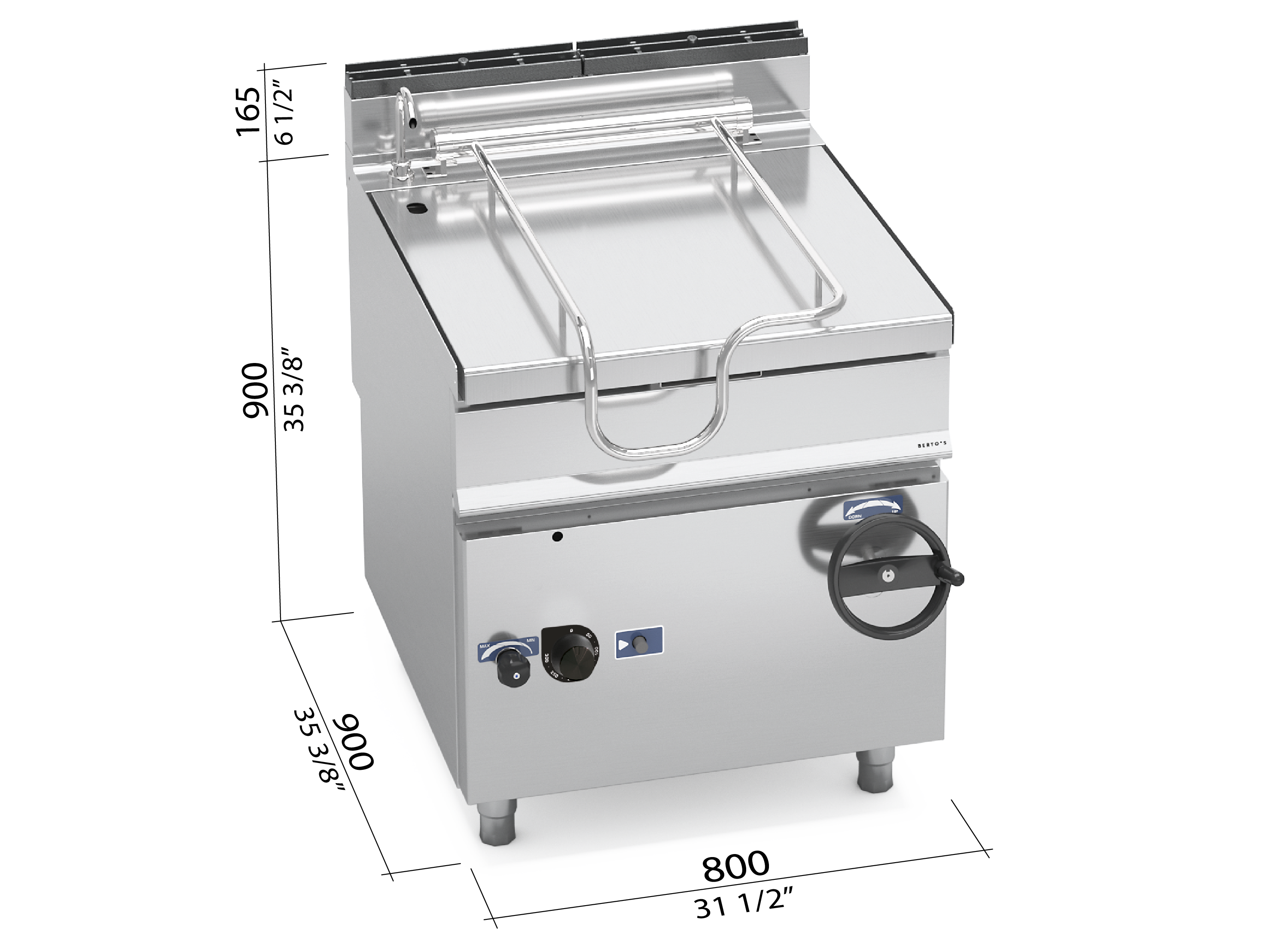

Dimensions

Dimensions
