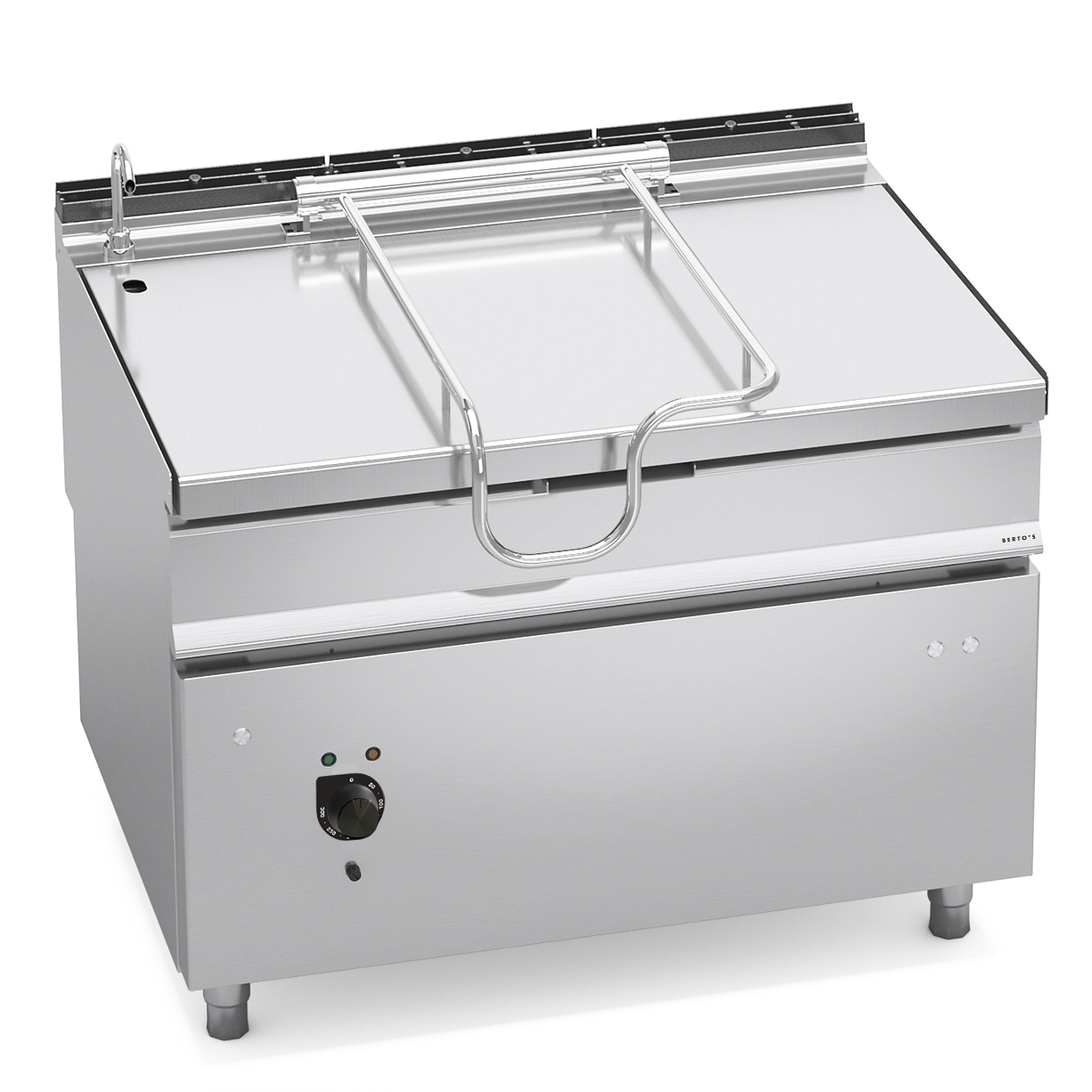

120 L ELECTRIC TILTING BRATT PANS MOTORIZED TILTING
Download the image
BRATT PANS - MAXIMA 900

120 L ELECTRIC TILTING BRATT PANS MOTORIZED TILTING

Model E9BR12/I+RM
Code 20823700
Internal and external frame completely made of stainless steel, external sides with Scotch Brite finishing.Cover fixed on a self-balanced hinge from AISI 304 stainless steel with a very thick handle from AISI 304 stainless steel. Cooking tank with AISI 304 stainless steel walls with 20/10 thickness, non-stick ceramic micro-sphere finishing and completely rounded angles. Radiating steel tank bottom with 10 mm thickness; externally welded. Distributing tap with large capacity neck placed on the top. Safety micro-switch to stop the operation when the tank is lifted. Safety thermostat with manual restart. Even heating at the bottom, thanks to electrical armored resistances of AISI 304 stainless steel on the lower side of the tank bottom and with a coating of insulating material.Power supply controlled by switch and thermostat (100° C - 300° C).
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 120
Details
total electric kW 14.4
Electrical voltage 380-415 V3N
Measurements
Width 1200
Depth 900
Height 900
Weight 229
Volume 0.97
Package
Package width 1280
Package depth 1080
Package height 1160
Package weight 256
Package volume 1.6

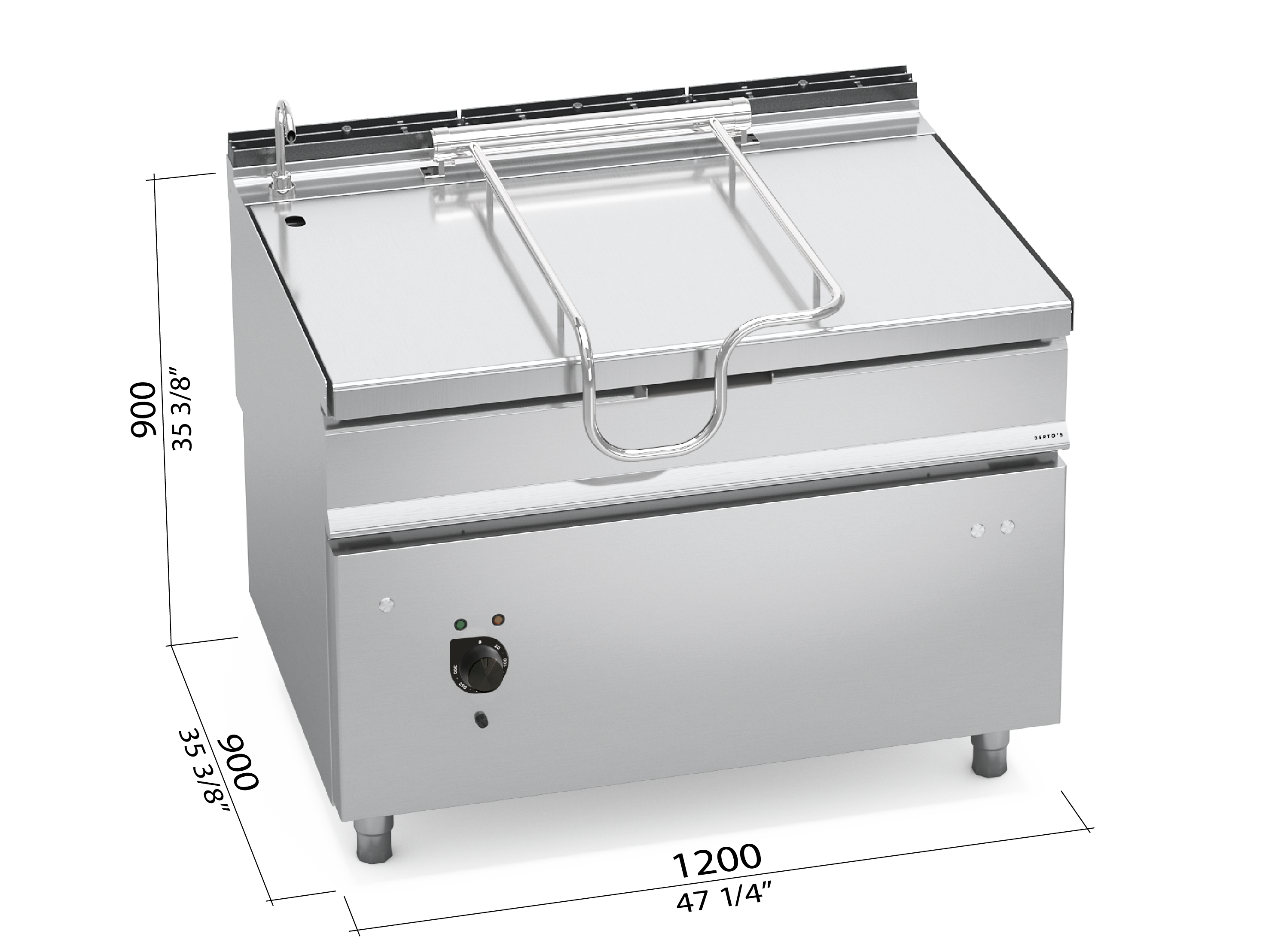

Dimensions

Dimensions
