GAS TILTING BRATT PAN
Download the image
BRATT PANS - MACROS 700

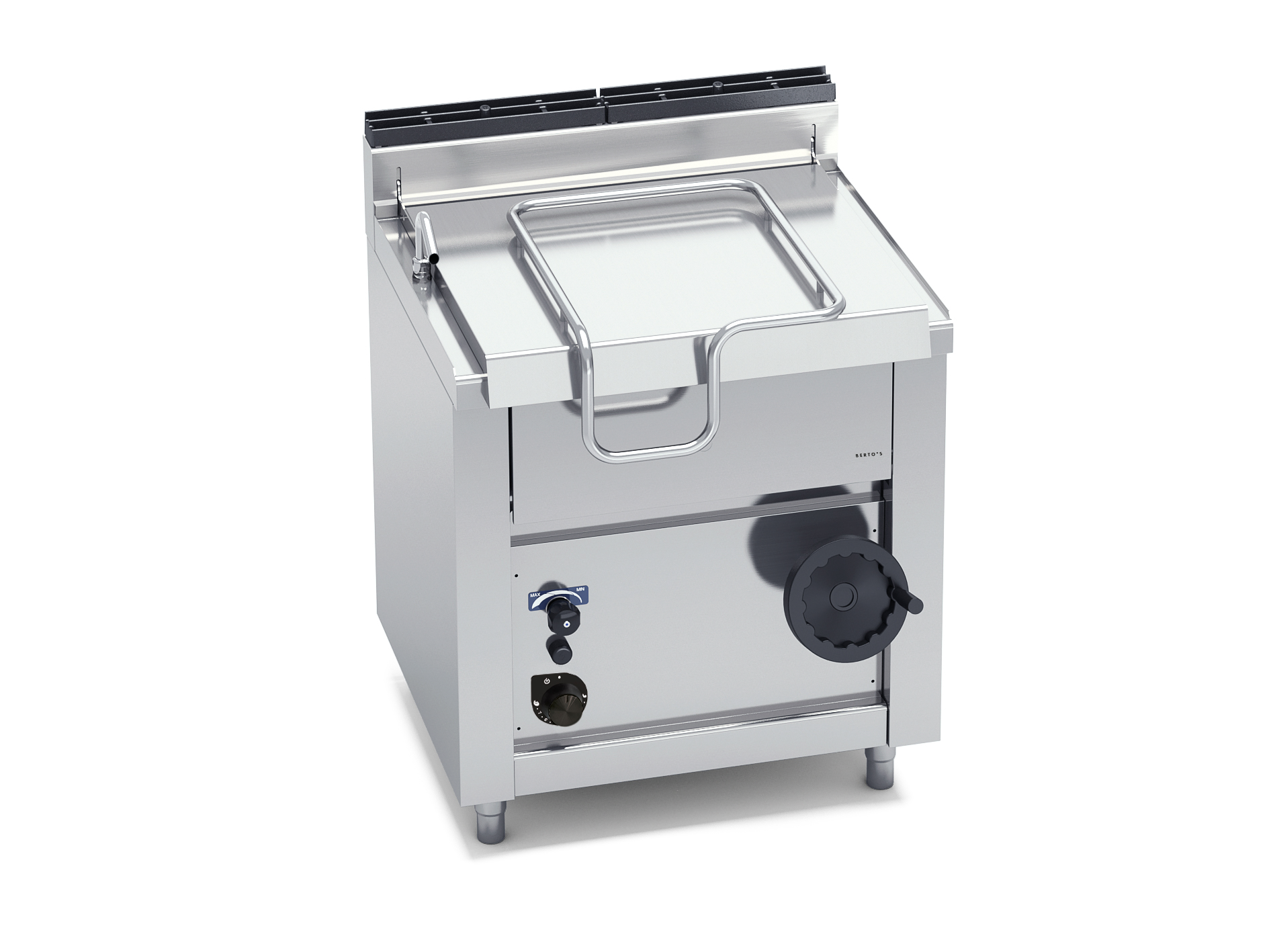

GAS TILTING BRATT PAN

Model G7BR8/I
Code 18821800
Cover fixed on a self-balanced hinge. Cooking tank with bottom and walls from AISI 304 stainless steel, manual tilt to 80°, with non-stick ceramic micro-sphere finishing and rounded edges. Steel tank bottom of 10 mm thickness, externally welded to provide better thermal conductivity. Uniform heat as a result of the heating elements being in direct contact with the base. Piezoelectric ignition with silicone protection and pilot burner. Particularly suitable for wet cooking methods. Thermostatic valve for regulation of temperature from 100 ° C to about 300° C through a 7-position handle. Thermoelectric safety device. Adjustable feet.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 60
Details
total gas kW 14.5
Measurements
Width 800
Depth 714
Height 900
Weight 99
Volume 0.51
Package
Package width 880
Package depth 790
Package height 1210
Package weight 109
Package volume 0.84

Dimensions

Dimensions
