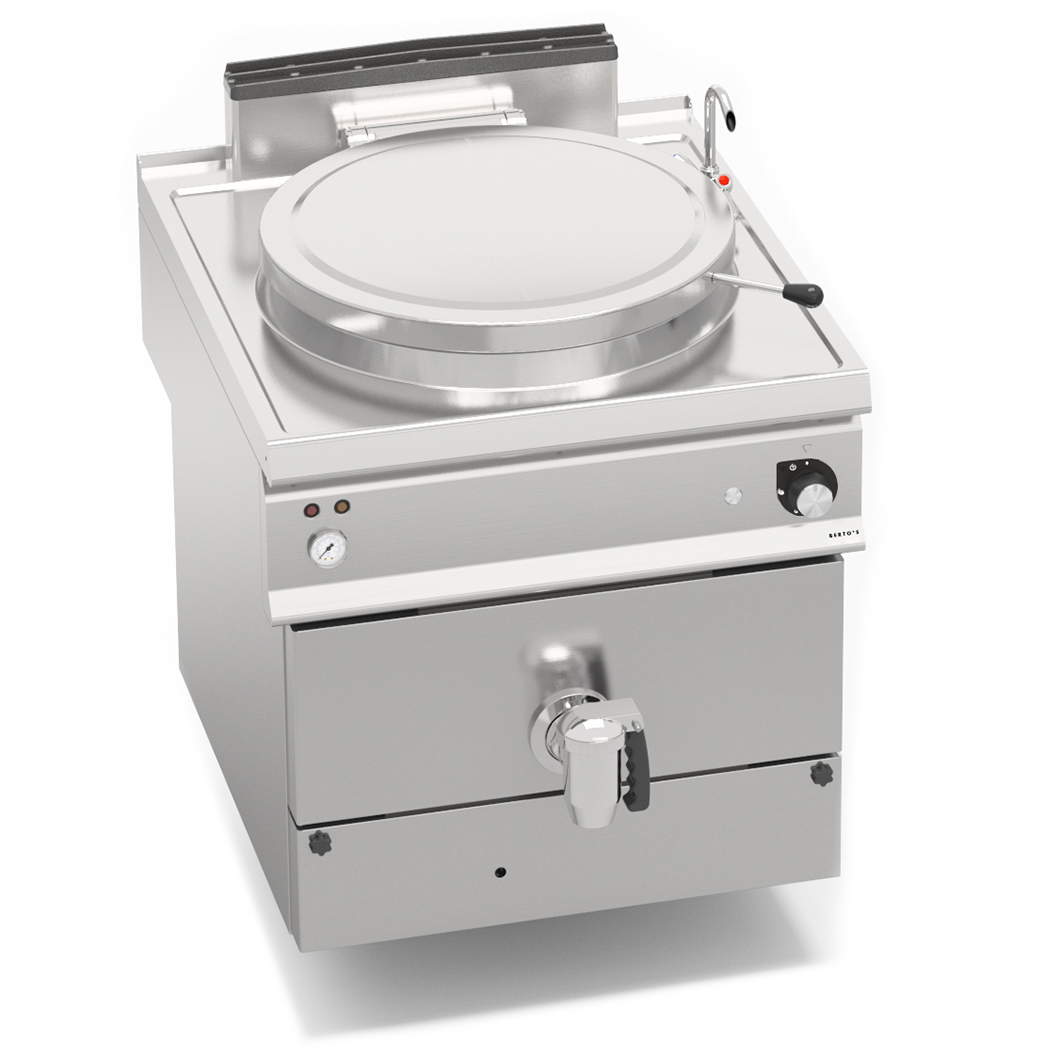

150 LITERS GAS BOILING PAN - INDIRECT HEATING
Download the image
BOILING PANS - S900

150 LITERS GAS BOILING PAN - INDIRECT HEATING

Model LXG9P15I
Code 13841103
Worktop from AISI 304 stainless steel of 20/10 thickness, front and side panels from AISI 304 stainless steel and Scotch Brite finishing. AISI 304 stainless steel cooking container with 15/10 thickness, AISI 316 stainless steel bottom with 20/10 thickness. Jacket with bottom and walls of AISI 304 stainless steel, bottom with 20/10 thickness, walls with 15/10 thickness. Indirect type heating with low pressure steam (0.5 bar) generated inside the jacket through tubular stainless steel burners with optimized combustion, with thermocouple safety valve and protected pilot flame. Electric ignition. Hot and cold water taps on the worktop with an articulated spout for filling and washing the container and the jacket. 2” draining tap of chromed brass with athermic handle. Temperature regulation by means of a handle tap to adjust the water level. Double-walled lid.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 150
Details
total gas kW 20.9
total electric kW 0.03
Electrical voltage 220-240 V
Measurements
Width 800
Depth 900
Height 760
Weight 147
Volume 0.55
Package
Package width 870
Package depth 1070
Package height 1270
Package weight 167
Package volume 1.18

Dimensions

Dimensions
