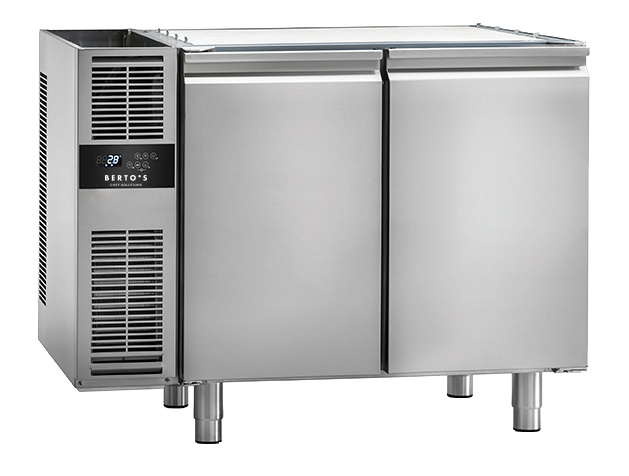

REFRIGERATED COUNTER SMART 1160 -18-22°C

Model COUSM116BT
Code 06635040
  • Refrigerated counter without worktop.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Motor inside the technical compartment.
  • Forced ventilated refrigeration with protected evaporators positioned between the compartments.
  • 60 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
  • Tested with external working environment temperatures up to 43°C, efficiency equivalent to energy class 5.
  • Automatic defrosting with electric resistance.
  • Automatic evaporation of condensate water by means of a copper heat exchanger.
  • Rounded internal corners and removable parts to facilitate cleaning.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 288
Details
total electric kW 0.49
Electrical voltage 220-240 V / 50 Hz
Preservation
Range -18/-22 °C
Gas R290
Energy class E
Climate class 5
Electrical consumption (kWh/year) 2774
Useful net volume 192
Dimensions (mm) 1160x700x860
Absorbed power (W) 490
Absorbed power (A) 1.7
Electrical power (Volt/Ph/Hz) 230/1/50
Package dimensions (mm) 1370x750x1100
Net weight (kg) 97
Gross weight (kg) 120
Measurements
Width 1160
Depth 700
Height 860
Weight 97
Volume 0.698
Package
Package width 1370
Package depth 750
Package height 1100
Package weight 120
Package volume 1.13

Dimensions

Dimensions
