REFRIGERATED COUNTER 1740 0+8°C
Download the image
Refrigerated Counters - 3 doors - Counters

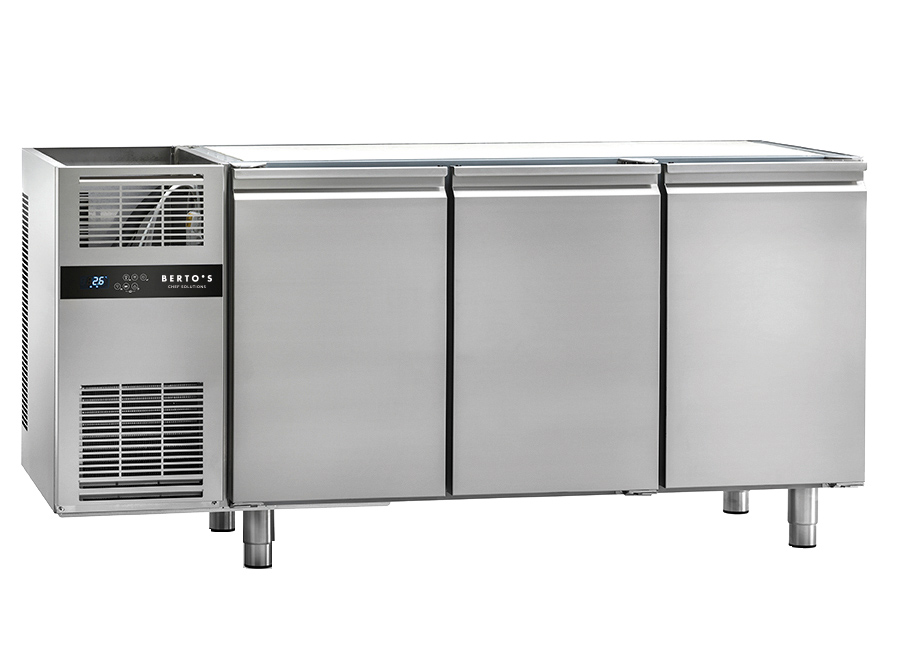

REFRIGERATED COUNTER 1740 0+8°C

Model COU174TN
Code 06640040
  • Refrigerated counter without worktop.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Motor inside the technical compartment.
  • Forced ventilated refrigeration with protected evaporators positioned between the compartments.
  • 60 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
  • Tested with external working environment temperatures up to 43°C, efficiency equivalent to energy class 5.
  • Automatic defrosting with compressor cut off in the 0 /+8°C version.
  • Automatic defrosting with electric resistance in the -2 /+8°C version.
  • Automatic evaporation of condensate water by means of a copper heat exchanger.
  • Rounded internal corners and removable parts to facilitate cleaning.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 0.21
Electrical voltage 220-240 V / 50 Hz
Preservation
Range 0/+8 °C
Gas R290
Energy class A
Climate class 5
Electrical consumption (kWh/year) 577
Useful net volume 288

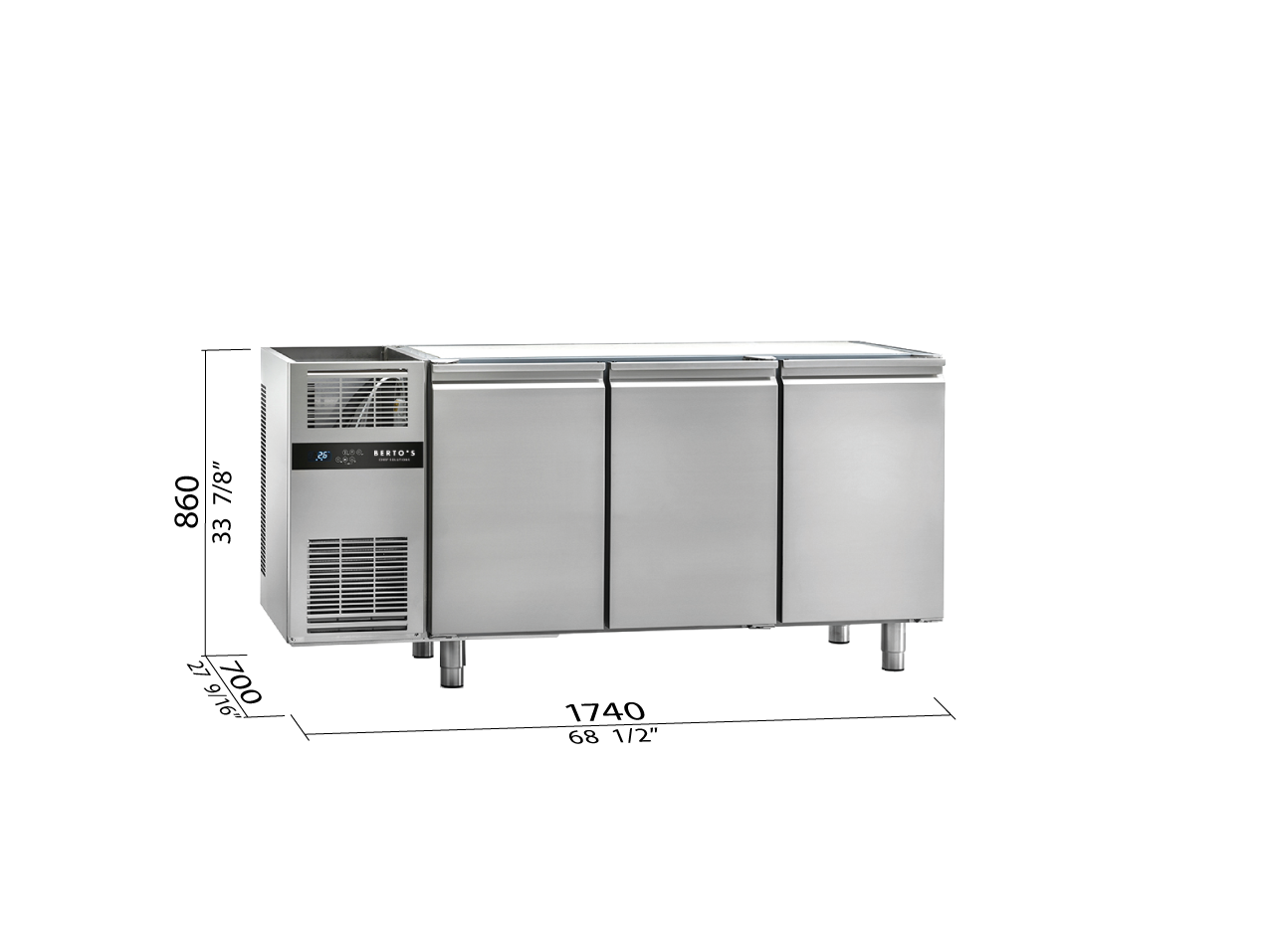

Dimensions (mm) 1740x700x860
Absorbed power (W) 215
Absorbed power (A) 1.32
Electrical power (Volt/Ph/Hz) 230/1/50
Package dimensions (mm) 1800x750x1100
Net weight (kg) 132
Gross weight (kg) 160
Measurements
Width 1740
Depth 700
Height 860
Weight 132
Volume 1.05
Package
Package width 1800
Package depth 750
Package height 1100
Package weight 160
Package volume 1.48

Dimensions

Dimensions
